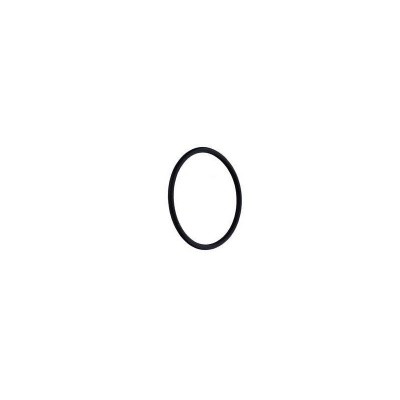

O-ring OR0759017/151 BFT Abrasive Waterjet Parts In Stock

Short Description:

OR0759017/151
O-ring,BFT Abrasive Waterjet Parts
Recommended for: BFT, BHDT, Maximator, STM
Alternative code (cross code): MJ0040112, 4100705
Weight: 0.001 kg.
Working pressure: 4137 bar
Material: Rubber

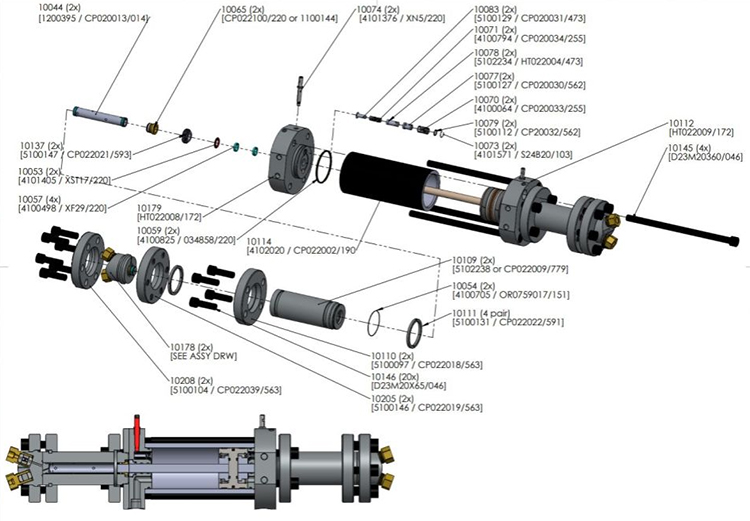

Technical documentation: High-pressure cylinder

Where is it located (in which unit, in which part of the equipment):
Element of the high-pressure pump intensifier.
What is the function (what is it for, what role):
Serves for additional fixation of the high-pressure cylinder.

INQUIRY

Details

O-ring OR0759017/151 BFT Abrasive Waterjet Parts In Stock

The BFT OR0759017/151 is a genuine high-pressure O-ring with an inner diameter of 75.92 mm and a cross-section thickness of 1.78 mm, weighing just 0.001 kg, designed to seal the cylinder assembly of BFT Pump-Good-Quality-Natural-Materials-Water-Jet-Cutter-For-Sale-p.html target='_blank'>Intensifier Pumps under pressures up to 4,137 bar.

Technical Specifications
Part Number: OR0759017/151
BFT Cross-Reference: 4100705
STM Cross-Reference: HD400034
Alternate Reference: 106676
Dimensions: 75.92 mm ID × 1.78 mm CS
Material: High-grade rubber
Net Weight: 0.001 kg
Operating Pressure: Up to 4,137 bar
