Water Jet Cnc Machine refers to a high-pressure water jet cutting technology that uses a cantilever mechanical structure and combines abrasives. This equipment combines the kinetic energy of high-pressure water jets and the grinding effect of abrasives, and can efficiently cut a variety of hard materials (such as metals, stones, composite materials, etc.).
| Model | KD1015 | KD2015 | KD3015 | KD3020 | KD4018 | |
| Structure |
Cantilever |
|||||
|
Cutting Table Size |
1200*1700mm | 2200*1700mm | 3200*1700mm | 3200*2200mm | 4200*2000mm | |
| Stroke | X axis | 1000mm | 2000mm | 3000mm | 3000mm | 4000mm |
| Y axis | 1500mm | 1500mm | 1500mm | 2000mm | 1800mm | |
| Z axis | 130mm | 130mm | 130mm | 130mm | 130mm | |
|
Accuracy |
Cutting |
±0.1mm |
||||
| Repeatability |
±0.05mm |
|||||
| Traverse Speed |
6000-15000mm/min |
|||||
|
Power Supply |
220v/380v/415v,50/60Hz | |||||
| Material | Thickness | Orifice | 320Mpa | 380Mpa | 420Mpa |
|
Aluminum |
6mm |
0.33mm |
400-520mm/min | 460-590mm/min | 500-580mm/min |
| 13mm | 300-380mm/min | 350-420mm/min | 400-510mm/min | ||
| 19mm | 220-280mm/min | 260-380mm/min | 300-420mm/min | ||
|
Stainless STeel |
6mm | 200-260mm/min | 240-310mm/min | 260-350mm/min | |
| 13mm | 80-120mm/min | 100-150mm/min | 125-180mm/min | ||
| 20mm | 50-65mm/min | 70-90mm/min | 100-120mm/min | ||
| 30mm | 15-25mm/min | 30-40mm/min | 40-50mm/min | ||
|
Glass |
6mm | 1200-1400mm/min | 1600-1900mm/min | 2100-2300mm/min | |
| 10mm | 600-700mm/min | 700-800mm/min | 820-900mm/min | ||
| 20mm | 330-400mm/min | 400-500mm/min | 600-800mm/min | ||
|
Marble |
10mm | 1000-1200mm/min | 1200-1400mm/min | 1350-1550mm/min | |
| 20mm | 400-500mm/min | 600-700mm/min | 750-850mm/min | ||
| 30mm | 220-300mm/min | 310-380mm/min | 400-480mm/min | ||
| 50mm | 70-90mm/min | 100-120mm/min | 130-150mm/min | ||
| Ceramic Tile | 15mm | 1200-1400mm/min | 1400-1500mm/min | 1600-1800mm/min | |
|
Bronze |
5mm | 500-600mm/min | 700-800mm/min | 900-1000mm/min | |
| 15mm | 190-220mm/min | 220-300mm/min | 330-400mm/min | ||
| 30mm | 80-100mm/min | 100-120mm/min |
120-150mm/min |
High-pressure water jet: water is pressurized by an ultra-high pressure (usually the pressure can reach 300-600 MPa) to form a high-speed jet.
Abrasive addition: abrasives (such as pomegranate sand, aluminum oxide, etc.) are mixed in the high-pressure water flow to form a water-sand mixed jet to enhance cutting ability.

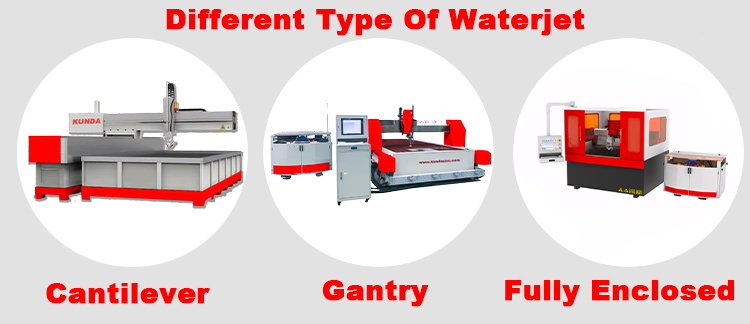

Cantilever structure: The equipment adopts a cantilever mechanical design, and the cantilever can move flexibly, which is suitable for cutting large-sized workpieces or complex shapes.

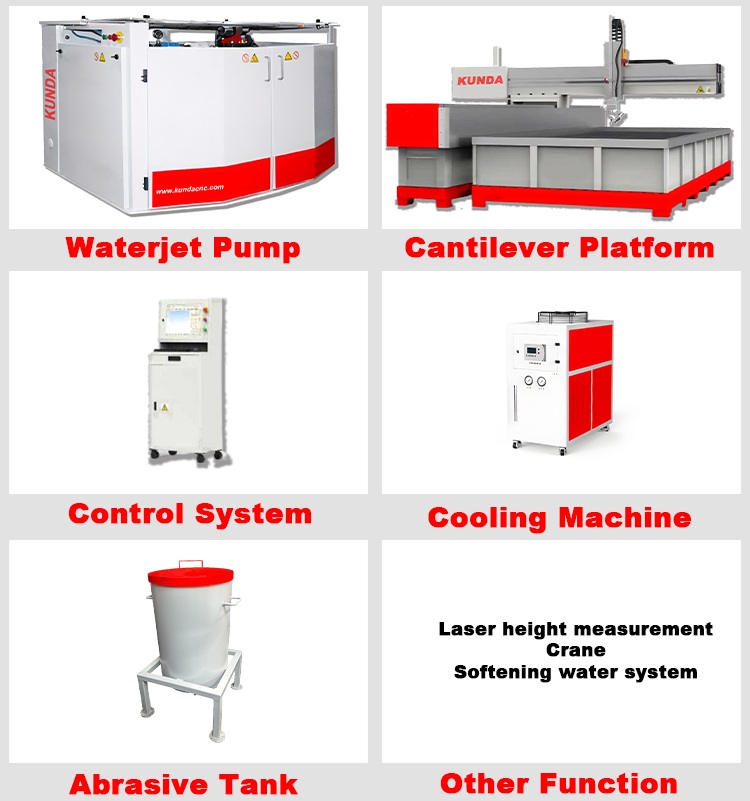

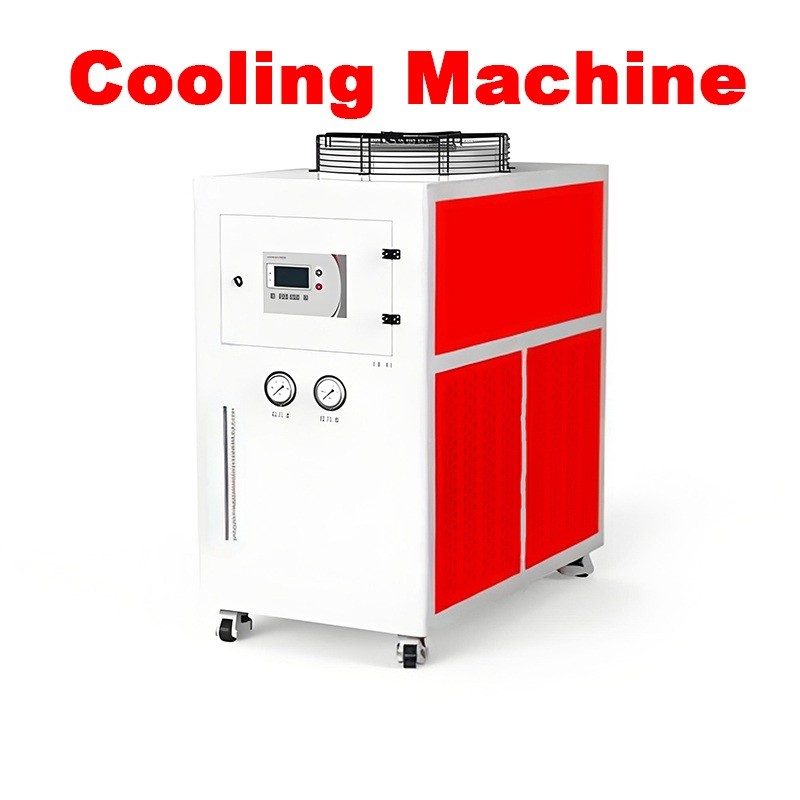

2. Equipment composition Water Jet Cnc Machine

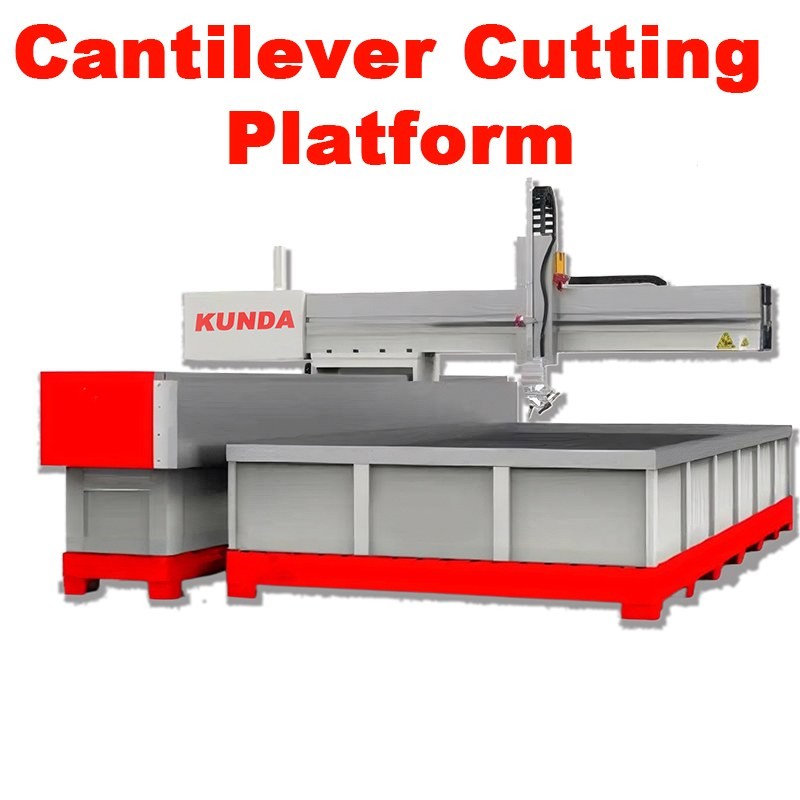

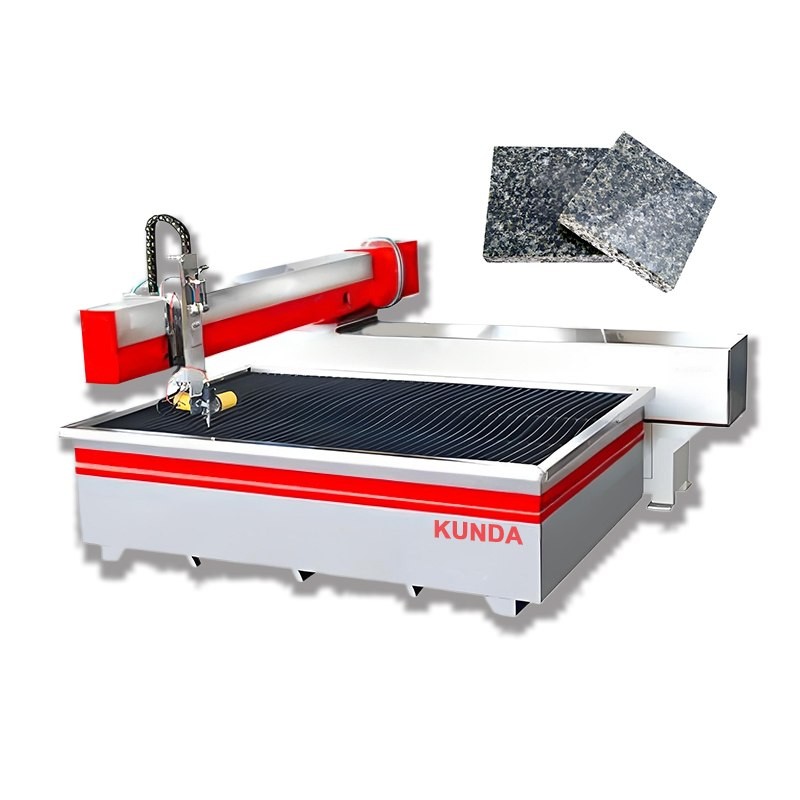

Cantilever system: provides lateral and longitudinal freedom of movement, usually controlled by a numerical control system (CNC) to achieve high-precision cutting paths.

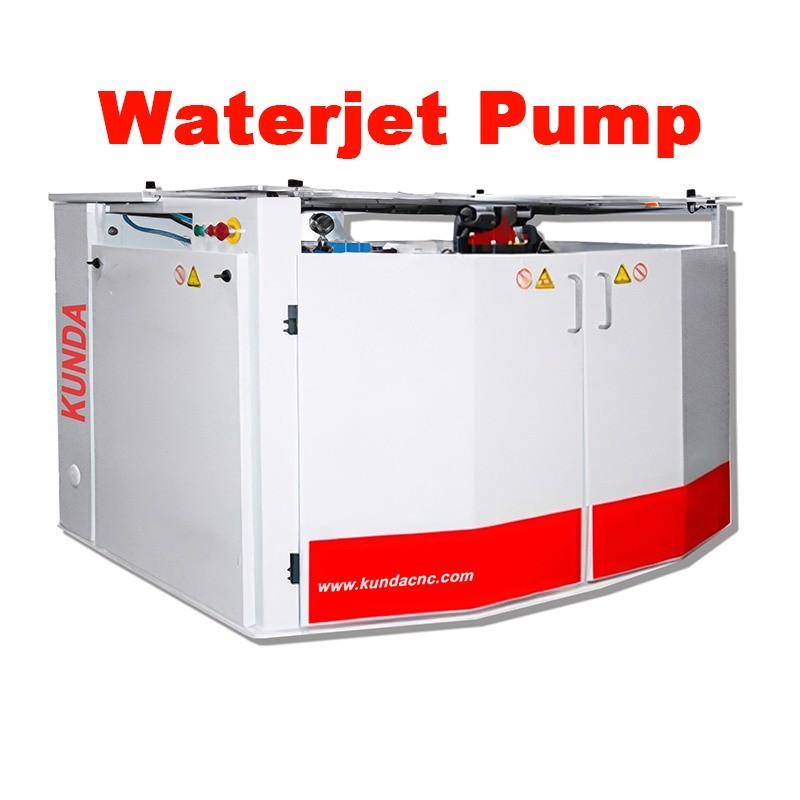

High-pressure Pump: core component, providing ultra-high pressure power for water jets.

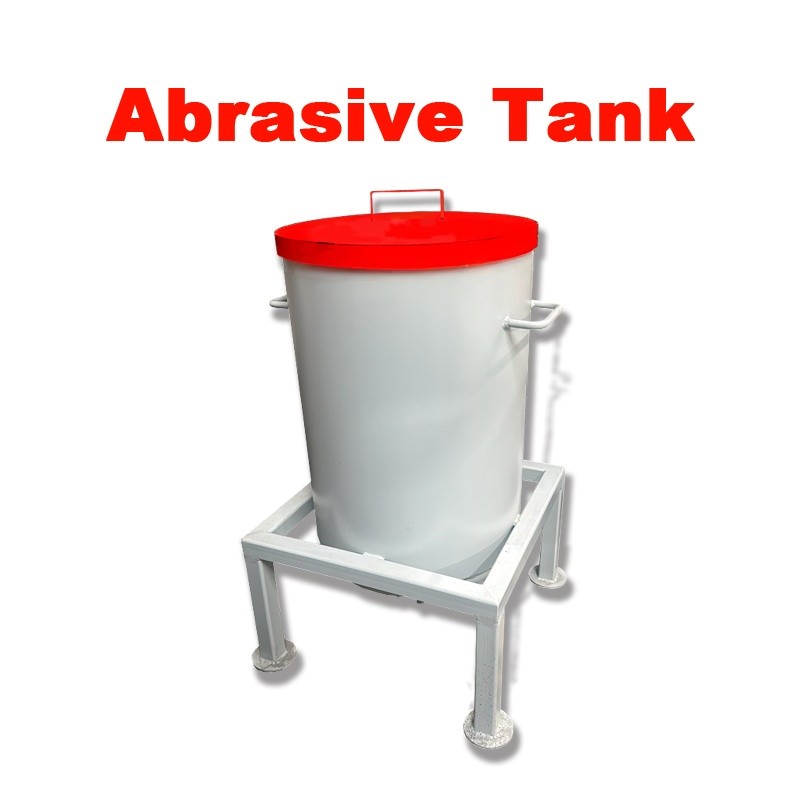

Abrasive supply system: store and precisely control the mixing ratio of abrasives.
Cutting head: integrated nozzle (gem nozzle or diamond nozzle), adjust the water-sand mixed jet.
Control system: control cutting path, speed and pressure through programming or software.
3. Technical advantages Water Jet Cnc Machine

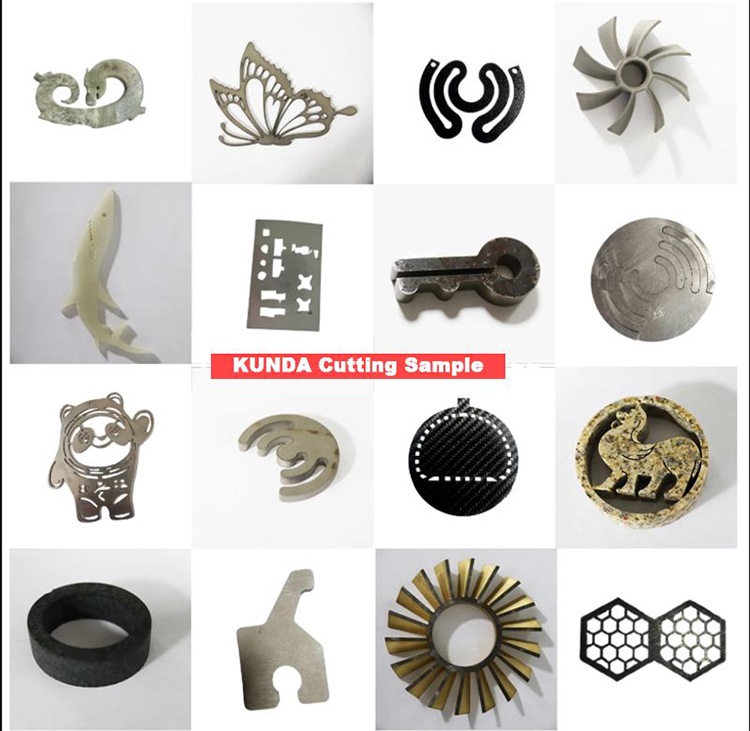

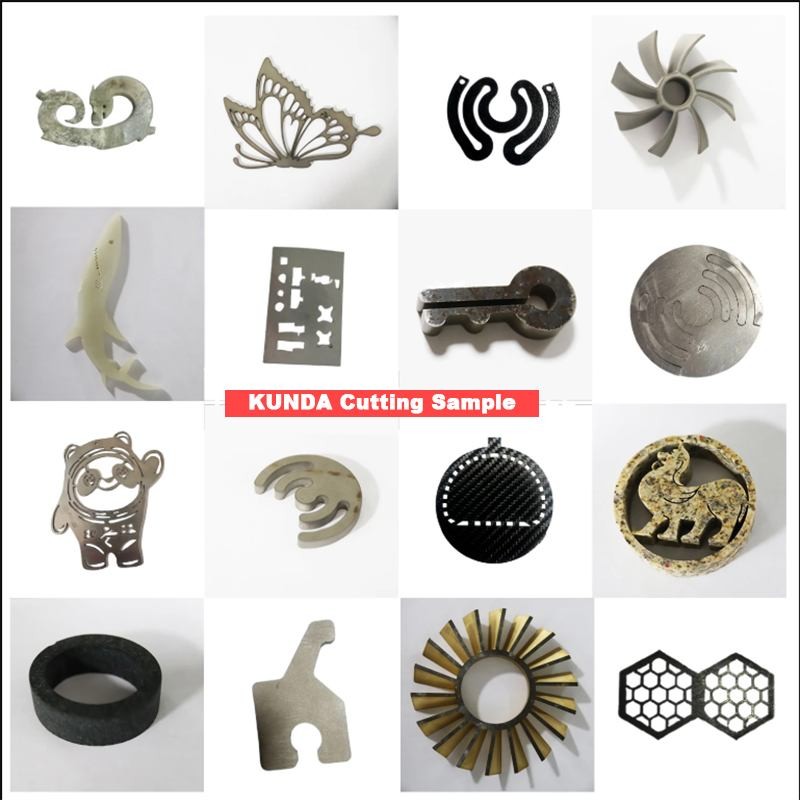

Wide applicability: can cut metal (steel, titanium alloy), stone, glass, ceramic, composite materials, etc.
Cold cutting: no heat affected zone, avoiding material deformation or performance change.
High precision: CNC system supports complex contour cutting with a tolerance of up to ±0.1mm.
Environmental protection and energy saving: no harmful gas or dust (water circulation system is required).
Flexibility: cantilever structure is suitable for large workpieces or small space operations.
