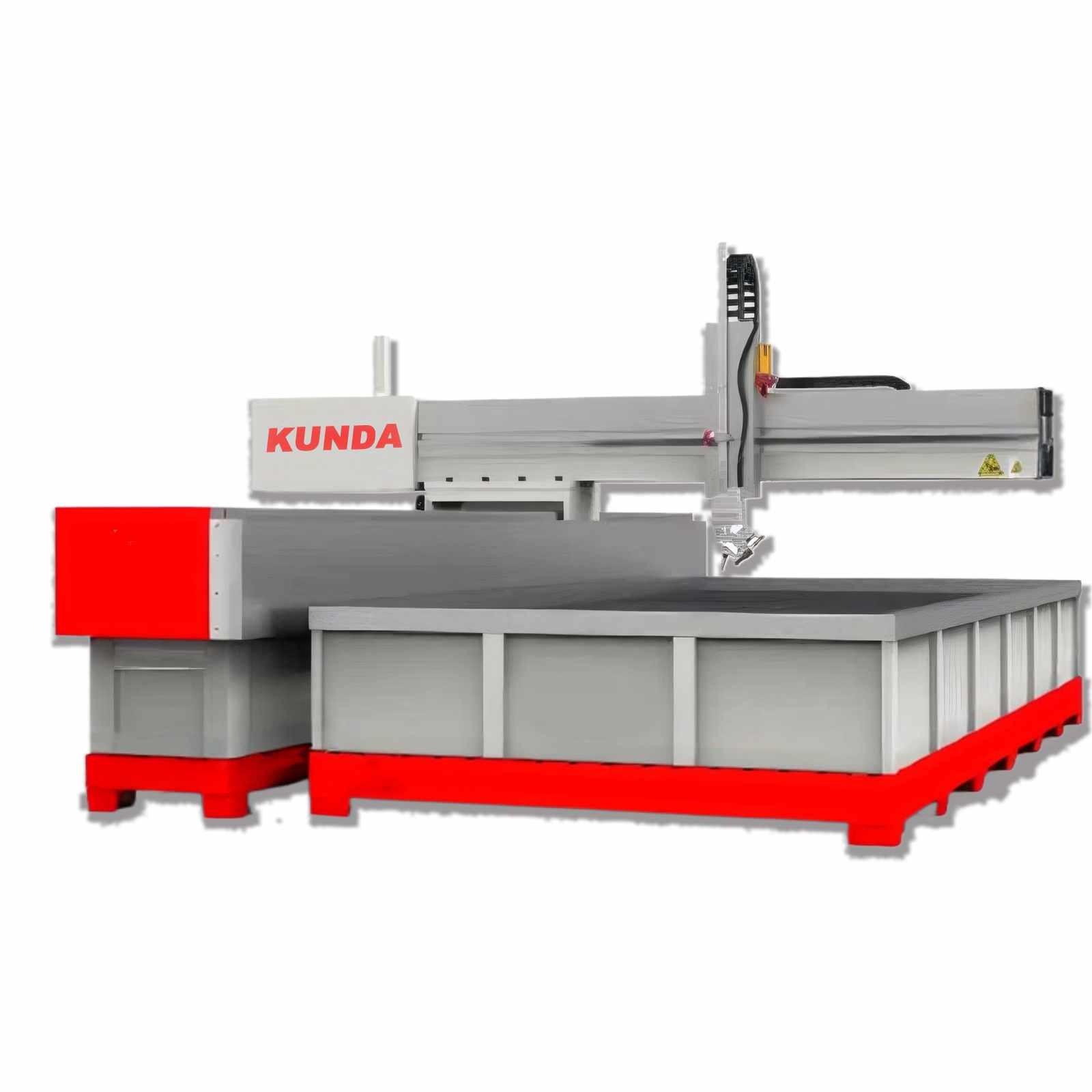

50000 Psi Water Jet 1015 Cnc Cantilever Water Jet Cutting Machine Price
50000 Psi Water Jet 1015 Cnc Cantilever Water Jet Cutting Machine Price
50000 Psi Water Jet refers to a high-pressure water jet cutting technology that uses a cantilever mechanical structure and combines abrasives. This equipment combines the kinetic energy of high-pressure water jets and the grinding effect of abrasives, and can efficiently cut a variety of hard materials (such as metals, stones, composite materials, etc.).
Model
KD1015
KD2015
KD3015
KD3020
KD4018
Structure
Cantilever
Cutting Table Size
1200*1700mm
2200*1700mm
3200*1700mm
3200*2200mm
4200*2000mm
Stroke
X axis
1000mm
2000mm
3000mm
3000mm
4000mm
Y axis
1500mm
1500mm
1500mm
2000mm
1800mm
Z axis
130mm
130mm
130mm
130mm
130mm
Accuracy
Cutting
±0.1mm
Repeatability
±0.05mm
Traverse Speed
6000-15000mm/min
Power Supply
220v/380v/415v,50/60Hz
1. Basic principles 60 000 Psi Waterjet Price
Material
Thickness
Orifice
320Mpa
380Mpa
420Mpa
Aluminum
6mm
0.33mm
400-520mm/min
460-590mm/min
500-580mm/min
13mm
300-380mm/min
350-420mm/min
400-510mm/min
19mm
220-280mm/min
260-380mm/min
300-420mm/min
Stainless Steel
6mm
200-260mm/min
240-310mm/min
260-350mm/min
13mm
80-120mm/min
100-150mm/min
125-180mm/min
20mm
50-65mm/min
70-90mm/min
100-120mm/min
30mm
15-25mm/min
30-40mm/min
40-50mm/min
Glass
6mm
1200-1400mm/min
1600-1900mm/min
2100-2300mm/min
10mm
600-700mm/min
700-800mm/min
820-900mm/min
20mm
330-400mm/min
400-500mm/min
600-800mm/min
Marble
10mm
1000-1200mm/min
1200-1400mm/min
1350-1550mm/min
20mm
400-500mm/min
600-700mm/min
750-850mm/min
30mm
220-300mm/min
310-380mm/min
400-480mm/min
50mm
70-90mm/min
100-120mm/min
130-150mm/min
Ceramic Tile
15mm
1200-1400mm/min
1400-1500mm/min
1600-1800mm/min
Bronze
5mm
500-600mm/min
700-800mm/min
900-1000mm/min
15mm
190-220mm/min
220-300mm/min
330-400mm/min
30mm
80-100mm/min
100-120mm/min
120-150mm/min
High-pressure water jet: water is pressurized by an ultra-high pressure (usually the pressure can reach 300-600 MPa) to form a high-speed jet.
Abrasive addition: abrasives (such as pomegranate sand, aluminum oxide, etc.) are mixed in the high-pressure water flow to form a water-sand mixed jet to enhance cutting ability.

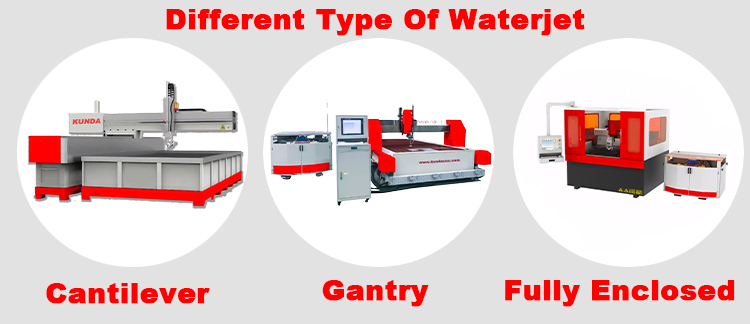

Cantilever structure: The equipment adopts a cantilever mechanical design, and the cantilever can move flexibly, which is suitable for cutting large-sized workpieces or complex shapes.

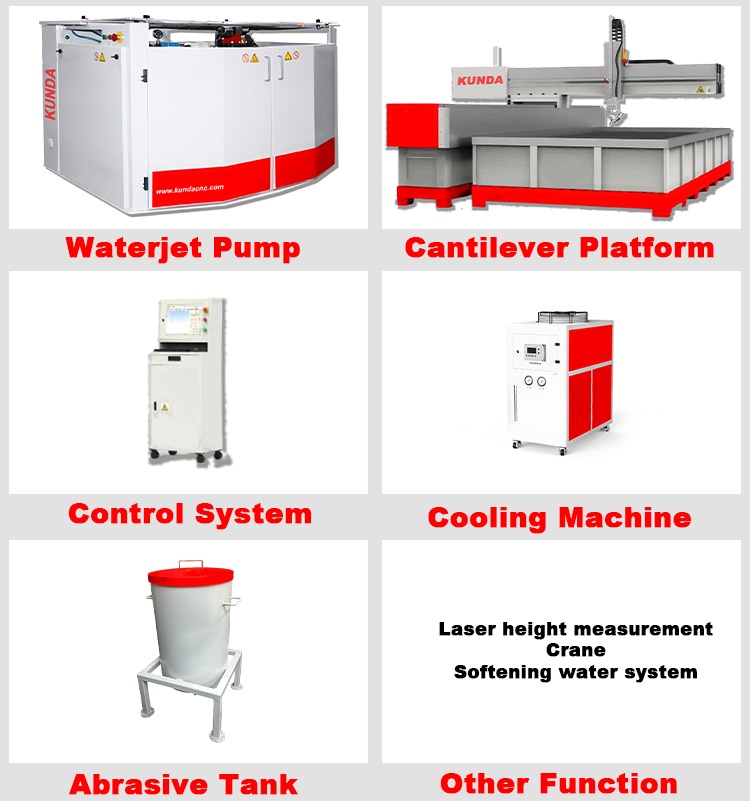

2. Equipment composition 60 000 Psi Waterjet Price

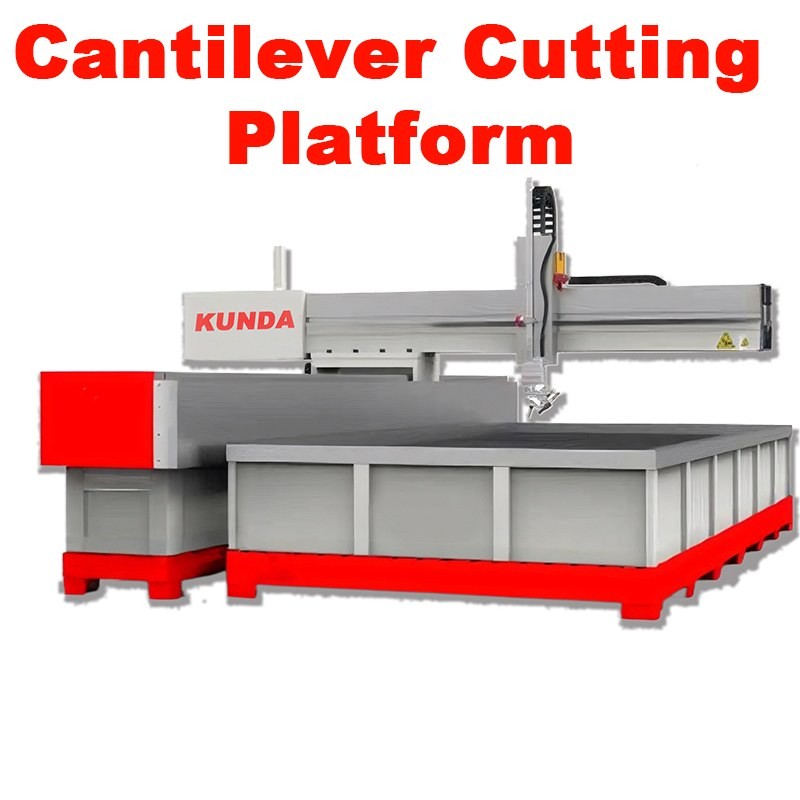

Cantilever system: provides lateral and longitudinal freedom of movement, usually controlled by a numerical control system (CNC) to achieve high-precision cutting paths.

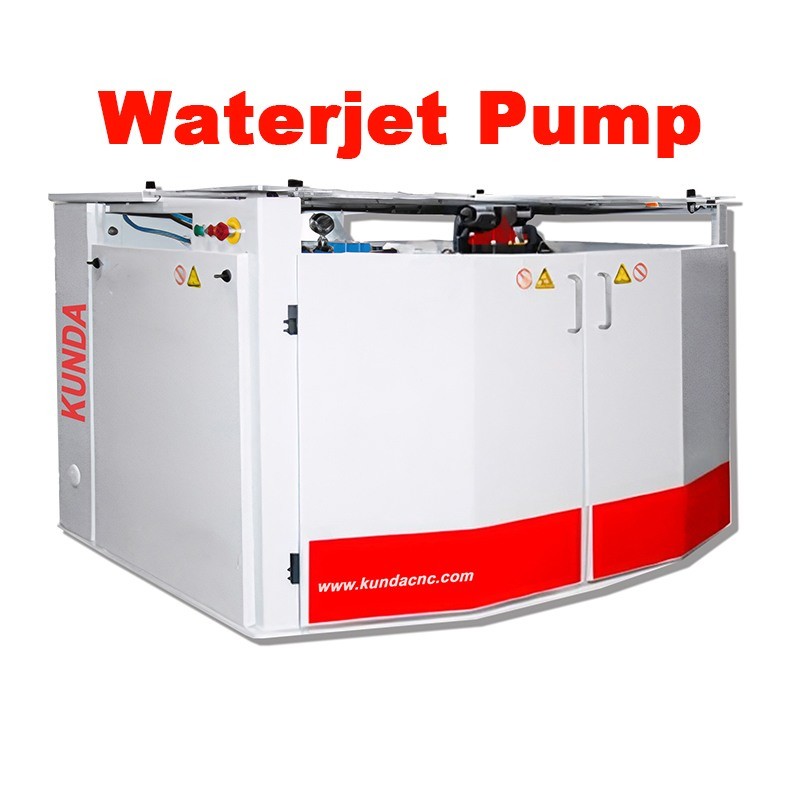

High-pressure Pump: core component, providing ultra-high pressure power for water jets.

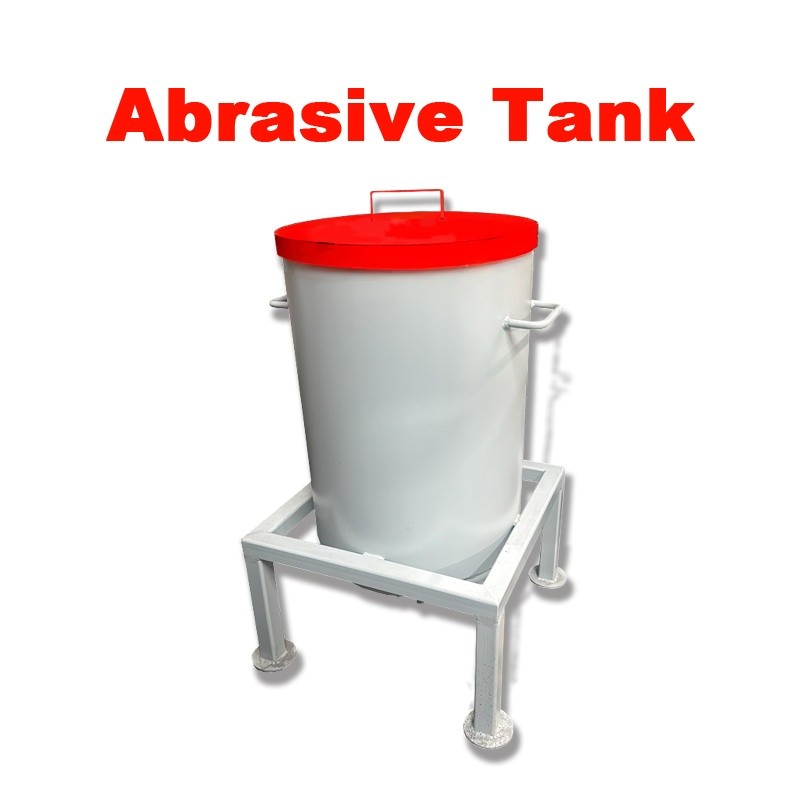

Abrasive supply system: store and precisely control the mixing ratio of abrasives.

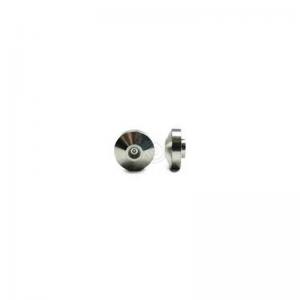

Cutting head: integrated nozzle (gem nozzle or diamond nozzle), adjust the water-sand mixed jet.
Control system: control cutting path, speed and pressure through programming or software.
3. Technical advantages 60 000 Psi Waterjet Price

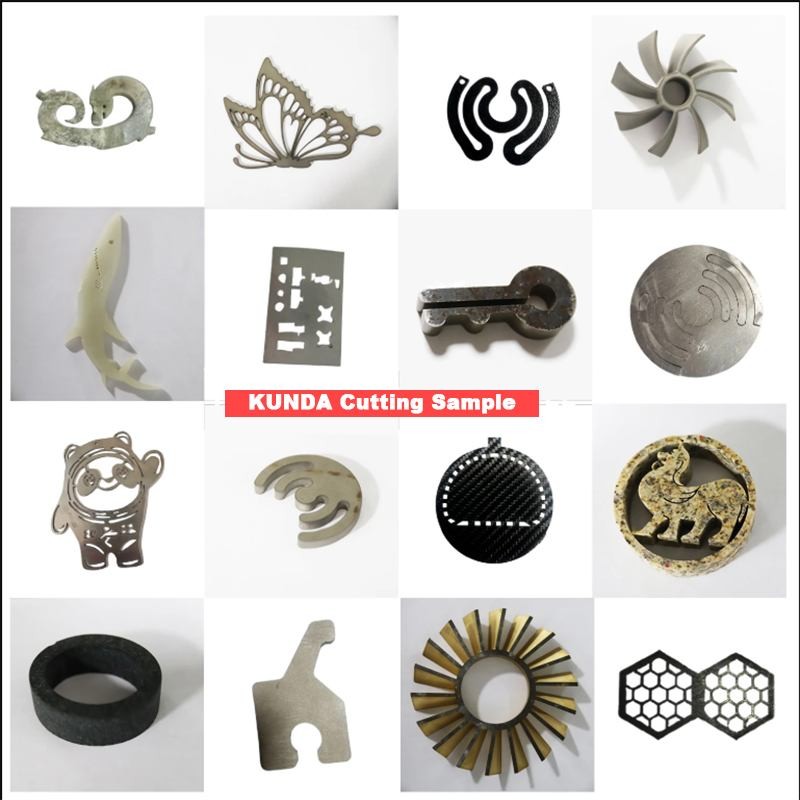

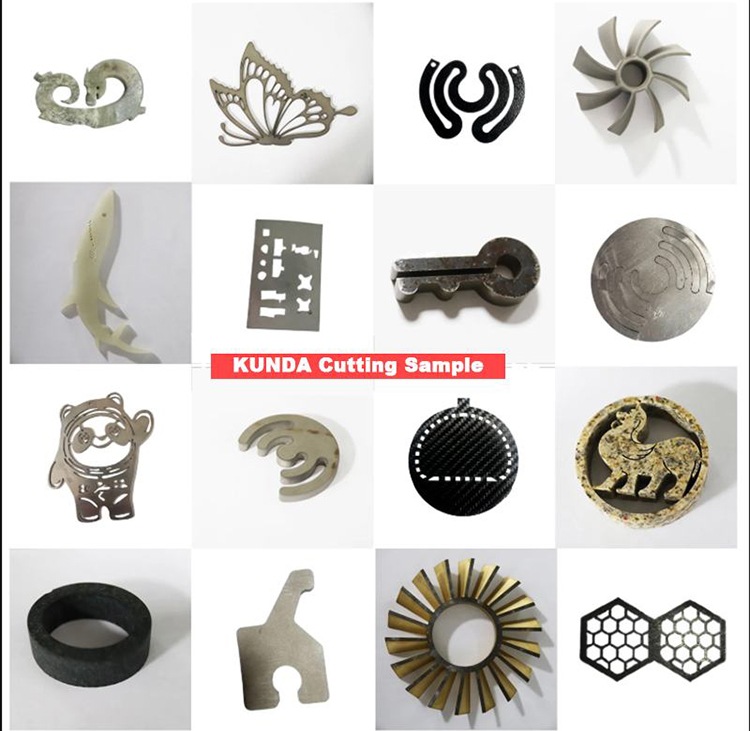

Wide applicability: can cut metal (steel, titanium alloy), stone, glass, ceramic, composite materials, etc.
Cold cutting: no heat affected zone, avoiding material deformation or performance change.
High precision: CNC system supports complex contour cutting with a tolerance of up to ±0.1mm.
Environmental protection and energy saving: no harmful gas or dust (water circulation system is required).
Flexibility: cantilever structure is suitable for large workpieces or small space operations.
4. Application areas 60 000 Psi Waterjet Price
Industrial manufacturing: aerospace parts, automotive accessories, mechanical processing.
Architectural decoration: stone carving, glass art cutting.
Energy industry: pipeline cutting, wind turbine blade trimming.
More details,please contact us!
