Cheapest Waterjet Cutter refers to a high-pressure water jet cutting technology that uses a cantilever mechanical structure and combines abrasives. This equipment combines the kinetic energy of high-pressure water jets and the grinding effect of abrasives, and can efficiently cut a variety of hard materials (such as metals, stones, composite materials, etc.).

Model		KD1015	KD2015	KD3015	KD3020	KD4018
Structure		Cantilever
Cutting Table Size		1200*1700mm	2200*1700mm	3200*1700mm	3200*2200mm	4200*2000mm
Stroke	X axis	1000mm	2000mm	3000mm	3000mm	4000mm
	Y axis	1500mm	1500mm	1500mm	2000mm	1800mm
	Z axis	130mm	130mm	130mm	130mm	130mm
Accuracy	Cutting	±0.1mm
	Repeatability	±0.05mm
Traverse Speed		6000-15000mm/min
Power Supply		220v/380v/415v,50/60Hz

Material	Thickness	Orifice	320Mpa	380Mpa	420Mpa
Aluminum	6mm	0.33mm	400-520mm/min	460-590mm/min	500-580mm/min
	13mm		300-380mm/min	350-420mm/min	400-510mm/min
	19mm		220-280mm/min	260-380mm/min	300-420mm/min
Stainless STeel	6mm		200-260mm/min	240-310mm/min	260-350mm/min
	13mm		80-120mm/min	100-150mm/min	125-180mm/min
	20mm		50-65mm/min	70-90mm/min	100-120mm/min
	30mm		15-25mm/min	30-40mm/min	40-50mm/min
Glass	6mm		1200-1400mm/min	1600-1900mm/min	2100-2300mm/min
	10mm		600-700mm/min	700-800mm/min	820-900mm/min
	20mm		330-400mm/min	400-500mm/min	600-800mm/min
Marble	10mm		1000-1200mm/min	1200-1400mm/min	1350-1550mm/min
	20mm		400-500mm/min	600-700mm/min	750-850mm/min
	30mm		220-300mm/min	310-380mm/min	400-480mm/min
	50mm		70-90mm/min	100-120mm/min	130-150mm/min
Ceramic Tile	15mm		1200-1400mm/min	1400-1500mm/min	1600-1800mm/min
Bronze	5mm		500-600mm/min	700-800mm/min	900-1000mm/min
	15mm		190-220mm/min	220-300mm/min	330-400mm/min
	30mm		80-100mm/min	100-120mm/min	120-150mm/min

1. Basic principles Cheapest Waterjet Cutter
High-pressure water jet: water is pressurized by an ultra-high pressure (usually the pressure can reach 300-600 MPa) to form a high-speed jet.
Abrasive addition: abrasives (such as pomegranate sand, aluminum oxide, etc.) are mixed in the high-pressure water flow to form a water-sand mixed jet to enhance cutting ability.

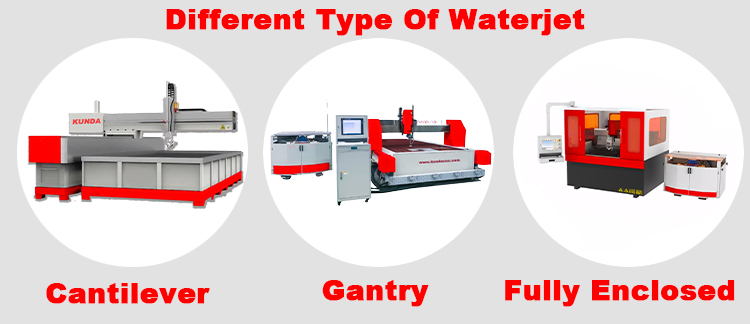

Cantilever structure: The equipment adopts a cantilever mechanical design, and the cantilever can move flexibly, which is suitable for cutting large-sized workpieces or complex shapes.

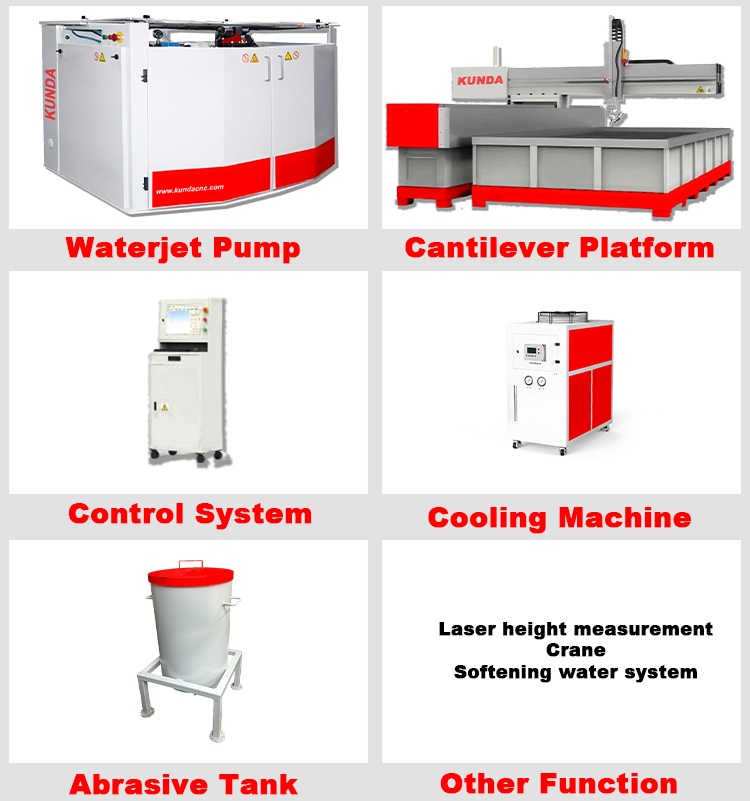

2. Equipment composition Cheapest Waterjet Cutter

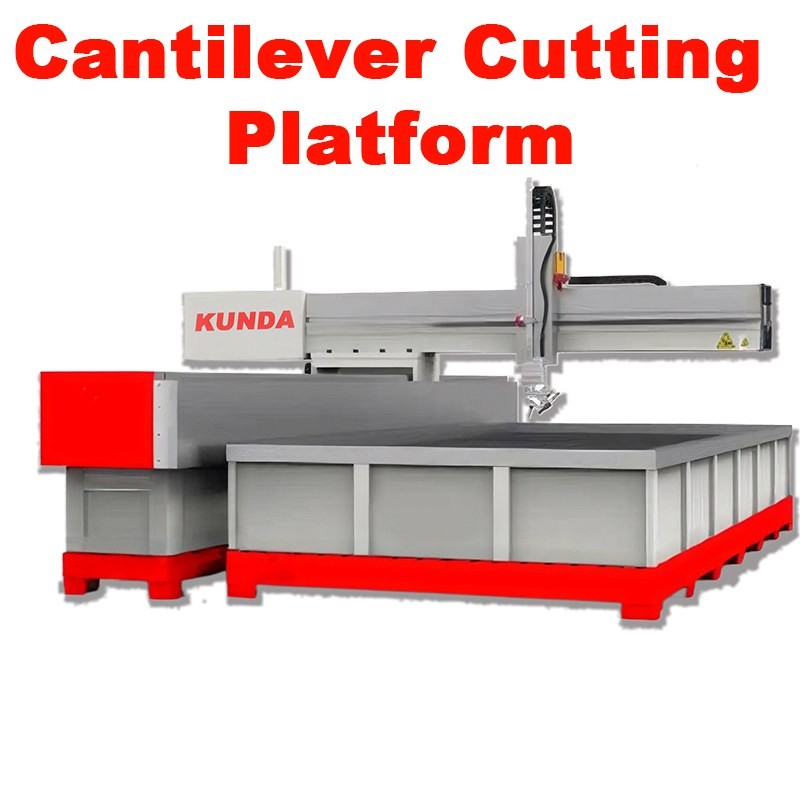

Cantilever system: provides lateral and longitudinal freedom of movement, usually controlled by a numerical control system (CNC) to achieve high-precision cutting paths.

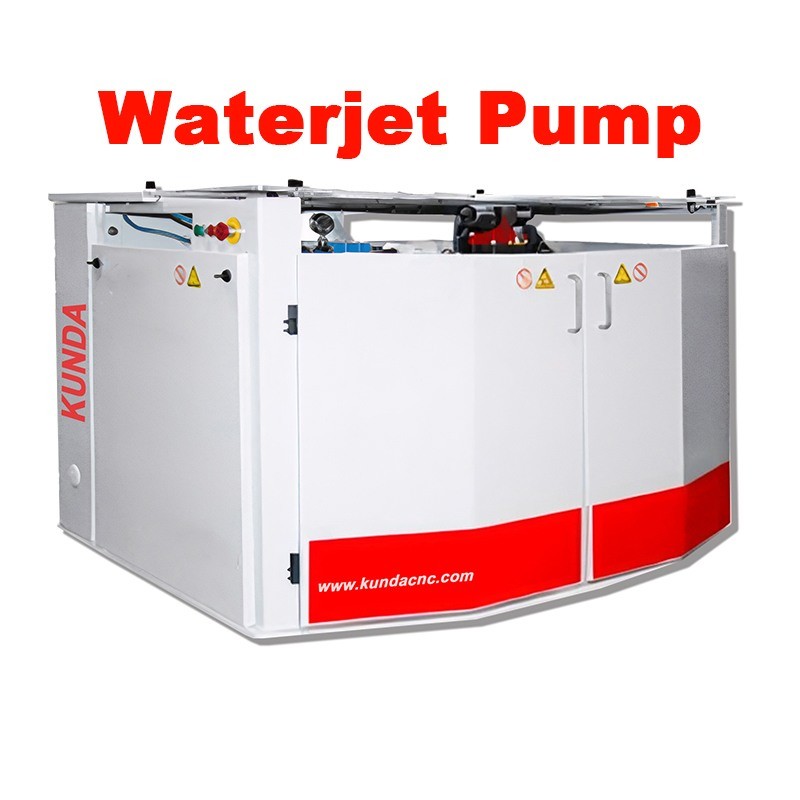

High-pressure Pump: core component, providing ultra-high pressure power for water jets.

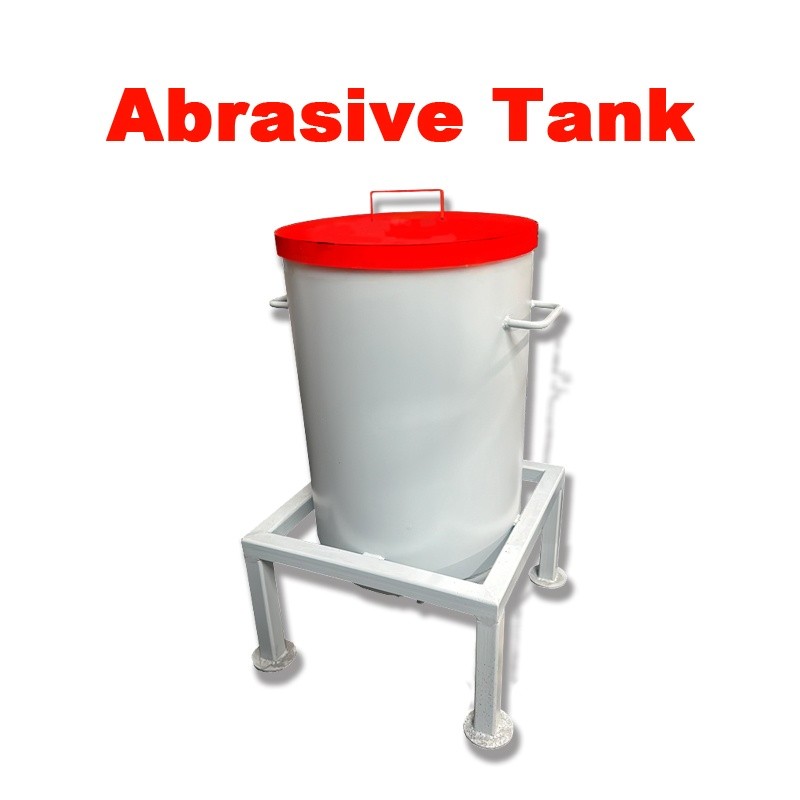

Abrasive supply system: store and precisely control the mixing ratio of abrasives.
Cutting head: integrated nozzle (gem nozzle or diamond nozzle), adjust the water-sand mixed jet.
Control system: control cutting path, speed and pressure through programming or software.
3. Technical advantages Cheapest Waterjet Cutter

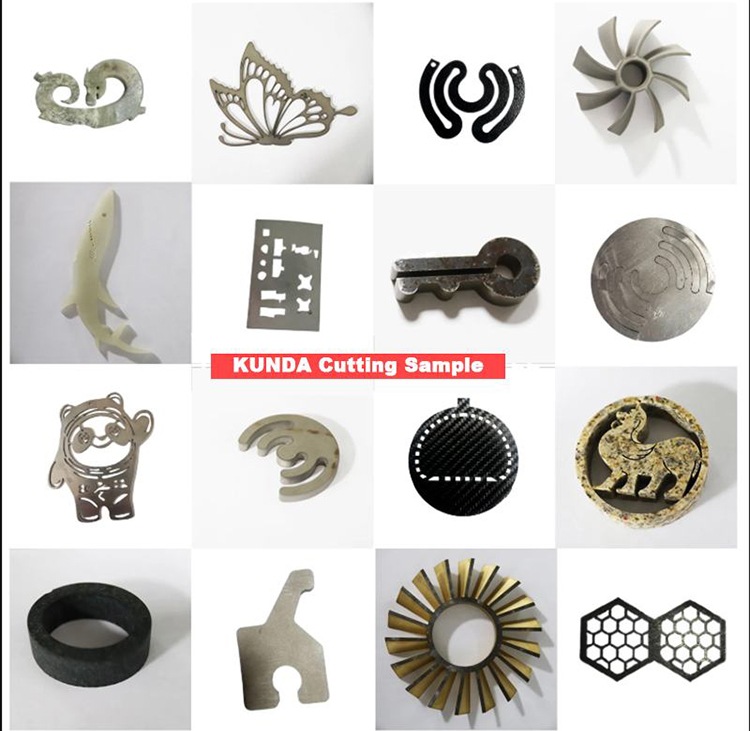

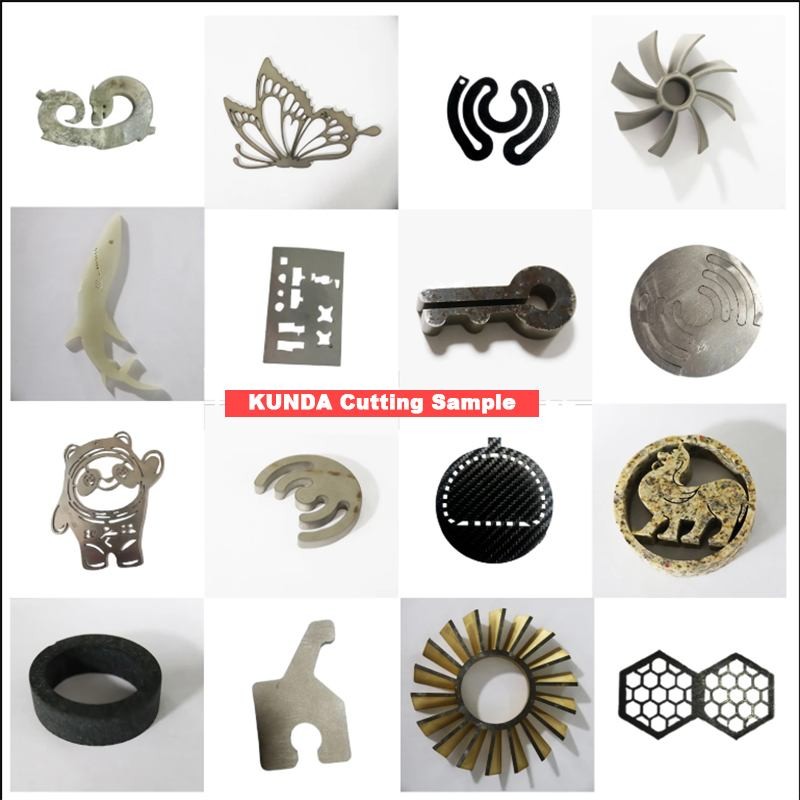

Wide applicability: can cut metal (steel, titanium alloy), stone, glass, ceramic, composite materials, etc.
Cold cutting: no heat affected zone, avoiding material deformation or performance change.
High precision: CNC system supports complex contour cutting with a tolerance of up to ±0.1mm.
Environmental protection and energy saving: no harmful gas or dust (water circulation system is required).
Flexibility: cantilever structure is suitable for large workpieces or small space operations.

More details,please contact us!
