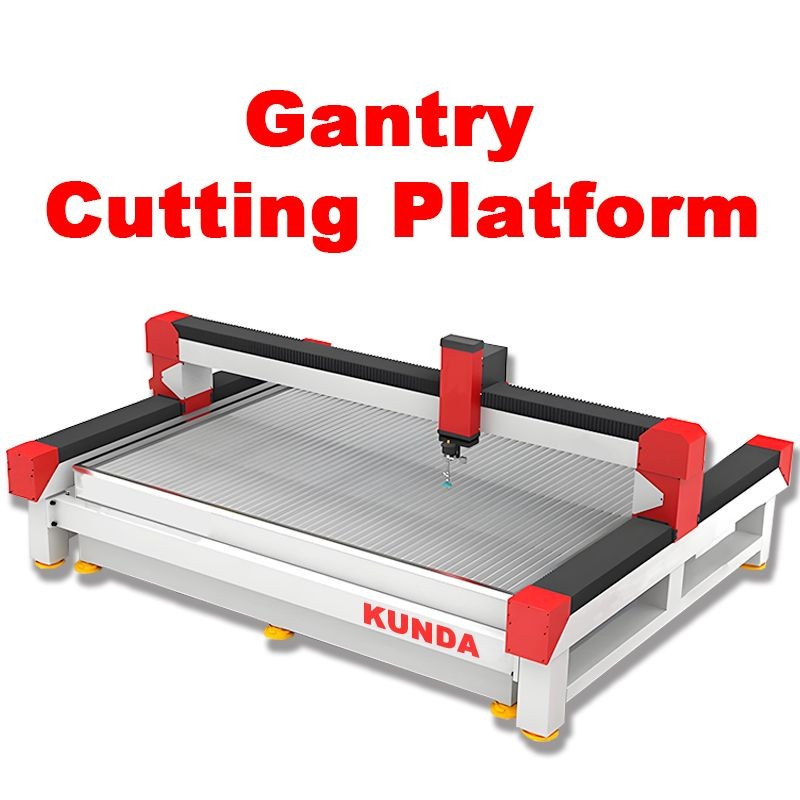

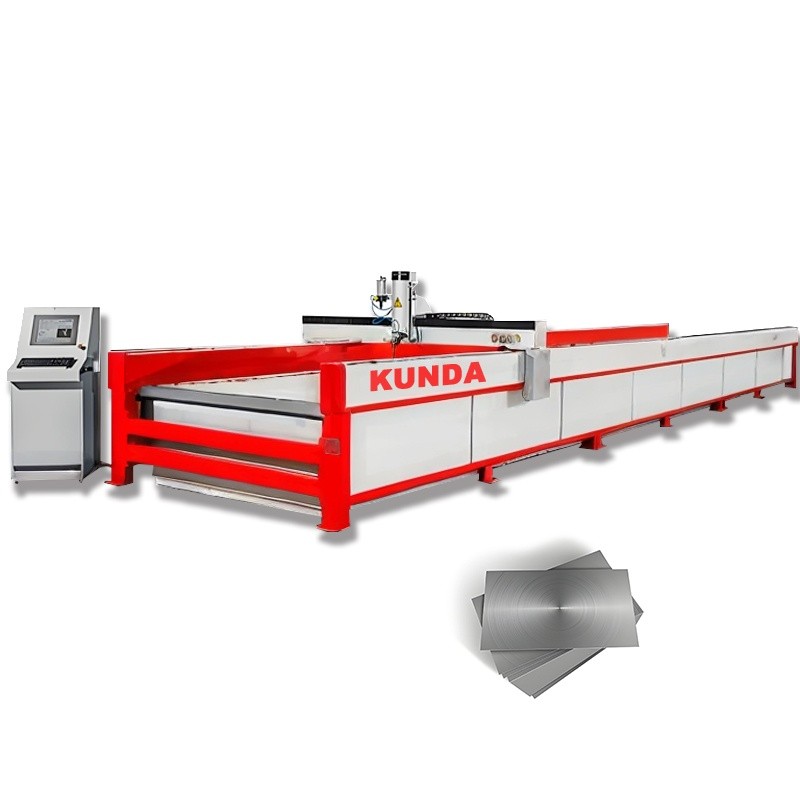

Waterjet-Gantry-Marble-High-Pressure-Cutting-Water-Jet-Cutter-Machine-p.html target='_blank'>Granite Waterjet Gantry Marble High Pressure Cutting Water Jet Cutter Machine

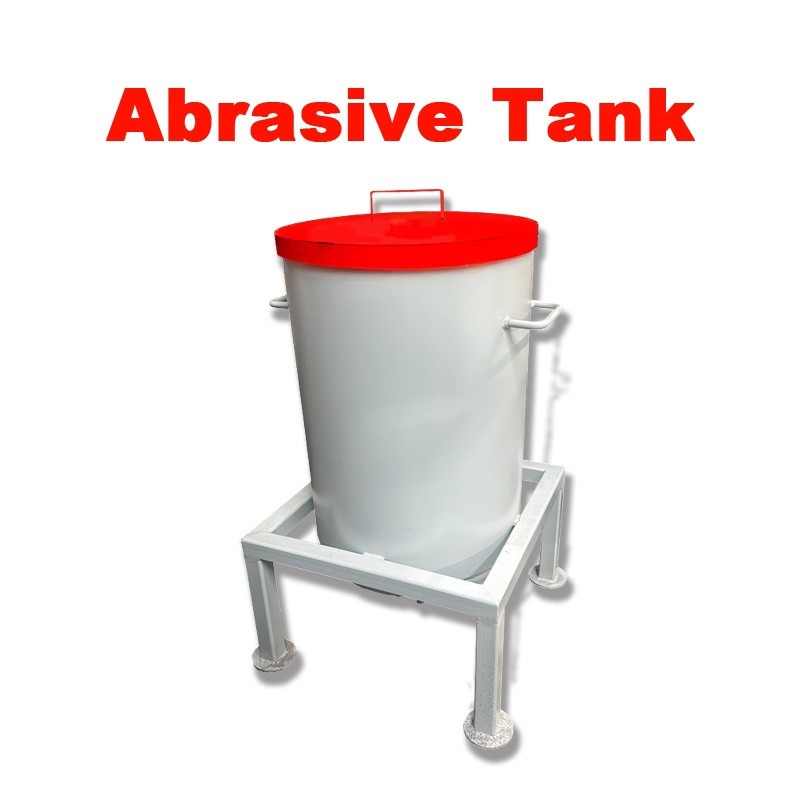

Granite Waterjet is a cutting technology that combines high-pressure Water Jets with abrasive particles. It enhances cutting ability by mixing abrasives such as garnet sand. It is suitable for precision machining of hard materials such as metals and composite materials.

Model		KD1015	KD2015	KD3015	KD3020	KD4020
Structure		Garnet
Cutting Table Size		1200*1700mm	2200*1700mm	3200*1700mm	3200*2200mm	4200*2200mm
Stroke	X axis	1000mm	2000mm	3000mm	3000mm	4000mm
	Y axis	1500mm	1500mm	1500mm	2000mm	2000mm
	Z axis	130mm	130mm	130mm	130mm	130mm
Accuracy	Cutting	±0.1mm
	Repeatability	±0.05mm
Traverse Speed		6000-15000mm/min
Power Supply		220v/380v/415v,50/60Hz

Material	Thickness	Orifice	320Mpa	380Mpa	420Mpa
Aluminum	6mm	0.33mm	400-520mm/min	460-590mm/min	500-580mm/min
	13mm		300-380mm/min	350-420mm/min	400-510mm/min
	19mm		220-280mm/min	260-380mm/min	300-420mm/min
Stainless Steel	6mm		200-260mm/min	240-310mm/min	260-350mm/min
	13mm		80-120mm/min	100-150mm/min	125-180mm/min
	20mm		50-65mm/min	70-90mm/min	100-120mm/min
	30mm		15-25mm/min	30-40mm/min	40-50mm/min
Glass	6mm		1200-1400mm/min	1600-1900mm/min	2100-2300mm/min
	10mm		600-700mm/min	700-800mm/min	820-900mm/min
	20mm		330-400mm/min	400-500mm/min	600-800mm/min
Marble	10mm		1000-1200mm/min	1200-1400mm/min	1350-1550mm/min
	20mm		400-500mm/min	600-700mm/min	750-850mm/min
	30mm		220-300mm/min	310-380mm/min	400-480mm/min
	50mm		70-90mm/min	100-120mm/min	130-150mm/min
Ceramic Tile	15mm		1200-1400mm/min	1400-1500mm/min	1600-1800mm/min
Bronze	5mm		500-600mm/min	700-800mm/min	900-1000mm/min
	15mm		190-220mm/min	220-300mm/min	330-400mm/min
	30mm		80-100mm/min	100-120mm/min	120-150mm/min

Ideal for industries such as construction, architecture, monument carving, and custom stone fabrication, the Granite Waterjet is perfect for creating intricate designs, detailed patterns, and high-quality finishes on granite slabs. Whether you're cutting countertops, sculptures, tiles, or custom stonework, this machine ensures high precision and accuracy, even on thick or complex stone materials. The advanced CNC control system allows operators to easily program cuts and produce intricate shapes, ensuring repeatability and efficiency.

Built for durability and long-term use, the Granite Waterjet features a robust, industrial-grade design capable of withstanding the demands of heavy-duty operations. Its user-friendly interface allows for quick setup and easy operation, reducing downtime and increasing productivity. The low maintenance and energy-efficient operation make this machine a cost-effective solution for stone cutting businesses.

For companies looking to enhance their stone cutting capabilities, the Granite Waterjet offers an ideal combination of precision, versatility, and reliability. This machine is designed to improve workflow, reduce waste, and deliver high-quality results for all types of granite cutting applications, ensuring superior performance and maximum efficiency.

More details,please contact us!
