LP Check Valve Housing SP-72-7 Check Valve Body Waterjet Intensifier Spare Valve Housing

Short Description:

LP Check Valve Housing SP-72-7, Techni Waterjet SP-72-7, SP-72-7 Valve Housing
Technical Specifications
Connection:Low‑pressure (LP) feed‑water circuit
Valve Type:Spring‑loaded disc/poppet
Compatible Poppet :SP‑73‑2 Check Valve Poppet
Compatible Spring:500‑12‑0040 LP Check Valve Spring
Internal Bore:Guides disc travel; per OEM, nominal 20.6 mm (SP‑72‑5 housing)
Operating Pressure:Up to 4 137 bar (60 000 psi)
Temperature Range:–20 °C to +150 °C (typical for stainless‑steel valve bodies)

INQUIRY

Details

LP Check Valve Housing SP-72-7 Check Valve Body Waterjet Intensifier-Assembly-80072333-Good-Quality-Water-Jet-Parts-In-Stock-p.html target='_blank'>Intensifier Spare Valve Housing

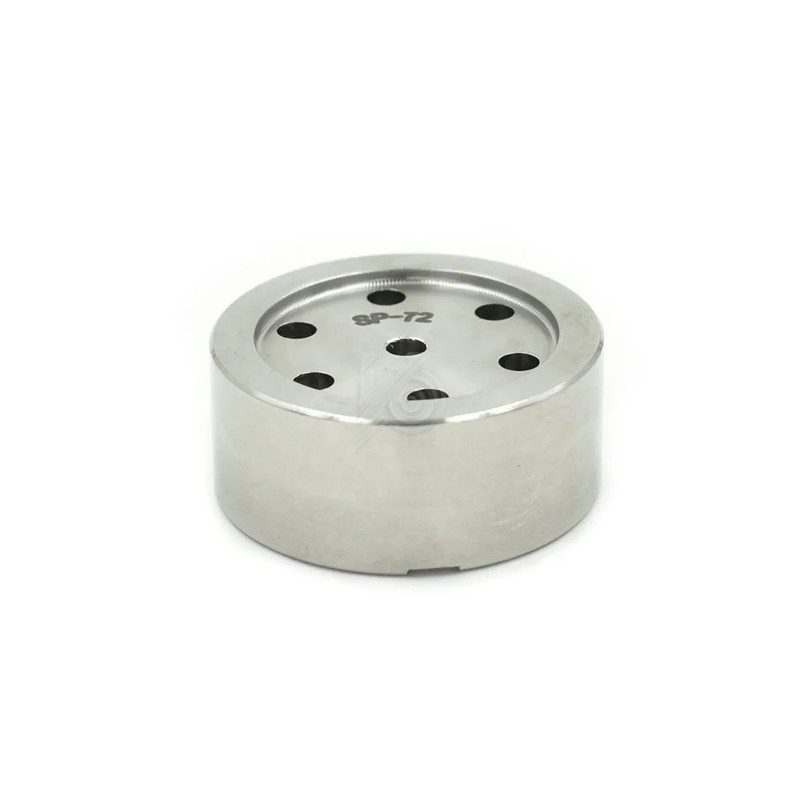

The SP‑72‑7 LP Check Valve Housing (Part number SP‑72‑7, Article No. 12440) is a 316‑grade stainless‑sTeel valve body engineered for the low‑pressure feed circuit of Waterjet Intensifier Pumps, where it houses the Spring-F1000401-220-BFT-Abrasive-Water-Jet-Parts-In-Stock-p.html target='_blank'>Spring‑loaded SP‑73‑2 Poppet and 500‑12‑0040 LP check valve spring to allow one‑way water flow and prevent backflow under cyclic loads up to 4 137 bar.

Technical Specifications
Connection:Low‑pressure (LP) feed‑water circuit
Valve Type:Spring‑loaded disc/poppet
Compatible Poppet :SP‑73‑2 Check Valve Poppet
Compatible Spring:500‑12‑0040 LP Check Valve Spring
Internal Bore:Guides disc travel; per OEM, nominal 20.6 mm (SP‑72‑5 housing)
Operating Pressure:Up to 4 137 bar (60 000 psi)
Temperature Range:–20 °C to +150 °C (typical for stainless‑steel valve bodies)
Surface Finish:Machined Ra ≤ 0.4 µm for Sealing surfaces
