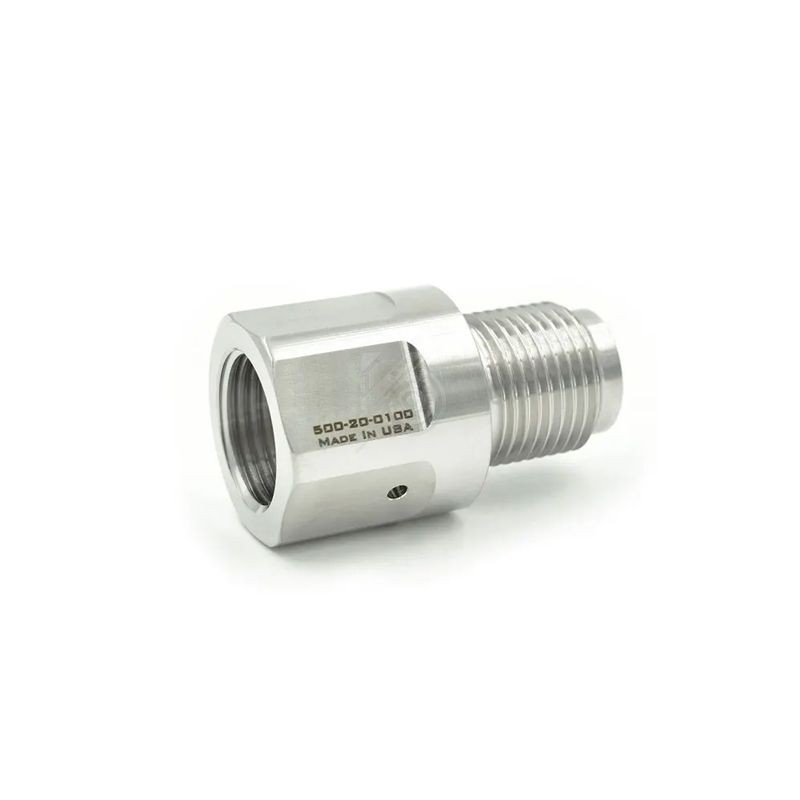

Outlet Body 500-20-0100 Water Jet Pump Parts In Stock

Short Description:

Parts:500-20-0100
Outlet Body,Water Jet Pump Parts
Specifications
Pressure Rating:Compatible with 60 000 psi (4 100 bar) intensifier systems
Body Style:Round check-valve housing with threaded ports
Ports:Interfaces to poppet spring bore and high-pressure outlet line
Weight:~1.6 oz (0.045 kg)

INQUIRY

Details

Outlet Body 500-20-0100 Waterjet-Cutter-Machine-Price-p.html target='_blank'>Water Jet Pump Parts In Stock

The part 500-20-0100 is the check-valve outer body (also called check-valve outlet housing) used in the high-pressure Intensifier Pump of Waterjet systems. This stainless-steel component houses the outlet poppet, spring, and valve seat, providing the one-way flow path that prevents backflow of hydraulic fluid during the pump’s pressurization stroke.

Specifications
Pressure Rating:Compatible with 60 000 psi (4 100 bar) intensifier systems
Body Style:Round check-valve housing with threaded ports
Ports:Interfaces to poppet spring bore and high-pressure outlet line
Weight:~1.6 oz (0.045 kg)
