Ball K016/660 Waterjet Parts Ball For Sale

Part Number	Alternative models	Description
1-16386	CP022015/527	Back Ring
1-18266	K016/660	Ball, Dia. 6
1-16390	CP022042/593	Lens
1-16395	CP022046/593	Valve Seat
1-16388	CP022010/527	Bearing Bush
1-18264	OR0043024/151	O-Ring, 4.3 x 2.4
1-18263	WJ070009/150	HP Gasket
1-18293	CP022100/220	HP Seal Kit
1-16393	CP022040/591	Valve Body
1-16389	CP022009/779	HP Cylinder
1-16391	XST17/220	Rod Sealing
1-18292		Center Section Rebuild Kit
1-18287	CP022066/220	Plunger Complete
1-18291	CP022109/844	Union Suction Side Complete
1-18289	CP022047/844	Union Pressure Side Complete
1-18280	CP022043/844	Union Suction Side
1-18281	CP022044/844	Union Pressure Side
1-18282	XF35/220	Rod Wear Ring
1-18269	9704521/220	Quad Ring
1-16387	CP022012/780	Back Ring

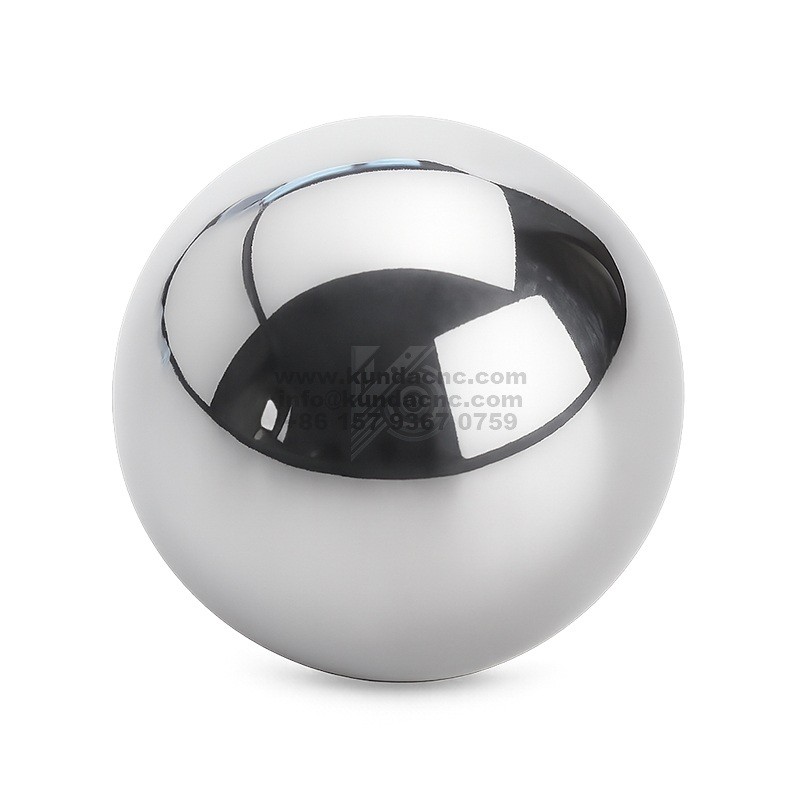

The K016-660 ball is a core component in the high-pressure check valve of a waterjet intensifier. It typically works in conjunction with a valve seat to control the unidirectional flow of high-pressure water by opening and closing the ball. This component withstands extremely high water pressure and shock during system operation, ensuring that water flows only in the intended direction into the cutting circuit, thereby maintaining stable intensifier operation.

1. Function: Provides unidirectional water flow control in the high-pressure check valve to prevent backflow.
2. Applicable Location: High-pressure check valve components in waterjet intensifiers.
3. Material: Typically made of high-strength tungsten carbide or ceramic, the ball offers excellent wear and impact resistance.
4. Replacement Cycle: This is a typical wear part and requires regular inspection and replacement based on equipment operating time and pressure conditions.

The ball's precision directly impacts the cutting stability and sealing performance of the WaterJet Cutting Machine, making it a critical component for efficient and continuous operation.
