Compact Sealing Set 137701/220 New Good Quality Water Jet Parts

Short Description:

Compact Sealing Set
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.01 kg
Working Pressure: 4137 bar
Material: Plastic, rubber

INQUIRY

Details

Compact Sealing Set 137701/220 New Good Quality Water Jet Parts

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring
1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring

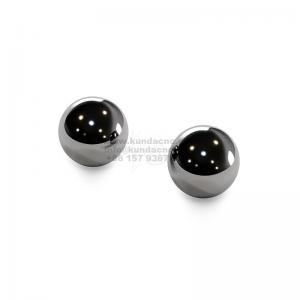

4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

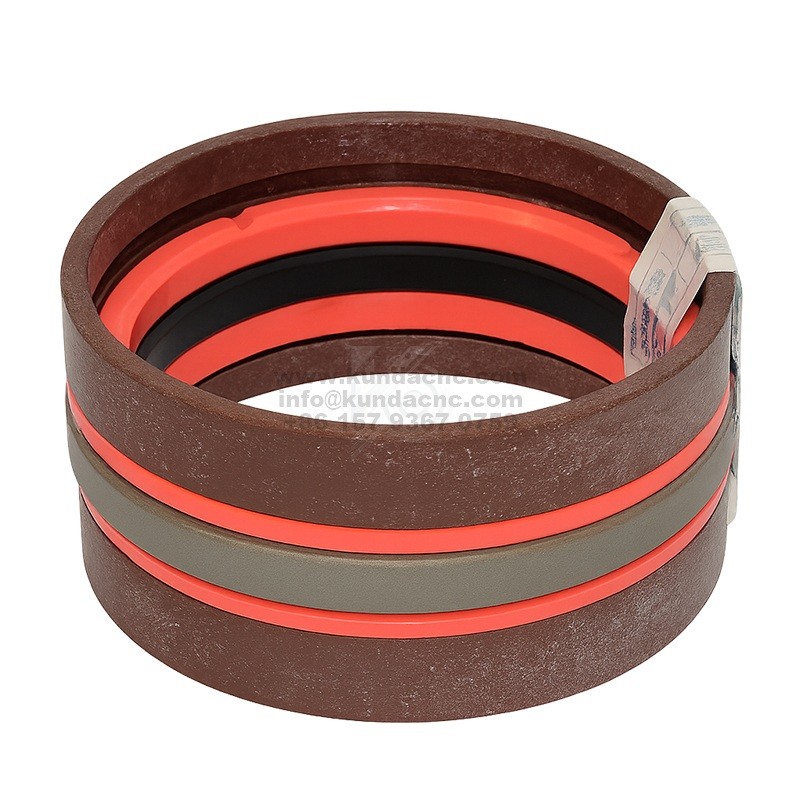

The Compact Sealing Set 137701/220 is a critical sealing component set for the high-pressure end of a waterjet intensifier. Comprising a variety of sealing rings, support rings, and guides, this seal set provides reliable sealing and support for the plunger and high-pressure cylinder under ultra-high-pressure conditions. Its compact design not only reduces installation space but also improves the overall stability and service life of the sealing system.

Function: Provides sealing and support for the plunger and cylinder during high-pressure operation, preventing high-pressure water leakage.
Applicable Location: Installed in the high-pressure sealing system of a waterjet intensifier.
Material Features: Constructed from high-strength polymers, composite materials, and wear-resistant components, it offers excellent resistance to high pressure, erosion, and fatigue.
Replacement Period: This is a typical wear part and should be replaced regularly based on operating time and maintenance schedule to ensure efficient and safe system operation.

The high-quality Compact Sealing Set 137701/220 effectively improves the sealing performance and reliability of the intensifier and is a key component for the long-term stable operation of a Water Jet Cutting Machine.
