Long Life Waterjet Mixing Tube Boron Carbide Precision Cut Waterjet Abrasive Focusing Tube
Long Life Waterjet Mixing Tube Boron Carbide Precision Cut Waterjet Abrasive Focusing Tube

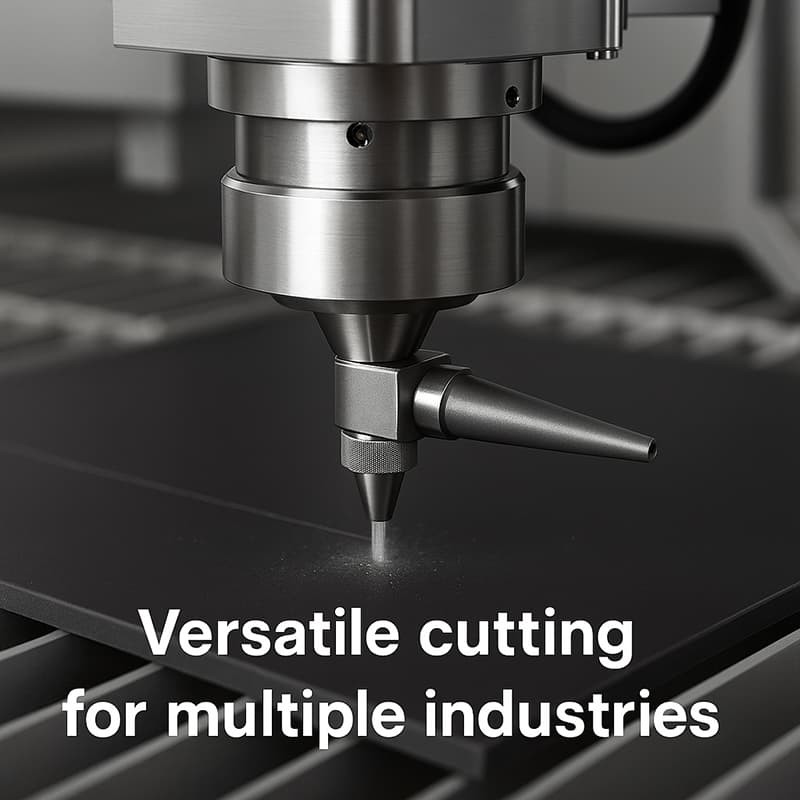

Long Life Waterjet Mixing Tube (sometimes also called abrasive tube or abrasive tube) is a key consumable component of a WaterJet Cutting Machine. Located within the nozzle assembly, its primary function is to thoroughly mix the high-pressure water flow with the emery and precisely direct the resulting high-speed Abrasive Water Jet to complete the material cutting process.
|
Outer diameter |
Inner diameter |
Length |
Remark |
|
6.35 |
0.76 |
76.2 |
conventional |
|
6.35 |
1.02 |
76.2 |
conventional |
|
6.35 |
1.02 |
101.6 |
conventional |
|
|
|
|
|
|
7.14 |
0.76 |
76.2 |
conventional |
|
7.14 |
1.02 |
76.2 |
conventional |
|
7.14 |
0.76 |
101.6 |
conventional |
|
7.14 |
1.02 |
101.6 |
conventional |
|
|
|
|
|
|
7.14 |
0.76 |
76.2 |
FLOW with locating ring |
|
7.14 |
1.02 |
76.2 |
FLOW with locating ring |
|
7.14 |
0.76 |
101.6 |
FLOW with locating ring |
|
7.14 |
1.02 |
101.6 |
FLOW with locating ring |
|
|
|
|
|
|
7.97 |
0.76 |
101.6 |
OMAX front side slot |
|
7.97 |
0.76 |
76.2 |
OMAX center slot |
|
|
|
|
|
|
9.43 |
0.76 |
76.2 |
KMT square head |
|
9.43 |
0.76 |
101.6 |
KMT square head |

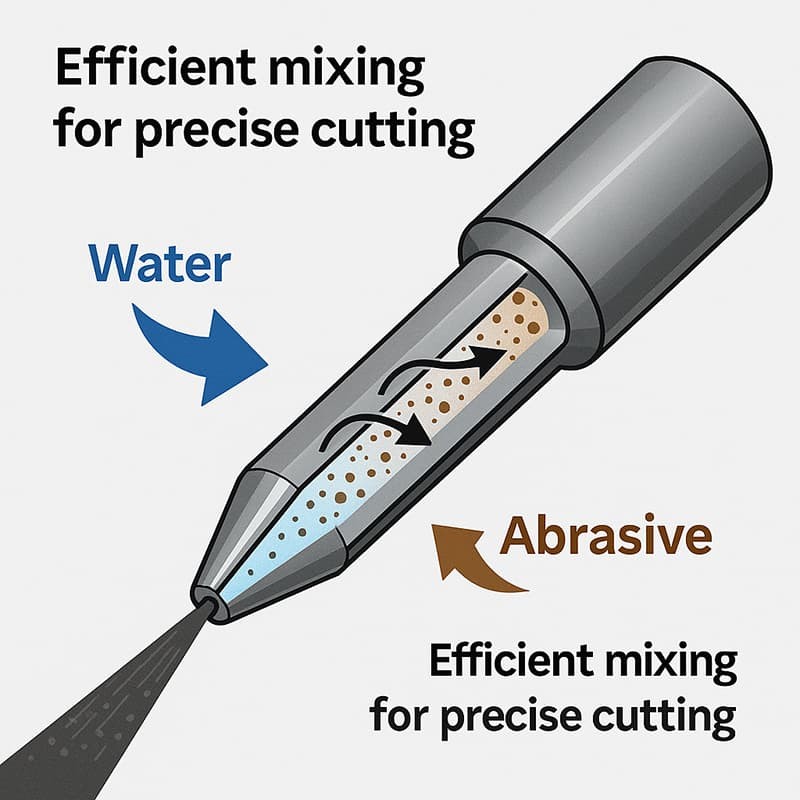

Working Principle Long Life Waterjet Mixing Tube:
High-pressure water flows through a jewel nozzle, forming an extremely fine water jet.Carbonite enters the mixing chamber through a side inlet.
In the mixing tube, the water and abrasive merge at high speed and are ejected through the nozzle, generating extremely powerful cutting power.

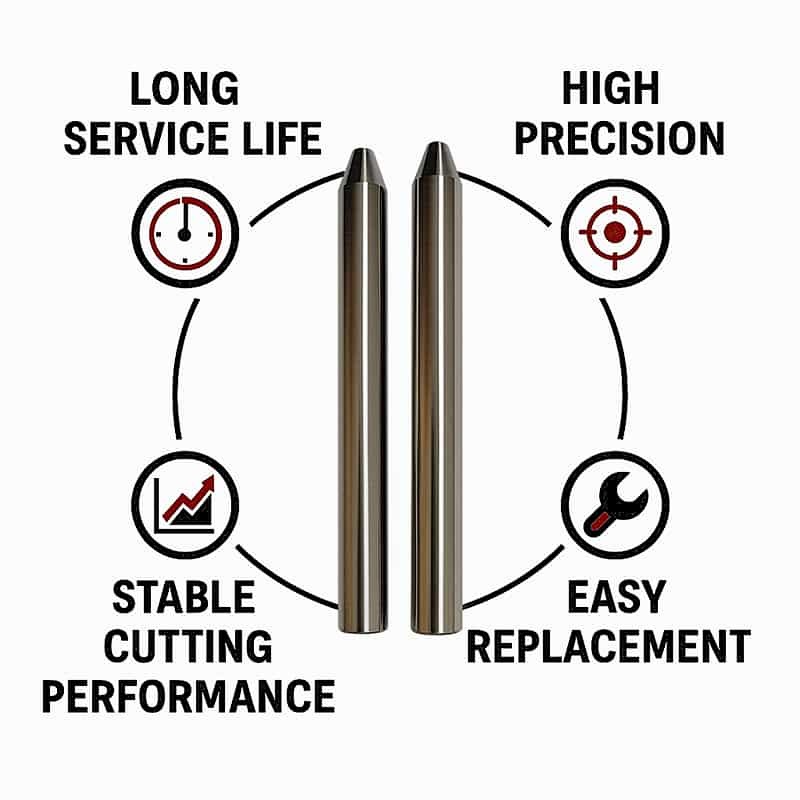

Features Long Life Waterjet Mixing Tube:
High wear resistance: Typically manufactured from high-hardness materials such as tungsten carbide or boron carbide.High precision: Precisely controlled inner diameter (commonly available values include Φ0.76mm and Φ1.02mm) ensures straightness and smoothness of cuts.

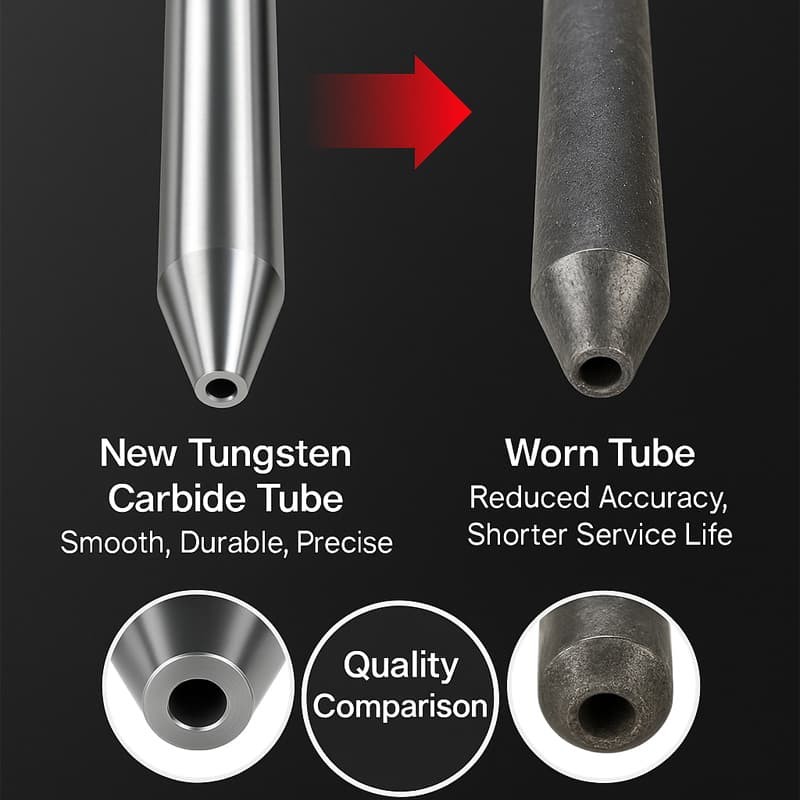

Consumables: These are consumable parts, and their service life depends on abrasive quality, water pressure, and cutting conditions.
