Piston WJ055014/591 Abrasive Water Jet Parts Supplier

Short Description:

Piston
5102241, 106801
Minimum Order Quantity: 1
Availability: Yes
Weight: 0.2 kg
Operating Pressure: 4137 bar
Material: Stainless Steel

INQUIRY

Details

Piston WJ055014/591 Abrasive Water Jet Parts Supplier

Part Number	Alternative models	Description
WJ055004/320	5100133	Cylinder
WJ055005/249	5100079	Lower Parts
WJ055009/025	5100034	Connecting Ring
WJ055010/256	5100134	Bushing
WJ055013/591	5102107	Valve Body
WJ055014/591	5102241	Piston
WJ055017/220	4101220	Impact Plate
WJ055020/591	107115	Release valve
WJ070027/133	4100147	Coupling Nut
WJ070028/256	4100965	Collet Clamp
WJ070060/591	107491	Cutting Valve Repair Kit
WJ070061/591	5102215	Valve Body Cutting Head
WJ070068/593	5100136	Nozzle Body
WJ100037/152	5200004	Connection

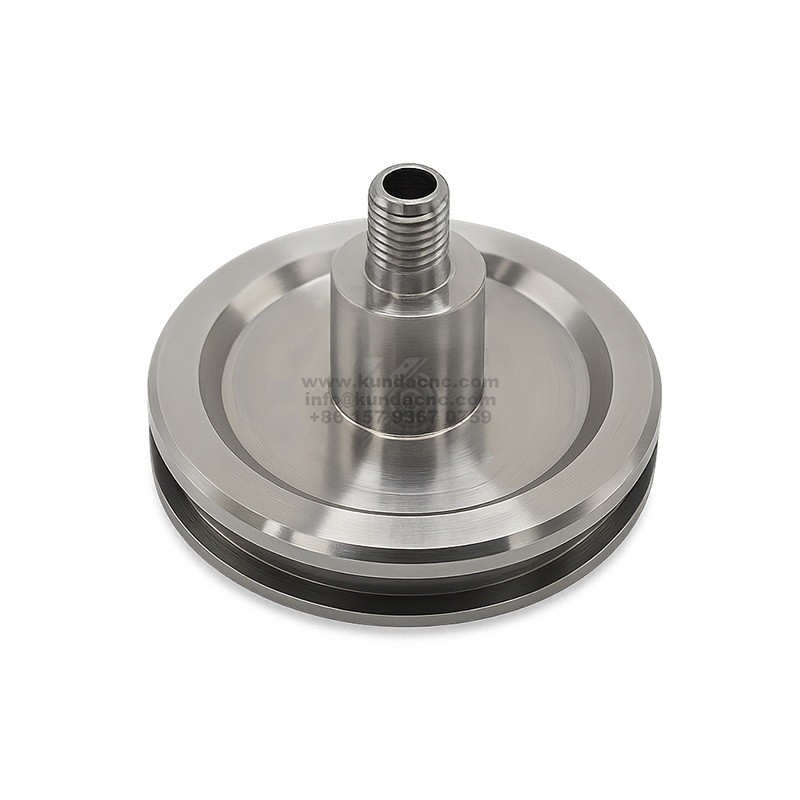

The Piston WJ055014/591 is one of the core drive components in a Waterjet Intensifier Pump. It reciprocates within the high-pressure cylinder, converting hydraulic energy into ultra-high-pressure water energy. This piston withstands extreme pressure and impact during operation, and its performance directly determines the output stability of the intensifier pump and the cutting quality of the waterjet cutting process.

Made from high-strength alloy steel or composite materials, this piston undergoes precision machining and heat treatment, resulting in excellent pressure resistance, wear resistance, and fatigue resistance. Its polished and hardened surface offers a low friction coefficient, effectively reducing wear against the cylinder and bushing, extending the service life of seals and the entire machine.

The Piston WJ055014/591 is typically used in conjunction with the high-pressure cylinder, bushing, seals, and valve body, and is a key component in the intensification process. Its high reliability not only ensures continuous high-pressure water flow, but also reduces maintenance frequency, providing long-term, stable power support for the Water Jet Cutting Machine.
