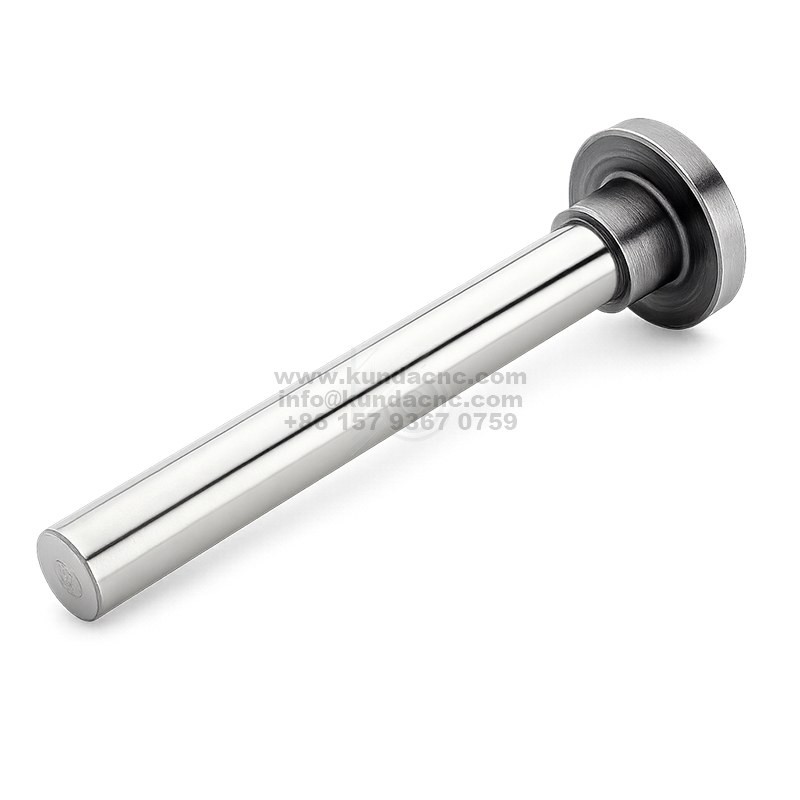

Plunger Complete CP022066/220 Stone Waterjet Machine Parts For Sale

Short Description:

Plunger Complete
1-18287
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA

INQUIRY

Details

Plunger Complete CP022066/220 Stone Waterjet Machine Parts For Sale

Part Number	Alternative models	Description
1-16386	CP022015/527	Back Ring
1-18266	K016/660	Ball, Dia. 6
1-16390	CP022042/593	Lens
1-16395	CP022046/593	Valve Seat
1-16388	CP022010/527	Bearing Bush
1-18264	OR0043024/151	O-Ring, 4.3 x 2.4
1-18263	WJ070009/150	HP Gasket
1-18293	CP022100/220	HP Seal Kit
1-16393	CP022040/591	Valve Body
1-16389	CP022009/779	HP Cylinder
1-16391	XST17/220	Rod Sealing
1-18292		Center Section Rebuild Kit
1-18287	CP022066/220	Plunger Complete
1-18291	CP022109/844	Union Suction Side Complete
1-18289	CP022047/844	Union Pressure Side Complete
1-18280	CP022043/844	Union Suction Side
1-18281	CP022044/844	Union Pressure Side
1-18282	XF35/220	Rod Wear Ring
1-18269	9704521/220	Quad Ring
1-16387	CP022012/780	Back Ring

The Plunger Complete CP022066/220 is a core component of the high-pressure section of a waterjet intensifier, responsible for converting hydraulic energy into ultra-high-pressure water energy. This plunger assembly reciprocates within the high-pressure cylinder, rapidly boosting low-pressure water pressure to the required ultra-high pressure, thus providing a stable source of power for the cutting operation.

Function: Intensifying water pressure through reciprocating motion, it serves as the core power transmission mechanism for the high-pressure system.
Applicable Location: Installed within the high-pressure cylinder of a waterjet intensifier.
Material: Typically constructed from a combination of high-strength ceramic plungers and alloy steel supports, it offers excellent resistance to high pressure, impact, and wear.
Replacement Period: As a critical operating component, it should be inspected and replaced regularly based on equipment operating time, water quality conditions, and maintenance schedule to prevent performance degradation or leakage.

The high-quality Plunger Complete CP022066/220 ensures the intensifier maintains high efficiency and stability under long-term high-pressure operating conditions, making it a key component for reliable Water Jet Cutting Machine operation.
