Precision Waterjet Cutting Head Ac 5Axis Corrosion Resistant Waterjet Head With Good Price
Precision Waterjet Cutting Head Ac 5Axis Corrosion Resistant Waterjet Head With Good Price

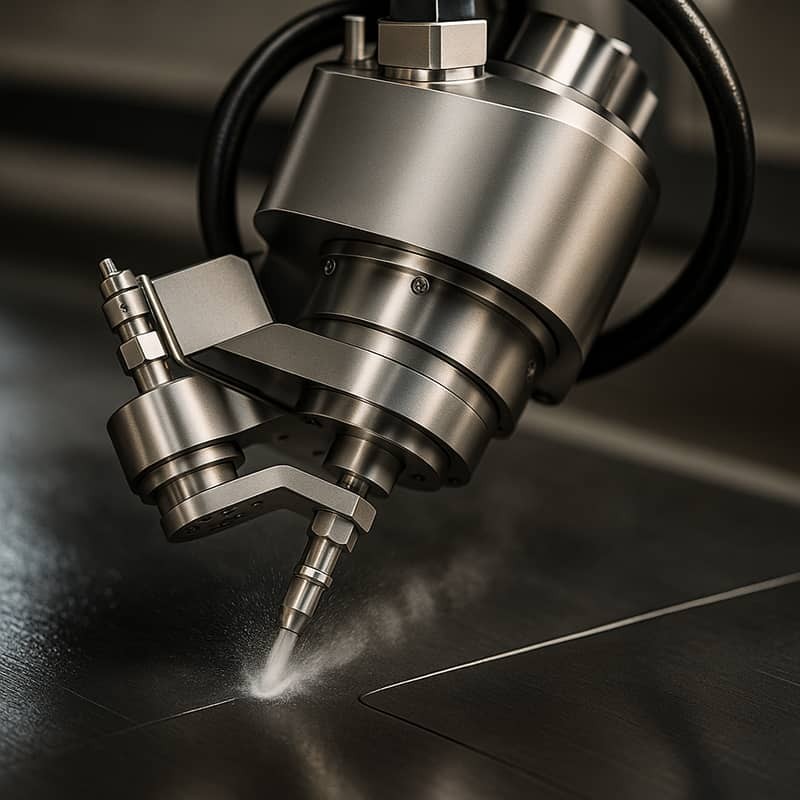

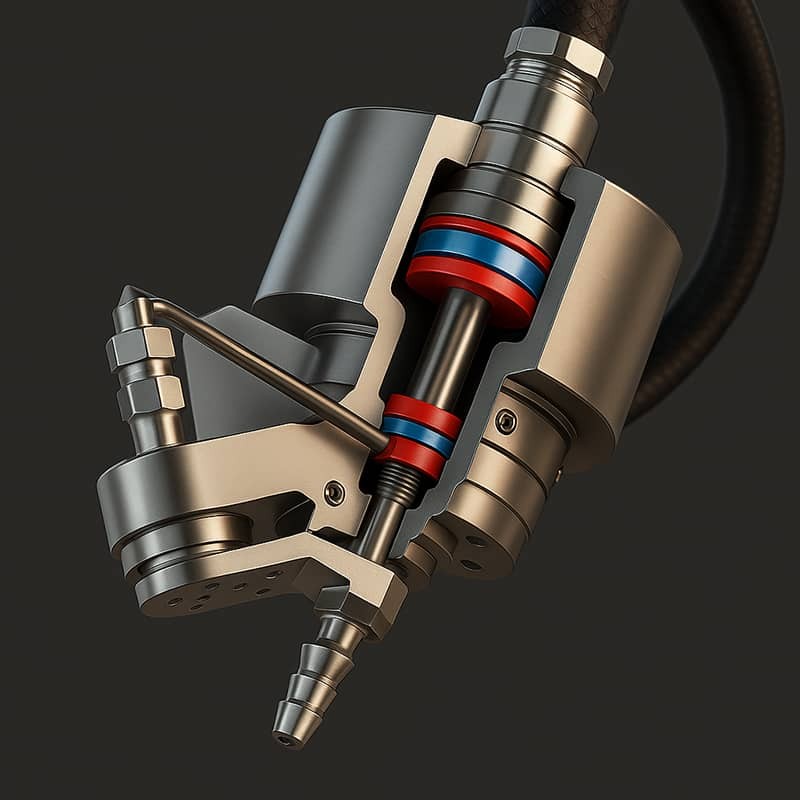

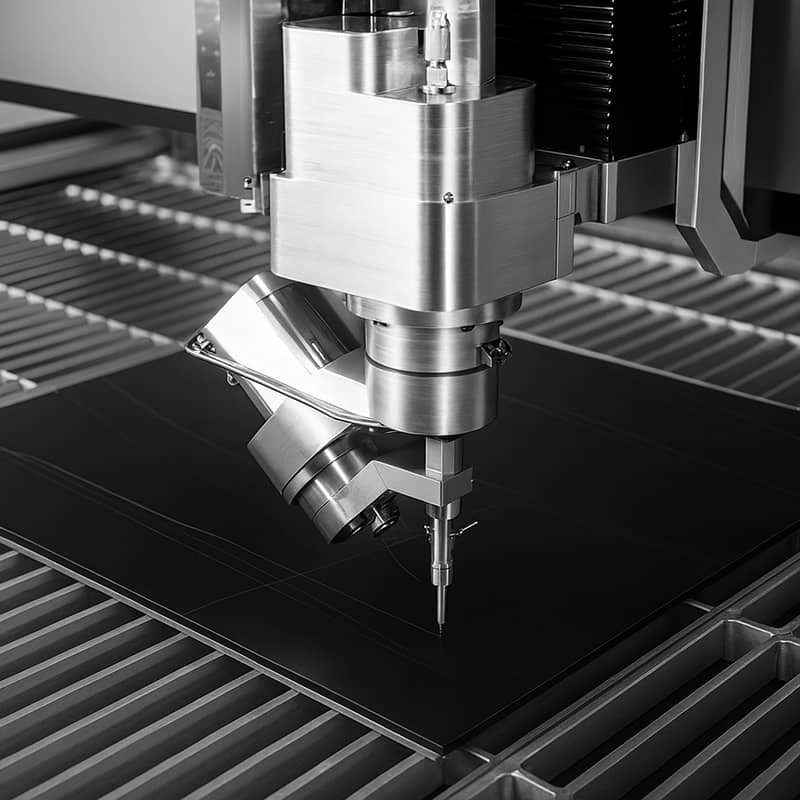

Precision Waterjet Cutting Head is one of the core components of the WaterJet Cutting Machine. Compared with the traditional three-axis cutting head (X, Y, Z directions), it has two more rotation axes (A axis and C axis), so it can achieve cutting of complex angles and curved surfaces.
|
A-axis Rotating Range |
±70° |
|
C-axis Rotating Range |
Infinite |
|
Positioning Precision |
1.5’ |
|
Max Rotational Speed |
50RPM |
|
Cutting precision at fixed point |
±0.05mm |
|
Rotating Radius |
261mm |
|
Automatic Heigh Measurement |
No(The automatic height measurement function requires an additional charge) |
|
Main Measurement |
|
|
Max. Height |
607mm |
|
Max. Length |
376mm |
|
Max. Width |
161mm |
|
High Pressure Tube Inlet Threading |
1/4 Inch |
Key Features Precision Waterjet Cutting Head:
Multi-Angle Cutting: By rotating the A- and C-axes, it can achieve angled cutting within a range of ±60° or even greater.3D/Bevel Cutting: Capable of not only flat cutting but also three-dimensional curves, bevels, and chamfers.
High Precision: When used with a CNC system, it achieves cutting accuracy of ±0.1 mm, making it particularly suitable for complex processes.
No Heat Affect: Unlike laser or plasma cutting, waterjet cutting creates no heat-affected zone, preventing material deformation.
Widely Applicable: It can cut a variety of materials, including metal, glass, stone, ceramics, and composites.
Applications Precision Waterjet Cutting Head:
Chamfering stone mosaics and countertopsMachining complex contours of aerospace parts
Cutting special-shaped metal parts in the automotive industry
Precision machining of fragile materials such as glass and ceramics
