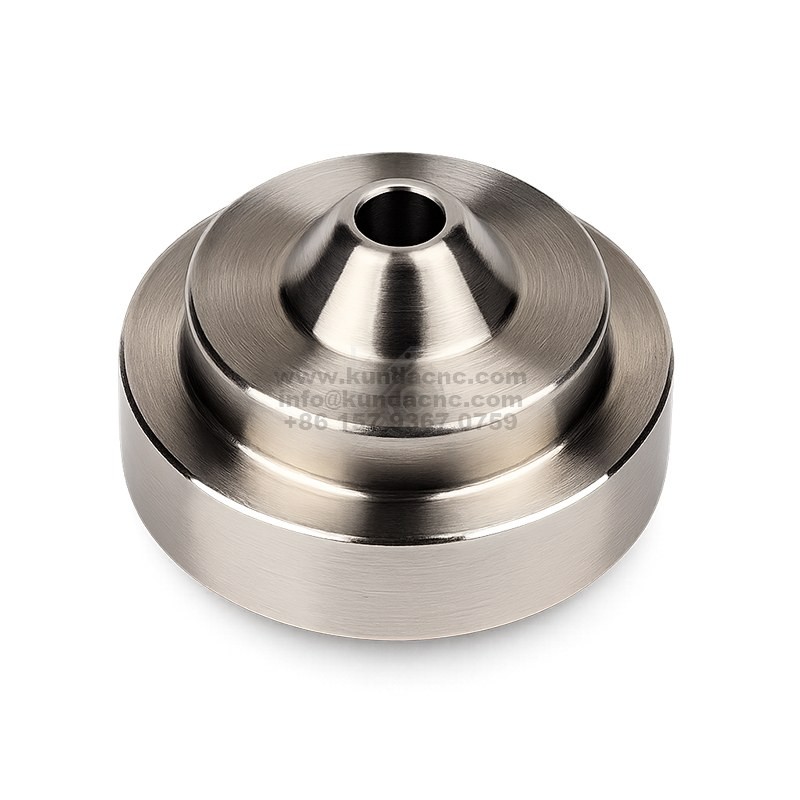

Sealing Cone CP020074/593 Steel Water Jet Parts Supplier

Short Description:

Sealing Cone
5102091
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.01 kg
Working Pressure: 4137 bar
Material: Stainless Steel

INQUIRY

Details

Sealing Cone CP020074/593 Steel Water Jet Parts Supplier

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring
1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring
4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

The Sealing Cone CP020074/593 is a core sealing component in the high-pressure check valve of a waterjet intensifier. Its conical design tightly mates with the valve ball and seat, ensuring a reliable seal under ultra-high-pressure conditions and preventing backflow of high-pressure water. The precision of this component directly determines the sealing effectiveness of the check valve and the stability of the system.

Function: It forms a sealing interface with the valve ball and seat, ensuring unidirectional flow of high-pressure water.
Applicable Location: Installed in the high-pressure check valve assembly of a waterjet intensifier.
Material: Typically made of tungsten carbide or wear-resistant alloy, it offers high-pressure and erosion resistance, along with a long lifespan.
Replacement Period: As a consumable part, it should be replaced regularly based on the equipment's operating time and maintenance schedule to prevent leakage due to wear.

The high-quality Sealing Cone CP020074/593 effectively improves the sealing reliability of the check valve and reduces maintenance requirements, making it a critical component for ensuring the long-term and efficient operation of Water Jet Cutting Machines.
