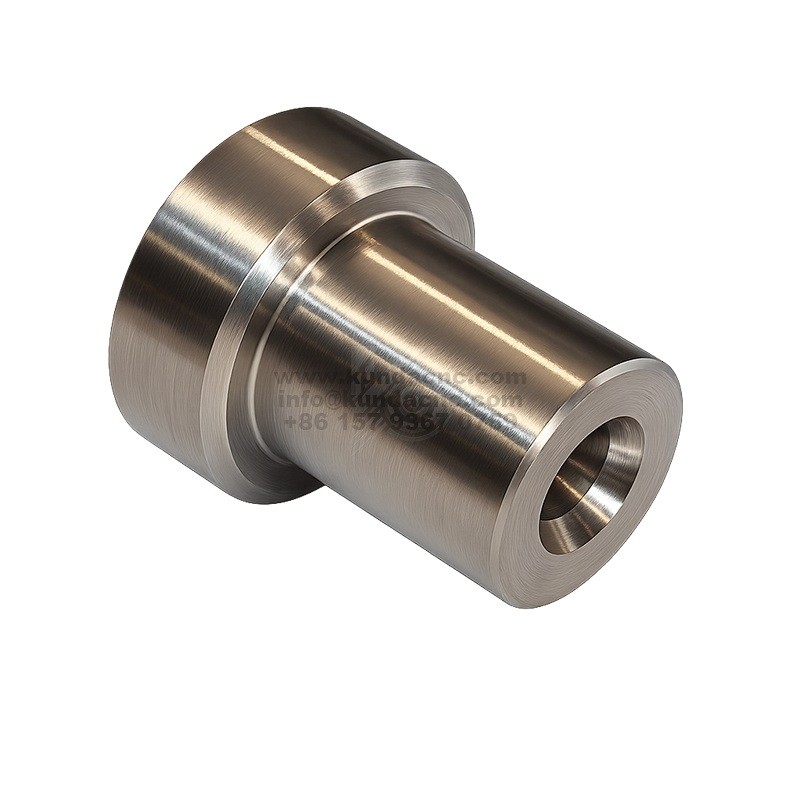

Valve Insert CP020023/593 New Water Jet Parts Supplier

Short Description:

Valve Insert
5102089
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.01 kg
Working Pressure: 4137 bar
Material: Stainless Steel

INQUIRY

Details

Valve Insert CP020023/593 New Water Jet Parts Supplier

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring
1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring
4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

The Valve Insert CP020023/593 is a core component in the high-pressure check valve of a waterjet intensifier, providing stable positioning and support for the valve ball and valve seat. It maintains the precise opening and closing of the valve ball under high-pressure water flow, ensuring unidirectional water flow and preventing backflow in the system. The precision and wear resistance of this component are directly related to the sealing effectiveness and service life of the check valve.

Function: Provides mounting support and positioning for the valve ball and valve seat, ensuring unidirectional flow of high-pressure water.
Applicable Location: Installed in the high-pressure check valve assembly of a waterjet intensifier.
Material: Typically made of high-strength alloy steel or tungsten carbide, it offers high-pressure and erosion resistance, along with a long service life.
Replacement Period: As a consumable part in a high-pressure system, the Valve Insert CP020023/593 should be replaced regularly, based on operating time and maintenance schedule, to prevent seal failure due to wear.

High-quality Valve Insert CP020023/593 improves the reliability of the check valve and reduces the risk of leakage, making it a critical component for the long-term stable operation of a Water Jet Cutting Machine.
