Abrasive Head TJ006070/591 Good Price Glass Waterjet Parts Supplier

Short Description:

Abrasive Head
HD300300, 107488
6,35mm
Minimum Order Quantity: 1
Availability: Yes
Weight: 0.16 kg
Working pressure: 4137 bar
Material: Stainless steel, brass

INQUIRY

Details

Abrasive Head TJ006070/591 Good Price Glass Waterjet Parts Supplier

Part Number	Alternative models	Description
HD001900	MJ0010139	Head Swivel Angle Adapter
MJ4980006	MJ0110020	Sapphire Nozzle
ZA110200	MJ0380291	Height Sensor Probe For 3D Head
ZA111000	MJ2260022	Collimation Tube I-Head And Jet 3D
PN200600	MJ2350006	Hose
HD300100	MJ9990002	Ajet 3D Head
4100442	OR0120030/151	Ring
4100920	OR0140020/151	O-Ring
4101560	OR0250040/151	O-Ring
5300048	OR0490030/151	O-Ring
4100704	OR0700020/151	O-Ring
4100705	OR0759017/151	O-Ring
	OR0885035/220	O-Ring
4101562	P7680325/220	Oil Filter Element
106810	S0356x2/426	Snap Ring
106779	S24B20/103	Retaining Ring
106334	TJ006016/133	Clamping Nut
107488	TJ006070/591	Abrasive head
106336	TJ006071/555	Bushing
107476	TJ006076/591	Basic body 6.35 mm

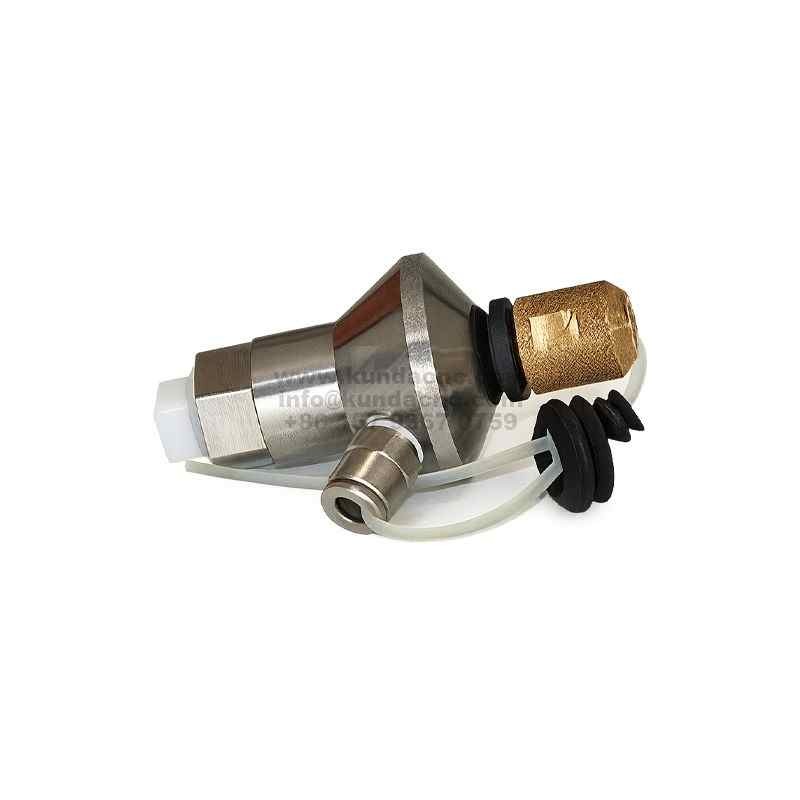

The TJ006070/591 Abrasive Head is a critical component for abrasive mixing in Waterjet Cutting Systems. Its primary function is to precisely mix high-pressure water with abrasive sand, forming a stable, high-energy jet stream, enabling efficient cutting of metal, glass, stone, ceramics, and composite materials.

Crafted from a wear-resistant alloy, this abrasive head features a rationally designed internal structure, effectively extending its service life and reducing energy loss. Furthermore, the TJ006070/591 boasts excellent sealing properties, ensuring uniform mixing of water and sand and ensuring cutting accuracy.

KUNDA's TJ006070/591 Abrasive Head undergoes rigorous process control and testing, and is compatible with various brands of Waterjet Cutting Equipment, helping customers achieve higher efficiency and lower maintenance costs in complex cutting applications.

Applications:
