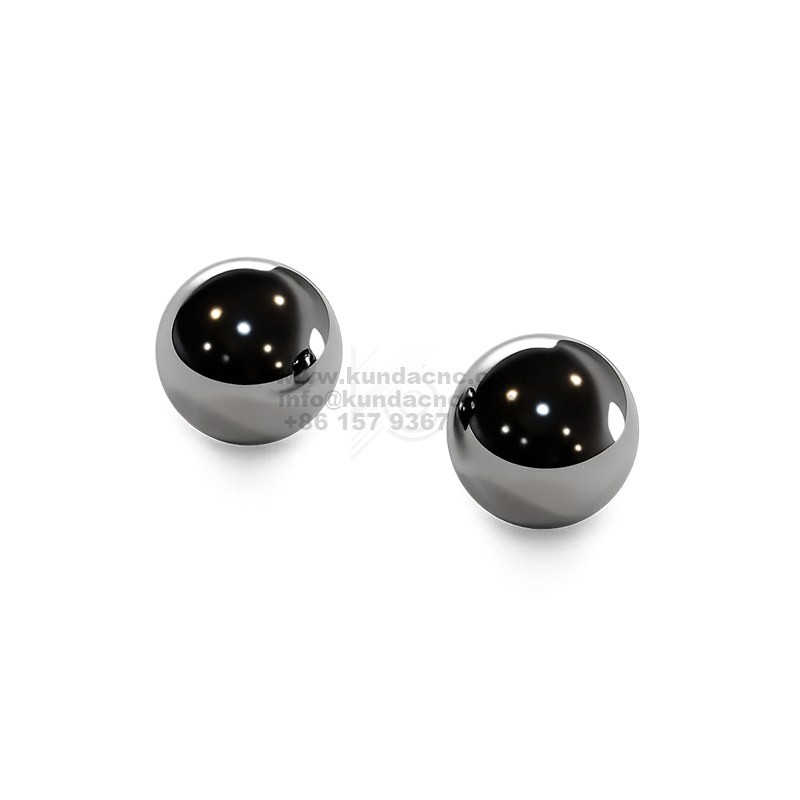

Ball 34203002/220 Good Price Waterjet Parts Supplier

Short Description:

Ball
4100248
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.01 kg
Working pressure: 4137 bar
Material: Stainless steel

INQUIRY

Details

Ball 34203002/220 Good Price Waterjet Parts Supplier

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring
1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring
4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

The Ball 34203002/220 is a core component in the high-pressure check valve of a waterjet intensifier. It works in conjunction with the valve seat to control the unidirectional flow of high-pressure water through the opening and closing motion of the ball, preventing backflow. This ball operates in ultra-high-pressure environments, directly impacting the check valve's sealing performance and system stability.

Function: It forms a sealing surface with the valve seat, ensuring unidirectional flow of high-pressure water and preventing backflow.
Applicable Location: Installed in the high-pressure check valve assembly of a waterjet intensifier.
Material: Commonly made of tungsten carbide or ceramic, it offers excellent resistance to wear, high pressure, and impact.
Replacement Period: This is a typical wear part and should be inspected and replaced regularly based on equipment operating time and water quality to ensure reliable sealing of the check valve.

High-quality Ball 34203002/220 effectively improves the sealing performance of the high-pressure check valve and extends the life of the intensifier, making it a critical component for maintaining stable operation of Water Jet Cutting Machines.
