3 Axis Waterjet Cutting Machine Cantilever Waterjet Stainless Steel Cutting Machine

Short Description:

Name:3 Axis Waterjet Cutting Machine
Brand:KUNDA
Cutting Size:6000*4000mm/3000*1500mm/4000*2000/3000*2000mm
Pump:Jet50
Cutting materials: marble, tiles, glass, steel, etc.
Accuracy:Cutting:±0.1mm/Repeatability:±0.05mm
Traverse Speed:6000-15000mm/min
Structure:Cantilever/Gantry/Fully Enclosed
Delivery time: 25 days
Warranty period: 1 year

INQUIRY

Details

3 Axis Waterjet Cutting Machine Cantilever Waterjet Stainless Steel Cutting Machine

3 Axis <a href=https://www.kundacnc.com/Waterjet-Cutting-Machine-High-Quality-Water-Jet-Ceramic-Stone-Cutting-Machine-Price-p.html target='_blank'>Waterjet Cutting Machine</a>

Kunda 3 Axis Waterjet are high-precision systems that use cold cutting. They combine ultra-high-pressure water and abrasive to cut various materials without generating heat or deformation. Compared to traditional processes like laser cutting, plasma cutting, or flame cutting, waterjet cutting offers advantages such as higher precision, smoother cut edges, and no thermal damage to the material.
Kunda 3 Axis Waterjet Machine are found in various industries, including metal processing, stone finishing, glass manufacturing, aerospace, automotive, construction, and composite material processing. Their ability to handle diverse cutting tasks is attributed to their advanced CNC system and flexible configuration options, ensuring high efficiency, high quality, and reliable long-term operation.

Model		KD1015	KD2015	KD3015	KD3020	KD4020
Structure		Cantilever/Gantry/Fully Enclosed
Cutting Table Size		1200*1700mm	2200*1700mm	3200*1700mm	3200*2200mm	4200*2200mm
Stroke	X axis	1000mm	2000mm	3000mm	3000mm	4000mm
	Y axis	1500mm	1500mm	1500mm	2000mm	2000mm
	Z axis	130mm	130mm	130mm	130mm	130mm
Accuracy	Cutting	±0.1mm
Accuracy	Repeatability	±0.05mm
Traverse Speed		6000-15000mm/min
Power Supply		220v/380v/415v,50/60Hz

The cutting principle of 3D Water Jet Cutting Machine:

The core of waterjet cutting lies in pressurizing water to extremely high levels and then spraying it through a fine nozzle, forming a powerful jet of water.

The cutting process involves the following steps:

1. Water pressurization: A booster pump pressurizes the water to an ultra-high pressure state, typically between 4000 and 6000 bar.

2. Abrasive mixing: In the mixing chamber, abrasives such as garnet sand are added to enhance the cutting power of the water jet.

3. High-speed jet shaping: The mixture of water and abrasive is sprayed out at extremely high speed through a focusing tube.

4. Material cutting: This jet of water can accurately erode and cut various materials such as metals, stone, glass, ceramics, rubber, plastics, and composite materials.

Because the cutting process does not generate heat, waterjet cutting is also known as cold cutting technology. This technology avoids material deformation and preserves the original physical properties of the material.

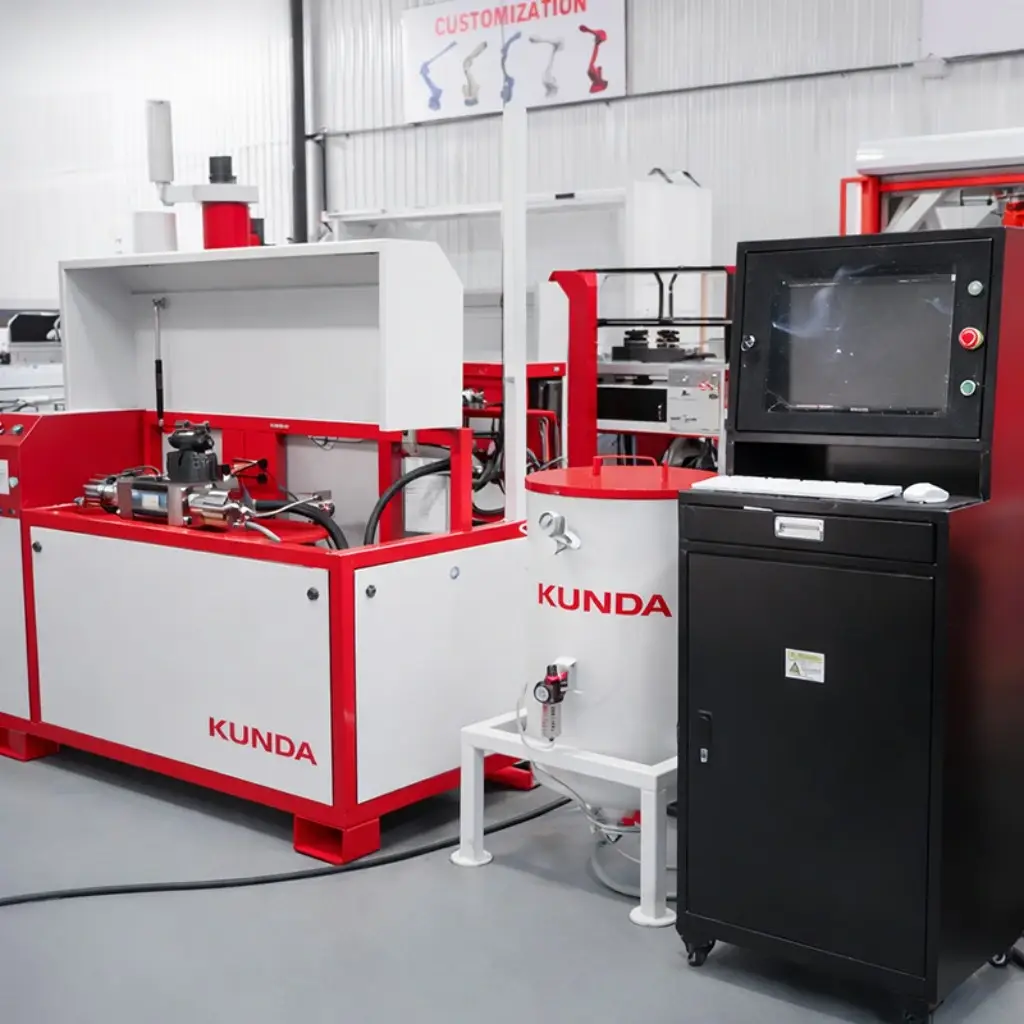

What are the options for booster pumps?

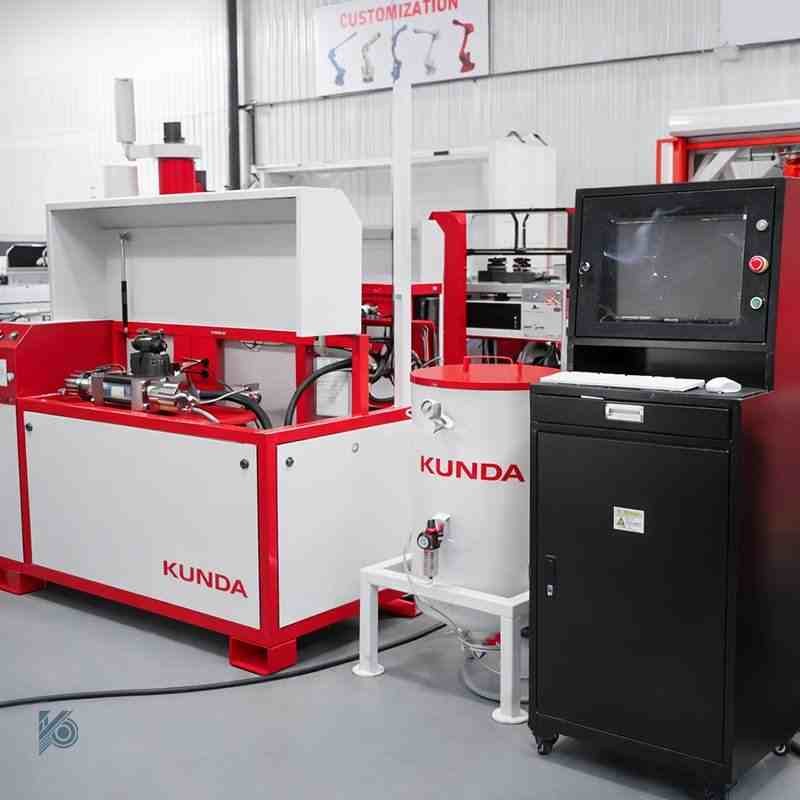

The booster pump is a very important component of a waterjet cutting machine. Kunda offers a variety of booster pumps to meet different cutting needs:

420 MPa Booster Pump:

1- Pressure: Up to 420 MPa

2- Stable performance, suitable for most standard cuts

3- Lower operating costs

600 MPa Booster Pump:

1- Pressure: Up to 600 MPa

2- Faster cutting speed, more efficient when cutting thicker materials

3- More suitable for industrial production lines

Key Features of Kunda Booster Pumps:

1- High hydraulic system efficiency

2- Long seal life

3- Stable pressure output

4- Compatible with standard components from other brands

5- Easy maintenance and replacement

Cutting Table Structure: Kunda waterjet cutting machines offer various structural configurations to meet the layout and cutting needs of different factories.

Gantry Cantilever Waterjet Machine: The gantry structure is a common type in Industrial Waterjet cutting.

Advantages of 60000 Psi Waterjet Machine:

1- High rigidity and stability

2- Suitable for processing large workpieces

3- Very high precision

4- Suitable for cutting stone, metal sheets, and heavy materials

We can provide:

1- 1500 x 1500 mm

2- 2000 x 3000 mm

3- 2000 x 4000 mm

4- 3000 x 6000 mm

Cantilever Waterjet Cutting Machine:

The cantilever structure allows operators easier access to the cutting area, suitable for small production environments.

Advantages:

1- Compact structure

2- Easy loading and unloading

3- Lower cost

4- Suitable for glass processing, small workshops, and custom cutting

Fully Enclosed Waterjet Cutting Machine:

The fully enclosed cutting system provides a safer operating environment and a cleaner working environment.

Features:

1- Fully enclosed safety structure

2- Reduced water splash and noise

3- Improved environmental protection

4- Better operator safety

This design is common in industries such as aerospace, electronics, and precision manufacturing.

3 Axis Waterjet Cutting Machine

Material	Thickness	Orifice	320Mpa	380Mpa	420Mpa
Aluminum	6mm	0.33mm	400-520mm/min	460-590mm/min	500-580mm/min
	13mm		300-380mm/min	350-420mm/min	400-510mm/min
	19mm		220-280mm/min	260-380mm/min	300-420mm/min
Stainless Steel	6mm		200-260mm/min	240-310mm/min	260-350mm/min
	13mm		80-120mm/min	100-150mm/min	125-180mm/min
	20mm		50-65mm/min	70-90mm/min	100-120mm/min
	30mm		15-25mm/min	30-40mm/min	40-50mm/min
Glass	6mm		1200-1400mm/min	1600-1900mm/min	2100-2300mm/min
	10mm		600-700mm/min	700-800mm/min	820-900mm/min
	20mm		330-400mm/min	400-500mm/min	600-800mm/min
Marble	10mm		1000-1200mm/min	1200-1400mm/min	1350-1550mm/min
	20mm		400-500mm/min	600-700mm/min	750-850mm/min
	30mm		220-300mm/min	310-380mm/min	400-480mm/min
	50mm		70-90mm/min	100-120mm/min	130-150mm/min
Ceramic Tile	15mm		1200-1400mm/min	1400-1500mm/min	1600-1800mm/min
Bronze	5mm		500-600mm/min	700-800mm/min	900-1000mm/min
	15mm		190-220mm/min	220-300mm/min	330-400mm/min
	30mm		80-100mm/min	100-120mm/min	120-150mm/min

3 Axis Waterjet Cutting Machine

What advanced features are available of Waterjet Stainless Steel Cutting Machine?

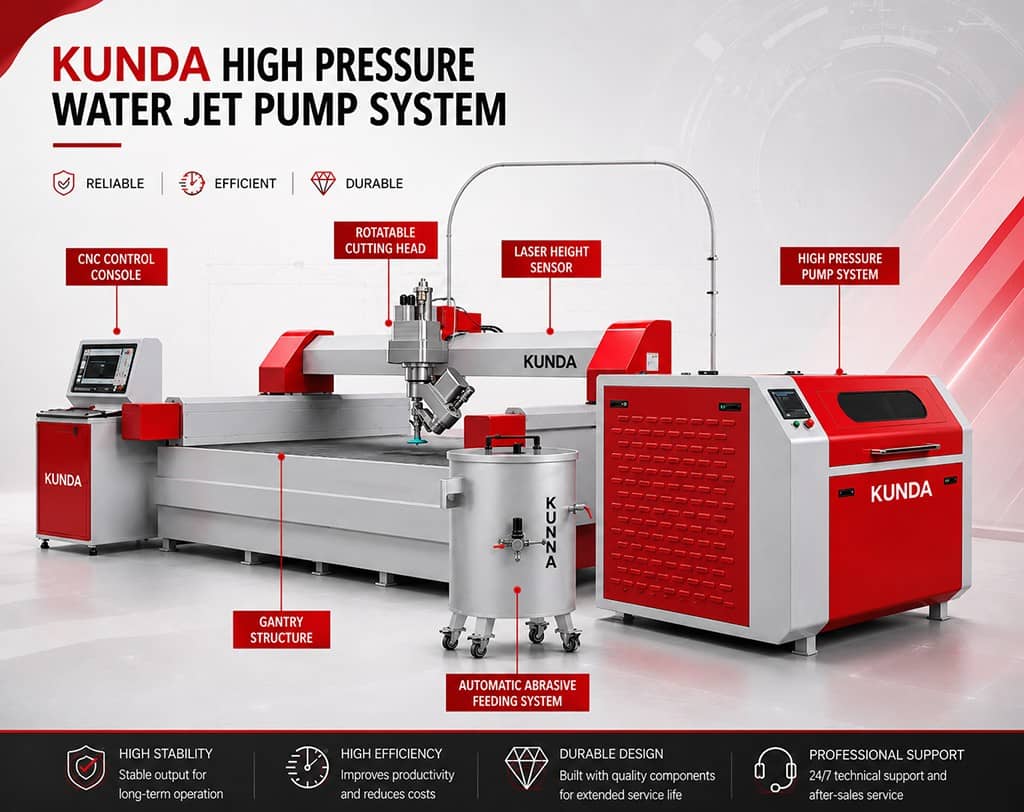

To enhance automation and cutting performance, Kunda waterjet cutting machines offer several optional features:

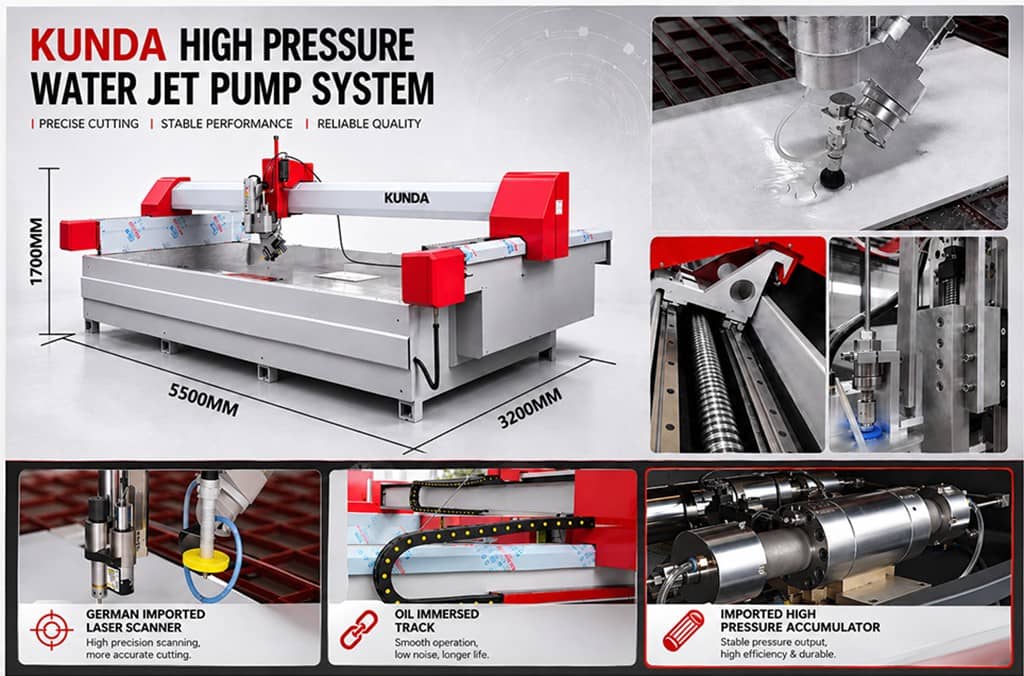

Laser Height Measurement System:

The laser height sensor automatically measures the distance between the cutting head and the workpiece surface.
Advantages:
1- Maintains optimal cutting distance
2- Improves cutting accuracy
3- Prevents nozzle collisions
4- Suitable for uneven surfaces
5- This feature is particularly useful when cutting stone and thick metal sheets.
Water Filtration and Purification System:

Water quality is crucial for the performance and lifespan of the waterjet system.
We can provide:
1- Multi-stage filtration
2- Water softening unit
3- Reverse osmosis system
Advantages:
1- Protects high-pressure components
2- Extends the lifespan of seals and valves
3- Improves cutting stability
4- Reduces maintenance costs

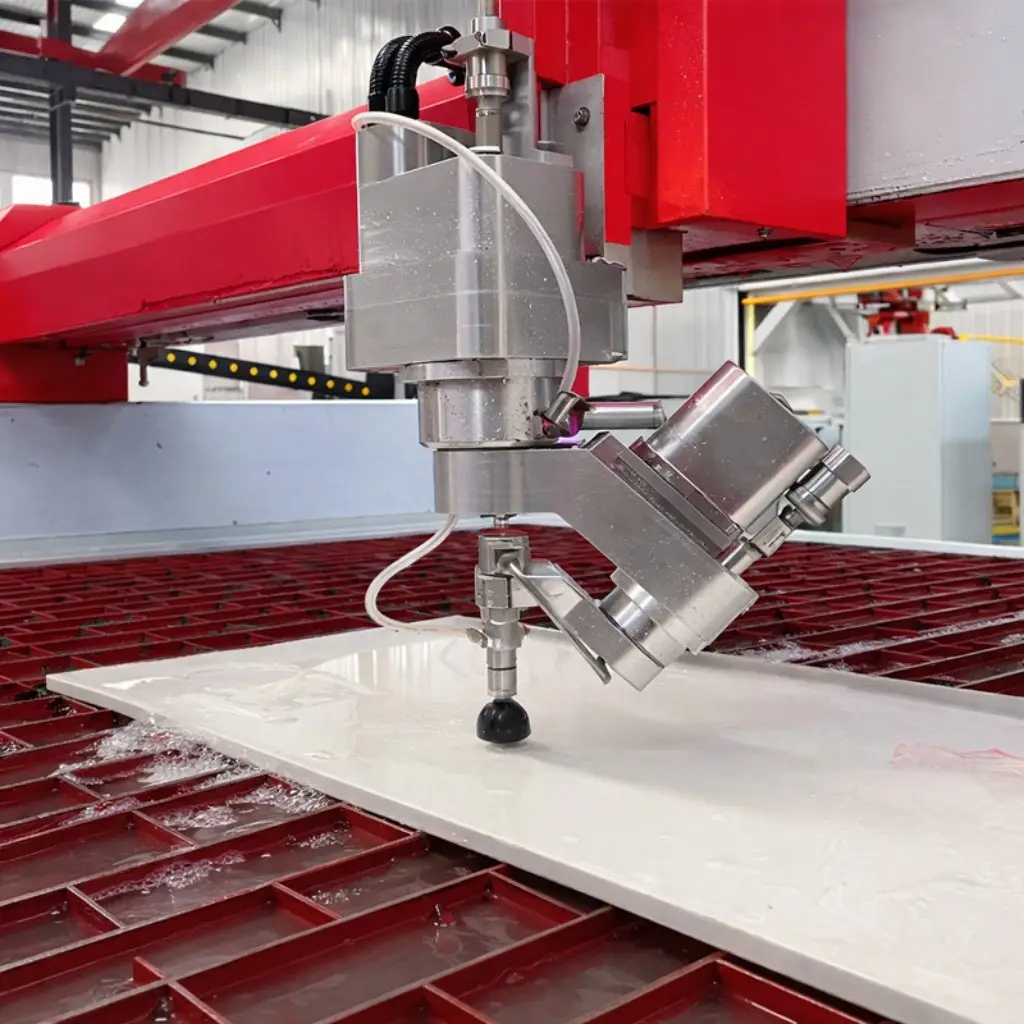

Tilt/Five-Axis Cutting Head:

The tilt cutting head allows the machine to perform angled and bevel cuts.
Functions:
1. 0–60° bevel cutting
2. Taper compensation
3. Cutting complex geometries
4. Ideal for pre-welding preparation
This function is widely used in metal processing and aerospace parts production.
Dual Cutting Heads:
Dual cutting heads can cut two parts simultaneously, significantly improving production efficiency.
Advantages:
1. Higher production efficiency
2. Reduced production time
3. Suitable for batch processing
Automatic Abrasive Feeding System:
This system automatically feeds abrasive to the abrasive hopper.

Features of Waterjet Steel Cutting Machine:

1. Continuous abrasive supply
2. Reduced manual operation
3. Improved cutting stability
Rotating/Tilting Platform:
Tilting or rotating the platform improves material loading and unloading efficiency.
Advantages:
1. Faster material changeover
2. Reduced machine downtime
3. Increased production efficiency
This function is common in large stone processing plants.

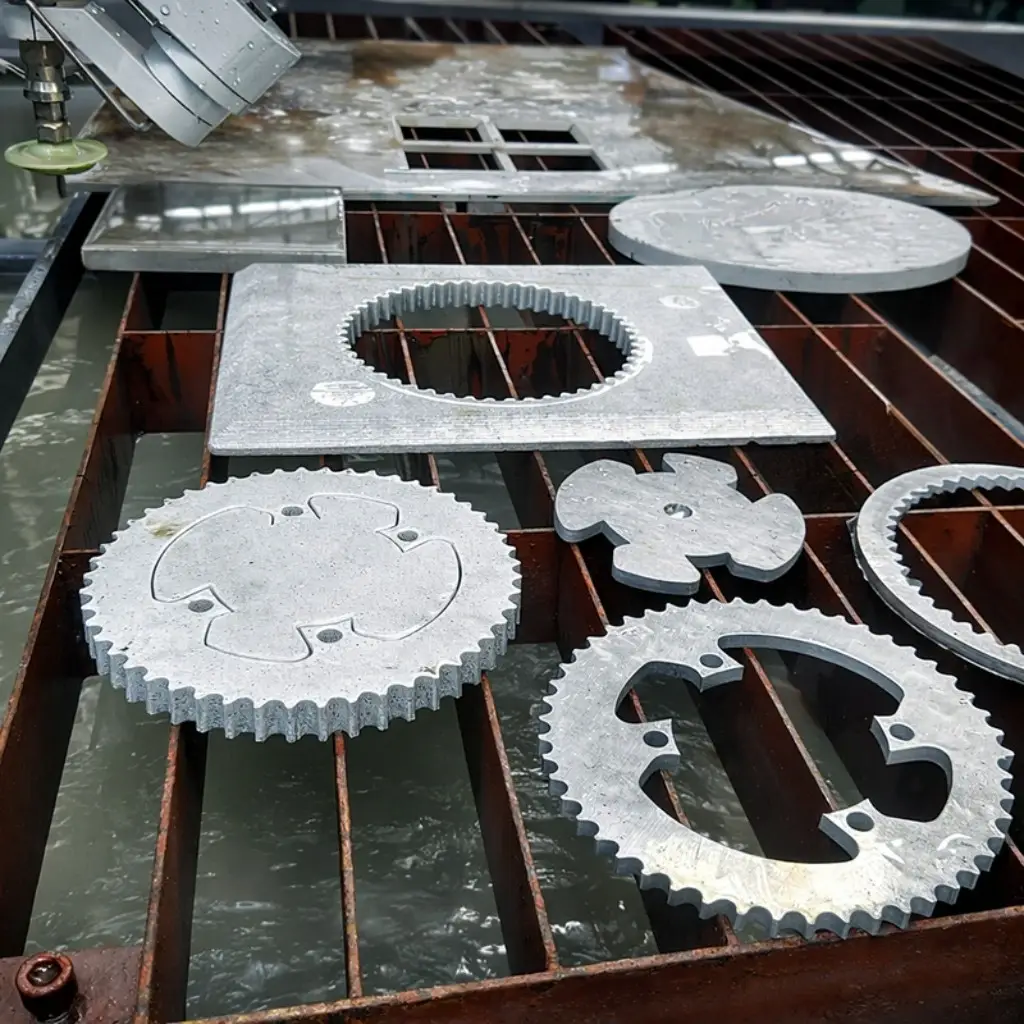

What materials can a waterjet cut? Waterjet cutting machines can process almost any material, including:
Metals: Stainless steel, carbon steel, aluminum, copper, titanium
Non-metals: Marble, granite, glass, ceramics, rubber, plastics, composites, foam, carbon fiber
Depending on the material, cutting thicknesses can reach 200 mm or even greater.

What are the advantages of 60 000 Psi Waterjet Price?

1- High-precision cutting: Advanced CNC systems provide precise motion control and accurate cutting paths.
2- No heat-affected zone: Cold cutting technology ensures no thermal deformation.
3- Smooth cutting edges: Few burrs, high-quality edges.
4- Multi-material processing capability: One machine can cut metals, stone, glass, plastics, and composites.
5- Environmentally friendly: No toxic gases or harmful fumes are produced.

Application areas of 60000 Psi Water Jet Cutter Price:

Metal processing
Stone processing
Glass manufacturing
Aerospace components
Automotive components
Architectural decoration
Industrial equipment manufacturing

Why choose a 60000 Psi Waterjet?

1. High-performance booster pump
2. Flexible machine structure options
3. Advanced CNC system
4. Globally compatible spare parts
5. Professional technical support
6. Reliable long-term performance
Kunta is committed to providing global customers with high-precision, durable, and efficient Waterjet Cutting Solutions.
