CNC Waterjet 5 Axis Head Aerospace Industrial Waterjet Cutting Angle Compensation Head
Cnc Waterjet 5 Axis Head Aerospace Industrial Waterjet Cutting Angle Compensation Head
Product Introduction

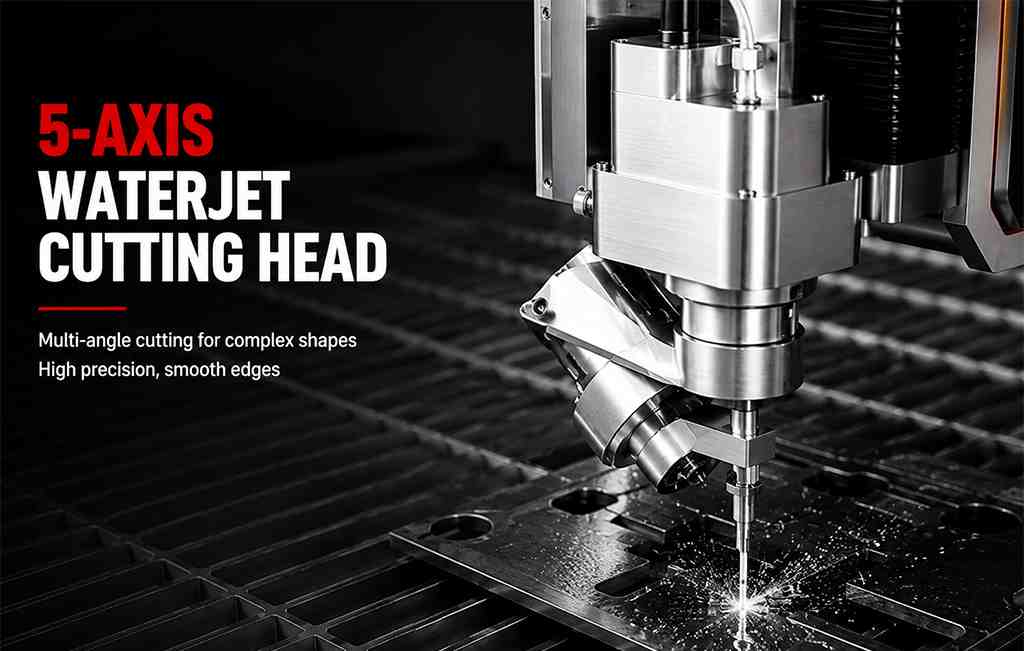

The CNC Waterjet 5 Axis Head is a high-precision angle compensation cutting head designed for aerospace manufacturing, industrial fabrication, and advanced CNC waterjet cutting applications.
Equipped with intelligent multi-axis motion control and dynamic angle compensation technology, this Aerospace Waterjet Cutting Head delivers exceptional cutting accuracy, superior edge quality, and precise bevel cutting performance.
Compatible with ultra-high pressure Abrasive Waterjet Systems, this industrial waterjet cutting head is widely used in aerospace, automotive, metal fabrication, stone processing, composite manufacturing, and advanced industrial production.

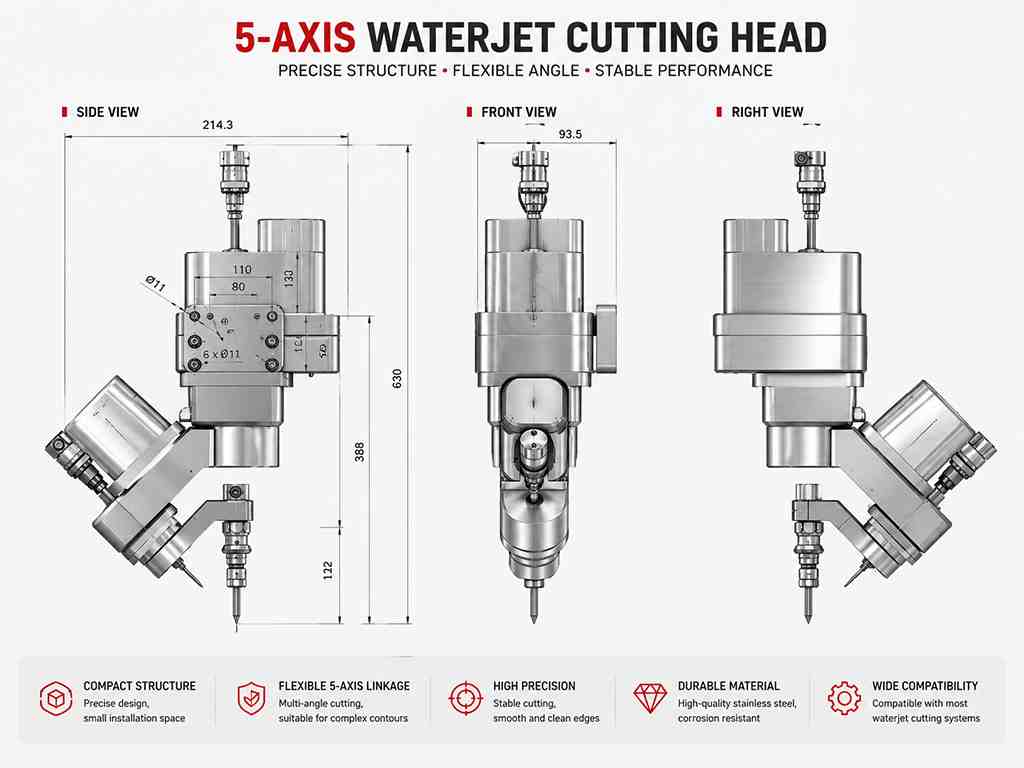

Technical Specifications
| A-axis Rotating Range | ±70° |
| C-axis Rotating Range | Infinite |
| Positioning Precision | 1.5' |
| Max Rotational Speed | 50 RPM |
| Cutting Precision at Fixed Point | ±0.05mm |
| Rotating Radius | 261mm |
| Automatic Height Measurement | Optional |
| Max Height | 607mm |
| Max Length | 376mm |
| Max Width | 161mm |
| High Pressure Tube Inlet Thread | 1/4 Inch |
Advanced 5 Axis Angle Compensation Technology
This CNC waterjet 5 axis head features advanced angle compensation technology that automatically adjusts the cutting angle during operation. Traditional waterjet cutting often produces taper on thick materials, which affects dimensional accuracy and edge quality.
The intelligent angle compensation system continuously corrects the cutting path to minimize taper, resulting in straighter edges, improved dimensional accuracy, and superior finished product quality.
Aerospace Grade Precision Cutting
This aerospace waterjet cutting head is engineered for industries requiring extremely high precision and repeatability. The advanced multi-axis motion system enables accurate processing of aerospace components, structural parts, titanium alloys, aluminum alloys, composite materials, and engineered materials.
The ability to maintain precise cutting angles and excellent edge quality helps reduce secondary machining operations and improve manufacturing efficiency.
Ultra High Pressure Abrasive Cutting Performance
The industrial waterjet cutting head is designed to operate with ultra-High Pressure Waterjet Pumps and abrasive cutting systems.
Its optimized internal flow design helps maintain a stable abrasive stream and consistent cutting performance across a wide range of materials including stainless steel, carbon steel, aluminum, titanium, aerospace alloys, marble, granite, glass, ceramic tiles, and composite materials.
Superior Edge Quality and Reduced Taper
The combination of 5-axis motion control and dynamic angle compensation technology helps achieve smoother cutting surfaces and more accurate dimensions.
By reducing taper and improving cutting consistency, manufacturers can significantly reduce grinding, polishing, machining, and other secondary finishing processes.
Applications of CNC Waterjet 5 Axis Heads
- Aerospace Components
- Aircraft Structural Parts
- Titanium Alloy Cutting
- Automotive Manufacturing
- Metal Fabrication
- Stone and Marble Processing
- Glass Cutting
- Ceramic Tile Cutting
- Composite Material Manufacturing
- Industrial Custom Fabrication
Durable Industrial Construction
Manufactured using high-quality materials and precision-engineered components, this CNC waterjet 5 axis head is designed for long-term operation under demanding industrial conditions.
The wear-resistant structure helps maintain cutting accuracy while reducing maintenance frequency and operating costs.
Compatible with Multiple CNC Waterjet Systems
The industrial waterjet cutting head can be integrated with various CNC Waterjet Machines, 5-axis waterjet systems, and automated cutting solutions.
It is suitable for new equipment installations, production line upgrades, and replacement projects. KUNDA can provide customized configurations and technical support according to customer requirements.
Frequently Asked Questions
What is a CNC waterjet 5 axis head?
A CNC waterjet 5 axis head is a multi-axis cutting head that allows automatic angle adjustment during cutting. It is commonly used for bevel cutting, taper compensation, and complex contour processing.
What is angle compensation technology?
Angle compensation technology automatically adjusts cutting angles to reduce taper and improve cutting precision during waterjet processing.
What materials can this cutting head process?
It can process stainless steel, carbon steel, aluminum, titanium, aerospace alloys, stone, glass, ceramic, composites, plastics, and many other industrial materials.
Can this cutting head be installed on existing waterjet machines?
Yes. The cutting head can be integrated with many CNC waterjet systems and ultra-High Pressure Pump configurations.
Related Waterjet Products
3D Waterjet Cutting Head | 5 Axis Waterjet Cutting Machine | High Pressure Waterjet Pump | Robot Waterjet Cutting Machine | Waterjet Spare Parts
Why Choose KUNDA Waterjet Components
KUNDA specializes in providing professional Waterjet Cutting Solutions and high-quality spare parts for global customers.
We can supply CNC waterjet 5-axis heads, dynamic taper compensation systems, abrasive cutting heads, high-pressure Intensifier Pumps, Cnc Waterjet Machines, Robotic Waterjet systems, accumulators, high-pressure tubing, spare parts, and customized automation solutions.
With professional technical support, OEM customization services, and fast global delivery, KUNDA helps customers improve cutting precision, reduce downtime, and maximize production efficiency.
Contact Us
If you are looking for reliable CNC waterjet 5 axis heads, aerospace waterjet cutting heads, or customized industrial waterjet solutions, please feel free to contact KUNDA for more information and professional support.
