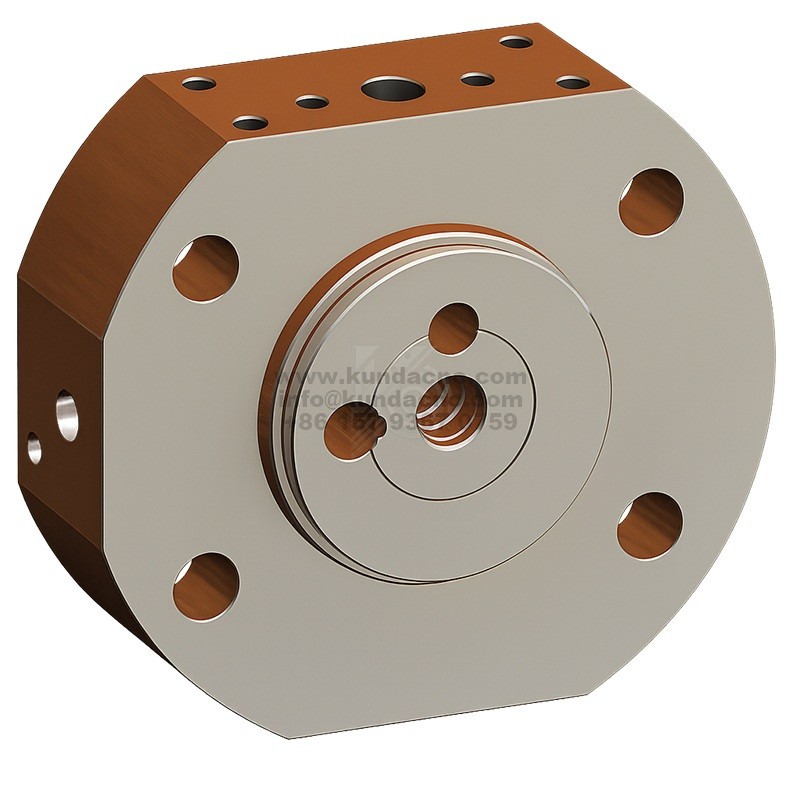

Connection Flange CP022016/172 Abrasive Glass Water Jet Parts

Short Description:

Connection Flange
5100114
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 13.2 kg
Working Pressure: 4137 bar
Material: Stainless Steel

INQUIRY

Details

Connection Flange CP022016/172 Abrasive Glass Water Jet Parts

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring
1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring
4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

The Connection Flange CP022016/172 is a key fastening component in the high-pressure system of a Water Jet Cutting Machine, ensuring a stable connection between the high-pressure piping and the intensifier or valve body. Its structural design ensures a secure and airtight seal even under ultra-high-pressure conditions, effectively preventing leaks and loosening caused by water flow shock or vibration.

Function: Ensures a secure connection between the high-pressure piping and core components, ensuring stable transmission of high-pressure water flow.
Applicable Locations: Widely used at the outlet of the intensifier, high-pressure piping, and valve body connections.
Material: Constructed of high-strength stainless steel or alloy steel, it offers high-pressure and corrosion resistance, along with a long service life.
Replacement Period: This durable component generally has a long service life, but any signs of wear, corrosion, or deformation should be promptly replaced to ensure stable system operation.

The high-quality Connection Flange CP022016/172 significantly improves the sealing and safety of the high-pressure system and is a crucial component for the long-term, reliable operation of Waterjet Cutting Equipment.
