In modern industrial manufacturing, Abrasive Waterjet Machine technology has established itself as an indispensable solution due to its exceptional machining precision, cold-cutting process (no heat-affected zone), and broad material compatibility. But what exactly constitutes a fully functional Abrasive Waterjet Glass Cutting Machine system? What roles do the individual components play in ensuring stable, efficient operation?

This article provides a comprehensive overview of the core elements that make up a Waterjet Cutting System. By examining its overall architecture, we aim to offer industry professionals a deeper understanding of the fundamental principles and key mechanisms that enable Waterjet Equipment to perform reliably and effectively.

Abrasive Waterjet Metal Cutting Machine System:

A waterjet cutting system, in simple terms, is an advanced industrial solution that utilizes ultra-high-pressure water jets to cut materials. Its working principle is based on pressurizing ordinary water to extremely high levels through specialized technology, and then channeling it through a precision-engineered nozzle to form a highly focused, high-velocity jet stream. This jet is capable of cutting a wide range of materials with millimeter-level accuracy, making it an ideal choice for high-precision machining.

For materials with higher hardness, the system can be further enhanced by introducing abrasive particles—such as high-hardness garnet—into the water stream. This creates an abrasive waterjet cutting system with significantly increased cutting power, greatly expanding its application range and improving overall processing efficiency.

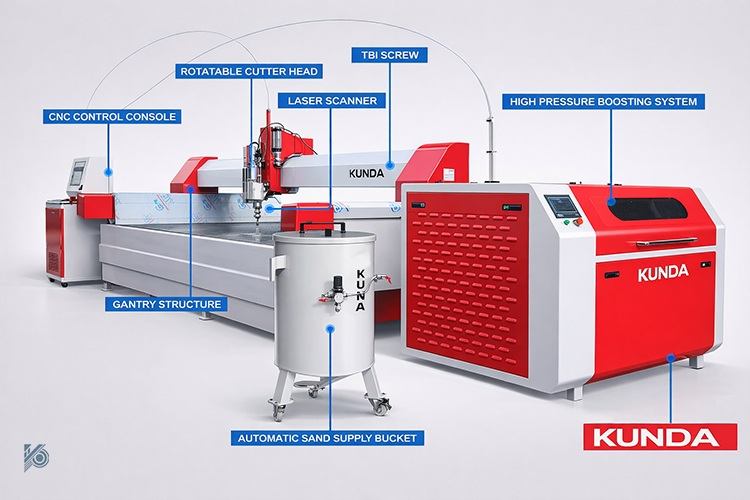

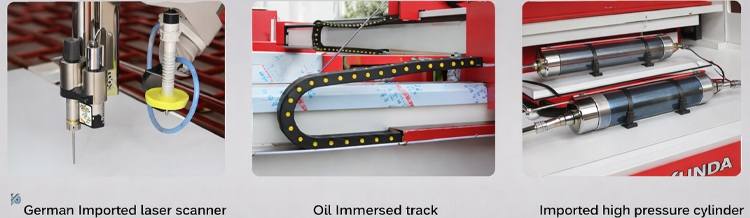

Key Components of a Abrasive Waterjet Stone Cutting Machine System：

A high-performance and reliable waterjet cutting system relies on the coordinated operation of multiple core components. Each element plays a critical role in ensuring precision, efficiency, and long-term stability.
1. Waterjet Intensifier Pump:
The intensifier pump is widely regarded as the “heart” and central power unit of the entire waterjet system. Its primary function is to utilize advanced hydraulic intensification technology to boost ordinary water pressure to extremely high levels—typically ranging from 300 to 420 MPa (60,000 to 90,000 PSI).
Without a stable and continuous ultra-high-pressure supply, the system cannot operate effectively.
Provides a consistently stable ultra-high-pressure water source
Directly determines cutting capability, penetration depth, and efficiency
Plays a decisive role in system reliability and service life
2. High-Pressure Accumulator:
The accumulator functions as a pressure regulator and stabilizer within the system. It absorbs and mitigates pressure fluctuations generated by the pump, ensuring smooth and consistent output.
Effectively buffers pressure shocks and reduces pulsation
Enhances cutting stability and consistency
Protects critical components such as tubing and nozzles, extending lifespan
3. High-Pressure Tubing System:
The high-pressure tubing system serves as the essential link between the pump and the cutting head, safely transporting ultra-high-pressure water to the cutting point.
Due to extreme operating pressures, these tubes must meet rigorous engineering standards:
Exceptional structural strength to withstand extreme pressure
Superior pressure resistance for long-term durability
Excellent sealing performance to prevent any leakage
Ensures safe and efficient transmission of high-pressure energy
Maintains continuous and stable system operation

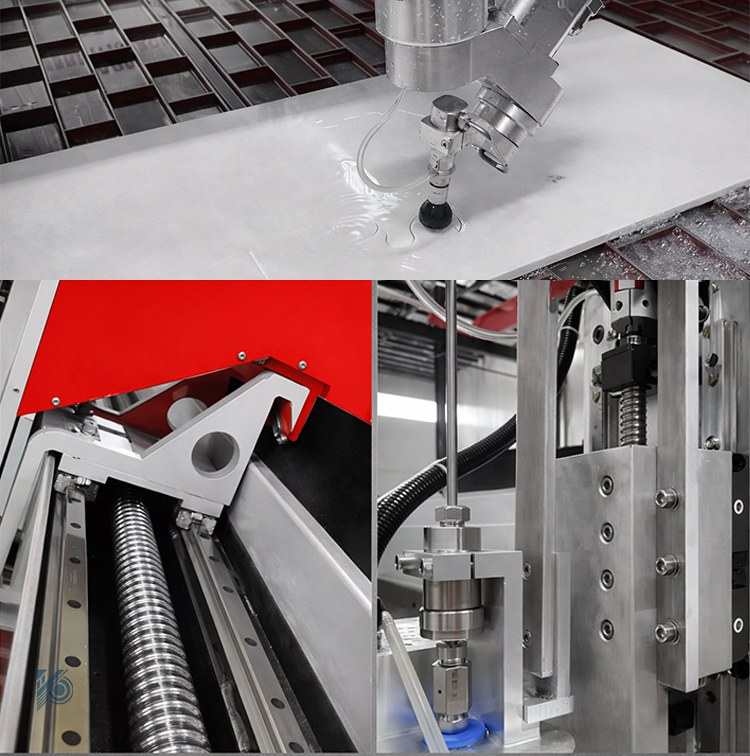

4. Cutting Head Assembly:
The cutting head is the component that directly interacts with the workpiece and performs the actual cutting operation. It typically consists of several precision-engineered parts:
Orifice (jewel nozzle): Focuses the high-pressure water into a fine jet
Mixing chamber: Where water and abrasive (if used) are combined
Focusing tube: Aligns and stabilizes the abrasive jet stream
During operation, ultra-high-pressure water is accelerated through the orifice, mixed with abrasive material if required, and forms a powerful high-speed jet.
Generates a precise, high-velocity cutting stream
Enables high-precision cutting across various materials
5. Abrasive Delivery System：
For cutting hard materials such as metals, stone, or ceramics, the abrasive feeding system becomes essential. It delivers garnet or similar abrasives into the mixing chamber.
Significantly enhances cutting power
Expands application range to hard and dense materials
Ensures consistent abrasive flow for uniform cutting quality
6. CNC Control System:
The CNC (Computer Numerical Control) system is responsible for automation and precision control. It governs cutting paths, speeds, and accuracy.
Precisely controls tool path and motion
Improves accuracy and repeatability
Enables complex geometrical cutting operations
7. Cutting Table:
The cutting table provides physical support for the workpiece and collects water and debris during operation. Common configurations include:
Gantry type: Large cutting area and high stability
Cantilever type: Flexible operation for specific applications
Fully enclosed type: Reduces noise and water splash
Provides stable support for various materials
Ensures a controlled and safe cutting environment
8. Water Quality Management & Filtration System：
Water quality directly impacts system performance and component lifespan. Therefore, filtration or water softening systems are essential.
Reduces wear on nozzles and seals
Enhances system reliability and stability
Lowers maintenance costs and extends service life
9. Integrated System Coordination：
The operation of a waterjet system is a highly coordinated process:
First, the intensifier pump pressurizes water to ultra-high levels.
Then, the accumulator stabilizes the pressure.
Next, high-pressure tubing safely delivers the water to the cutting head.
At the cutting head, the orifice converts it into a high-speed jet, which mixes with abrasive if required.
Finally, the CNC system precisely guides the cutting path.

This seamless integration of components forms a highly efficient, precise, and reliable industrial cutting system.

The Value of Understanding Affordable Cnc Waterjet Cutter System Architecture：

For companies that are planning to purchase or are already operating Waterjet Cutting Equipment, a thorough understanding of the system’s internal structure is not just beneficial—it is essential for achieving optimal performance and long-term returns.
Enables more informed and precise equipment selection based on specific production requirements
Supports optimization of existing system configurations, allowing businesses to unlock maximum performance
Reduces operational and maintenance costs through proper setup, usage, and preventive maintenance
Enhances production efficiency, particularly in high-precision or high-volume applications, where system configuration directly impacts both quality and cost-effectiveness
A fully functional Abrasive Water Jet Machine system is the result of precise coordination among multiple critical components. These include a high-performance intensifier pump, an efficient accumulator, durable high-pressure tubing, a precision-engineered cutting head, a reliable abrasive delivery system, and an intelligent CNC control system. Each component plays an indispensable role in ensuring smooth and stable operation.
As Affordable Water Jet Cutter technology continues to evolve, these core components are undergoing continuous innovation and refinement. This ongoing advancement is driving waterjet systems toward higher cutting efficiency, superior precision, and increasingly intelligent automation, shaping the future of modern industrial cutting solutions.
