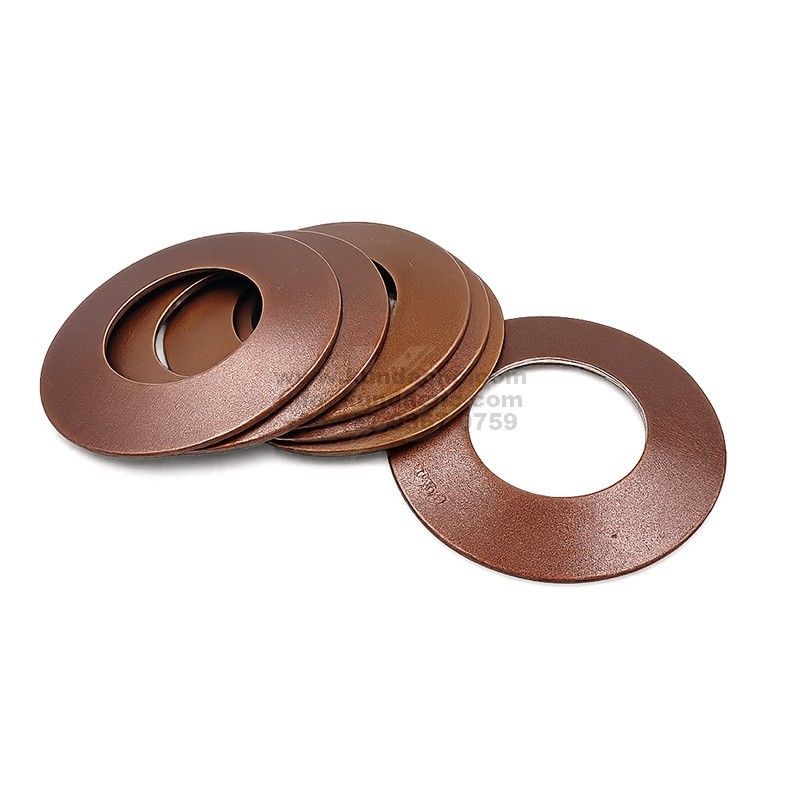

Cup Spring 560285150/255 Abrasive Waterjet Cutting Machine Parts

Short Description:

Cup Spring
4100022, 107070, HD400114
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.15 kg
Material: Steel

INQUIRY

Details

Cup Spring 560285150/255 Abrasive Water Jet Cutting Machine Parts

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring
1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring
4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

The Cup Spring 560285150/255 is a commonly used elastic element in waterjet intensifiers and high-pressure valve systems. Its disc-shaped design allows it to withstand high loads and provide stable preload within confined spaces. It is widely used in valve bodies, sealing components, and fastening systems, ensuring stability and sealing performance under ultra-high-pressure operating environments.

Function: Provides elastic preload and cushioning, maintaining stable operation of valve bodies or sealing components under high pressure.
Applicable Locations: High-pressure valve components, sealing systems, and critical connections in waterjet intensifiers.
Material: Made of high-quality spring steel or alloy steel, it offers high-pressure, fatigue, and impact resistance.
Replacement Interval: While it has a long service life, it requires timely replacement if fatigue or deformation occurs during long-term operation to prevent system performance degradation.

The high-quality Cup Spring 560285150/255 significantly improves the reliability and safety of high-pressure components and is a crucial component for the efficient operation of waterjet cutting machines.
