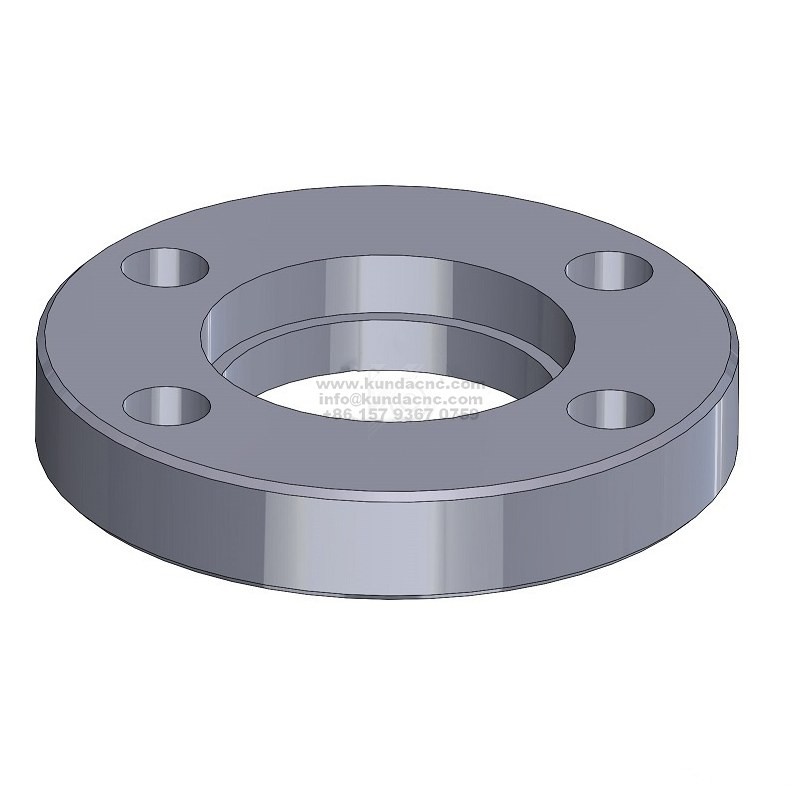

Flange CP022018/563 Abrasive Water Jet Parts For Sale

Short Description:

Flange
MJ0040400, 5100097, 106564
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 3.8 kg
Working pressure: 4137 bar
Material: Stainless steel

INQUIRY

Details

Flange CP022018/563 Abrasive Water Jet Parts For Sale

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring
1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring
4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

The CP022018/563 flange is a key connector in the high-pressure system of a Water Jet Cutting Machine, providing a secure connection between the high-pressure piping and the intensifier or valve body. Through bolted fastening, it withstands the impact of high-pressure water flow and the vibrations of long-term operation, ensuring the system remains secure and sealed even in high-pressure environments.

Function: Provides a stable connection between the high-pressure piping and key components, ensuring system sealing and the safe transmission of high-pressure water flow.
Applicable Locations: Connections between the intensifier, high-pressure piping, and valve body of a waterjet cutting machine.
Material: Typically constructed of high-strength stainless steel or alloy steel, it offers high-pressure, corrosion, and fatigue resistance.
Replacement Interval: While durable and long-lasting, it requires timely replacement in the event of wear or corrosion during extended operation to maintain system safety and stability.

The high-quality CP022018/563 flange significantly improves the reliability and sealing performance of the high-pressure piping and is essential for the continued efficient operation of the waterjet cutting machine.
