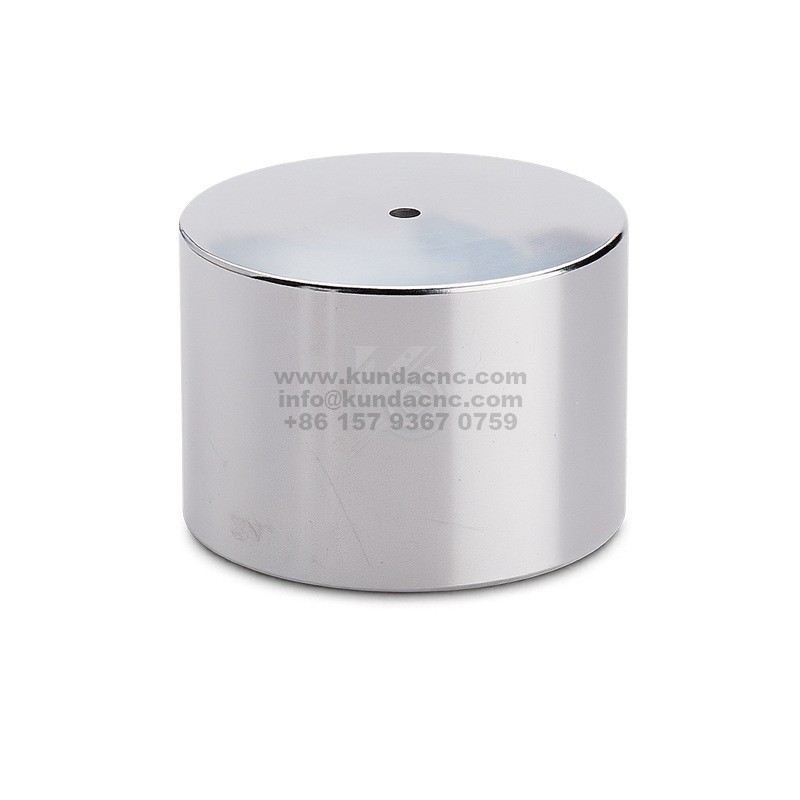

Valve Seat WJ055003/168 Good Quality Waterjet Parts For Sale

Short Description:

Valve Seat
1-16396
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.01 kg.
Operating pressure: 4137 bar
Material: Stainless steel

INQUIRY

Details

Valve Seat WJ055003/168 Good Quality Waterjet Parts For Sale

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring
1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring
4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

The WJ055003/168 Valve Seat is a core sealing component in the high-pressure check valve of a waterjet intensifier. It works with the valve ball to form a reliable sealing interface, ensuring that high-pressure water flows only in the intended direction and preventing backflow. The wear resistance and sealing performance of the valve seat directly impact the efficiency and service life of the check valve.

Function: Provides a precise sealing contact surface with the valve ball, achieving unidirectional flow control of high-pressure water.
Applicable Location: Installed in the high-pressure check valve assembly of a waterjet intensifier.
Material: Often manufactured from high-strength, wear-resistant materials such as tungsten carbide or ceramic, it offers excellent resistance to high pressure and erosion.
Replacement Period: This is a typical consumable part and should be replaced regularly based on the equipment's operating pressure, age, and maintenance schedule to maintain optimal sealing performance.

The high-quality WJ055003/168 Valve Seat significantly improves the sealing reliability of the check valve and reduces the risk of leakage, making it a critical component for the long-term, stable operation of Water Jet Cutting Machines.
