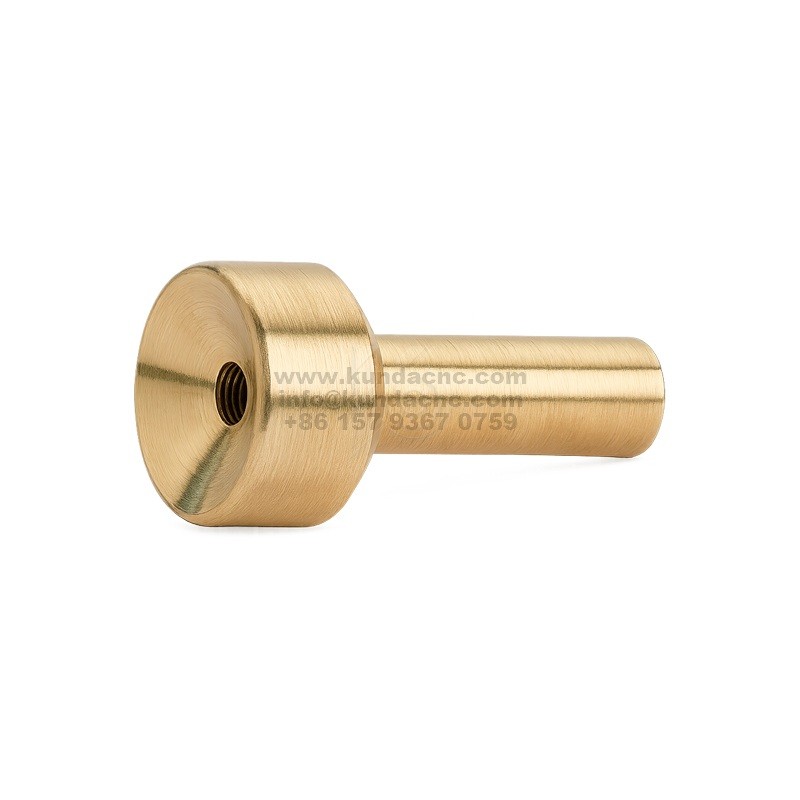

Guide Bushing WJ055023/527 For Glass Waterjet Machine Parts Supplier

Short Description:

Guide Bushing
1-18265
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.001 kg.
Working pressure: 4137 bar
Material: Brass

INQUIRY

Details

Guide Bushing WJ055023/527 For Glass Waterjet Machine Parts Supplier

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring
1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring
4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

The WJ055023/527 Guide Bushing is a precision guide component in the plunger assembly of a waterjet intensifier. It ensures the plunger maintains a correct, straight trajectory during reciprocating motion within the high-pressure cylinder. It effectively reduces plunger deflection and vibration, and prevents direct friction between the plunger and the cylinder, thereby extending the service life of the plunger and the sealing system.

Function: Provides precise guide support for the plunger, reducing deflection and wear during operation.
Applicable Location: Installed between the high-pressure cylinder and plunger of a waterjet intensifier.
Material: Typically made of high-strength alloy or wear-resistant composite material, it offers excellent high-pressure resistance, low friction, and fatigue resistance.
Replacement Period: This is a consumable part and should be inspected and replaced regularly based on operating time and maintenance schedule to ensure smooth operation of the plunger assembly.

High-quality WJ055023/527 Guide Bushings significantly improve plunger system stability and reduce maintenance costs, making them essential components for efficient and stable Water Jet Cutting Machine operation.
