Support Ring CP020032/562 Abrasive Glass Waterjet Machine Parts Supplier

Short Description:

Support Ring
MJ0040079, 5100112, 106663
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.001 kg
Working pressure: 4137 bar
Material: Stainless steel

INQUIRY

Details

Support Ring CP020032/562 Abrasive Glass Waterjet Machine Parts Supplier

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring
1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring
4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

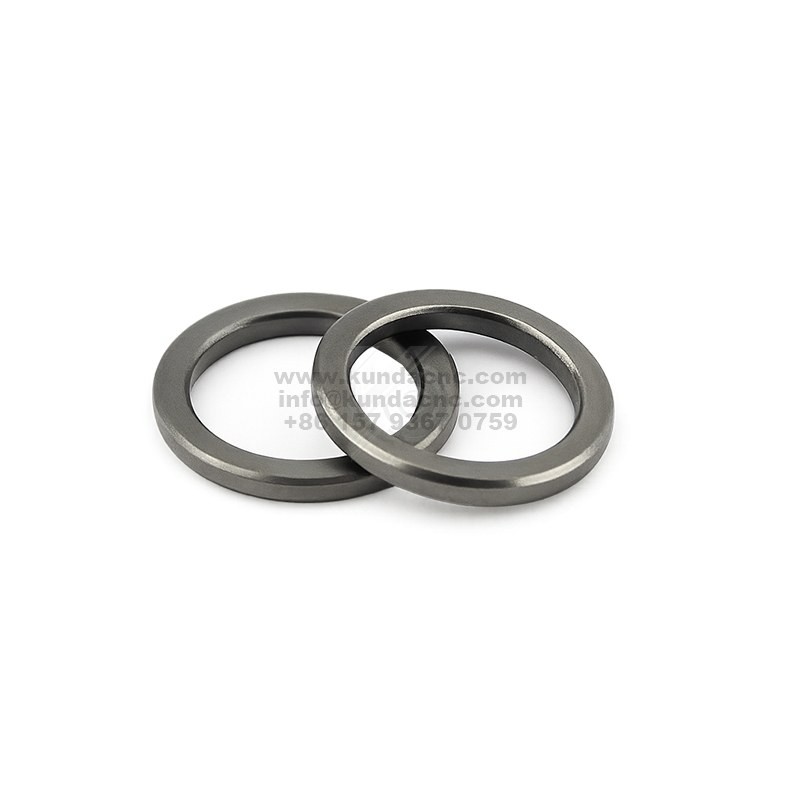

The Support Ring CP020032/562 is a key support component in the high-pressure seal system of a waterjet intensifier, providing positional support and support within the seal assembly. It prevents seal extrusion or deformation under high pressure, ensuring the stability of the seal structure and extending the service life of the seal and plunger.

Function: Provides support and positional support for the seal element, ensuring stability during high-pressure operation.
Applicable Location: Installed within the high-pressure seal assembly of a waterjet intensifier, in conjunction with the seal ring and backup ring.
Material: Made of high-strength polymer or engineering plastic, it offers high-pressure, wear-resistant, and deformation-resistant properties.
Replacement Period: As a consumable part, it should be regularly inspected and replaced based on operating hours and maintenance schedules to maintain the reliability of the sealing system.

The high-quality Support Ring CP020032/562 effectively enhances the durability and safety of the intensifier seal system and is a critical component for the long-term stable operation of Water Jet Cutting Machines.
