Guiding CP020031/473 Abrasive Water Jet Machine Parts For Sale

Short Description:

Guiding
MJ0040082, 5100129, 106646
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.001 kg
Working pressure: 4137 bar
Material: Stainless steel

INQUIRY

Details

Guiding CP020031/473 Abrasive Water Jet Machine Parts For Sale

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring
1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring
4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

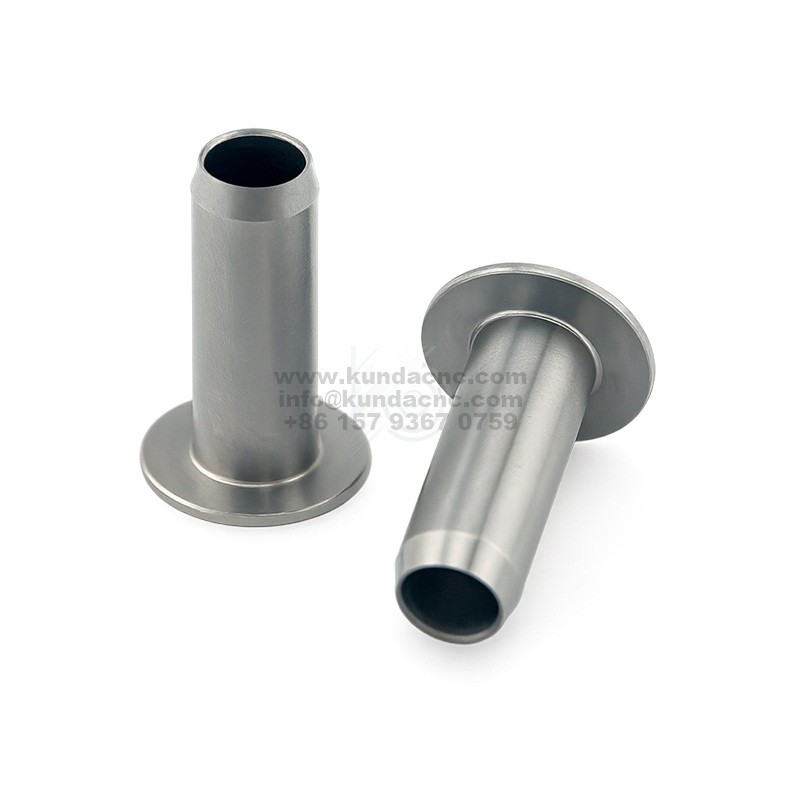

The Guiding CP020031/473 is a guide component in the plunger assembly of a waterjet intensifier, ensuring the plunger maintains a correct, straight trajectory as it reciprocates within the high-pressure cylinder. It effectively reduces plunger deflection and vibration, preventing direct friction between the plunger and the cylinder, thereby reducing wear and extending the life of the seal assembly and plunger.

Function: Provides precise guidance for the plunger, ensuring stable operation in high-pressure environments.
Applicable Location: Installed between the high-pressure cylinder and plunger of a waterjet intensifier.
Material: Made of high-strength composite materials or wear-resistant engineering plastics, it offers high-pressure resistance, low friction, and fatigue resistance.
Replacement Period: This is a consumable part and should be inspected and replaced regularly according to the equipment's operating hours and maintenance schedule to maintain smooth system operation.

The high-quality Guiding CP020031/473 effectively improves the stability of the plunger assembly and reduces maintenance frequency, making it a critical component for ensuring the long-term, efficient operation of a Water Jet Cutting Machine.
