Union Suction Side CP022043/844 Tile Waterjet Parts In Stock

Short Description:

Union Suction Side
1-18280
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA

INQUIRY

Details

Union Suction Side CP022043/844 Tile Waterjet Parts In Stock

Part Number	Alternative models	Description
1-16386	CP022015/527	Back Ring
1-18266	K016/660	Ball, Dia. 6
1-16390	CP022042/593	Lens

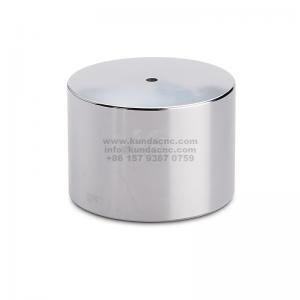

1-16395	CP022046/593	Valve Seat
1-16388	CP022010/527	Bearing Bush
1-18264	OR0043024/151	O-Ring, 4.3 x 2.4

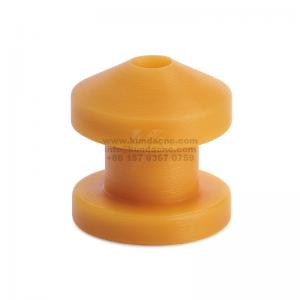

1-18263	WJ070009/150	HP Gasket
1-18293	CP022100/220	HP Seal Kit
1-16393	CP022040/591	Valve Body
1-16389	CP022009/779	HP Cylinder
1-16391	XST17/220	Rod Sealing
1-18292		Center Section Rebuild Kit
1-18287	CP022066/220	Plunger Complete
1-18291	CP022109/844	Union Suction Side Complete
1-18289	CP022047/844	Union Pressure Side Complete
1-18280	CP022043/844	Union Suction Side
1-18281	CP022044/844	Union Pressure Side
1-18282	XF35/220	Rod Wear Ring
1-18269	9704521/220	Quad Ring
1-16387	CP022012/780	Back Ring

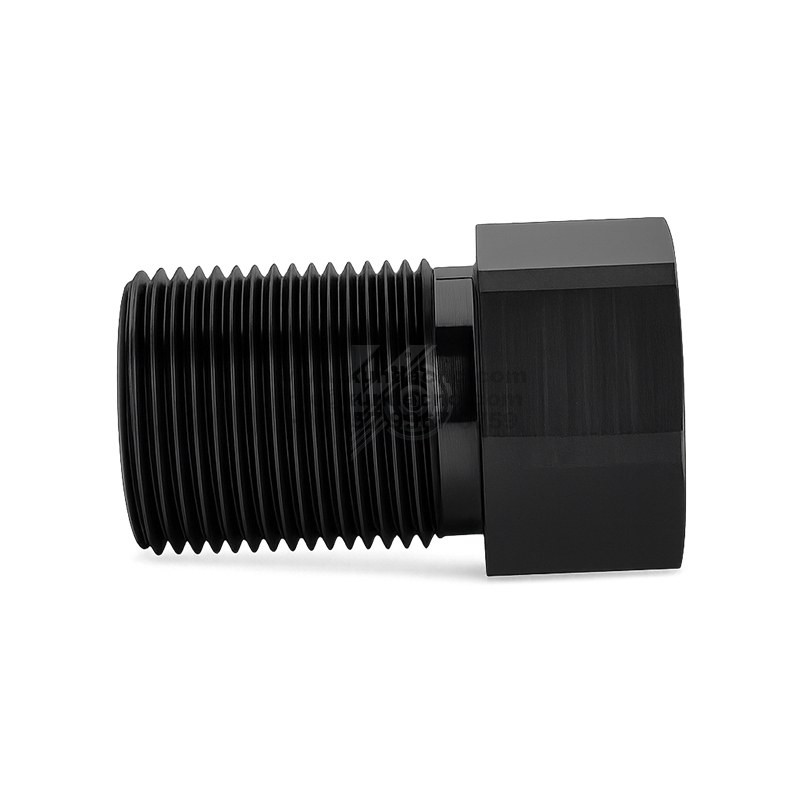

The Union Suction Side CP022043/844 is a crucial connector at the waterjet intensifier's water intake, providing a secure connection between the low-pressure water source and the intensifier's water inlet. It ensures smooth low-pressure water flow into the intensifier system and, through reliable sealing, prevents leaks or loosening during operation, thereby ensuring continuous and stable intensifier operation.

Function: Provides a stable connection between the low-pressure waterline and the intensifier, ensuring a stable seal and water supply at the intake end.
Applicable Location: Installed at the low-pressure water inlet of a waterjet intensifier.
Material: Made of pressure-resistant stainless steel or alloy, it offers excellent corrosion and fatigue resistance, suitable for long-term operation.
Replacement Period: While it has a long lifespan, it should be replaced promptly if used frequently or if wear or corrosion occurs to ensure smooth water supply and reliable sealing.

The high-quality Union Suction Side CP022043/844 improves the intensifier's water intake efficiency and reduces equipment maintenance risks, making it a key component for the long-term, stable operation of a Water Jet Cutting Machine.
