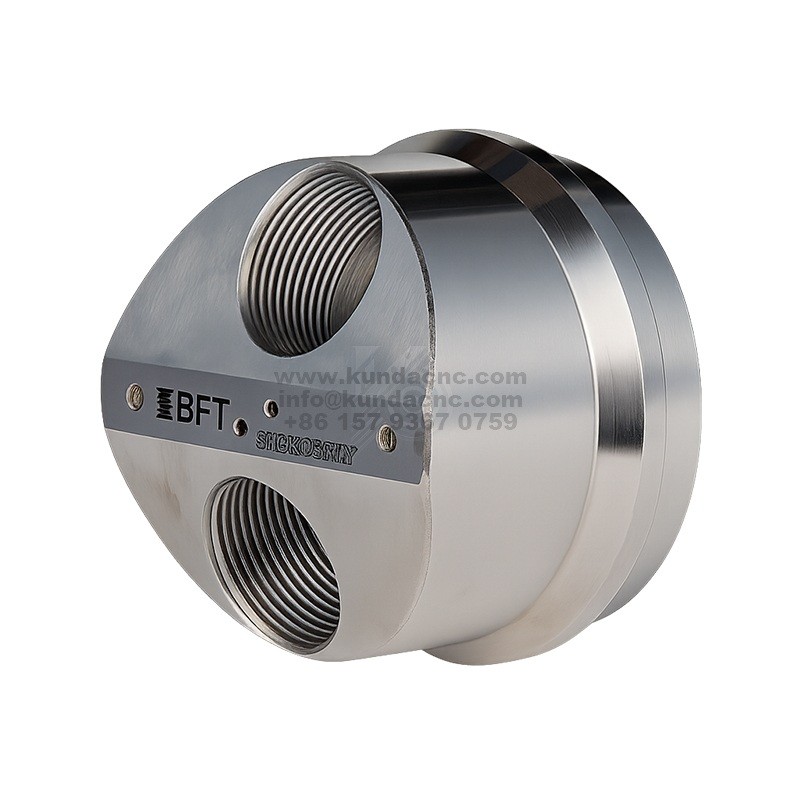

Valve Body Dual Core HT022033/591 New Waterjet Parts Supplier

Short Description:

Valve Body Dual Core
MJ0040235, 5300123
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 2.5 kg
Working Pressure: 4137 bar
Material: Stainless steel

INQUIRY

Details

Valve Body Dual Core HT022033/591 New Waterjet Parts Supplier

Part Number	Alternative models	Description
MJ0380264	EL130200	Sensor
4204812	F1000401-220	Spring
900630	HD210200	Seal Kit for Cutting Head
	HD230700	Protective Cap
4100108	HPU1329/220	Center Ring
106644	HT022004/473	Piston
	HT022006/563	Flange
106568	HT022008/172	Connection Flange
5100117	HT022009/172	Connection Flange
5300115	HT022026/255	Сup spring
5102235	HT022027/527	Bearing Bush
5102040	HT022032/527	Back Ring
5300123	HT022033/591	Valve Body Dual Core
MJ0040236	HT022040/779	Hp Cylinder
4100731	HT022044/103	Retaining Ring
	HT022051/461	Spacer Ring
5102078	HT022061/337	Mounting Tool Nut
107138	HT022070/220	Hp Seal Assembly Dual Core

The Valve Body Dual Core HT022033/591 is the core component of the high-pressure check valve in a waterjet intensifier. Its dual-core design provides stable mounting and support for the valve ball, valve seat, and sealing element under ultra-high-pressure operating conditions. This dual-core configuration enhances fluid control stability and sealing reliability, ensuring unidirectional transmission of high-pressure water flow and preventing backflow.

Function: Serving as the core pressure-bearing structure of the valve assembly, it provides precise support for the valve ball and valve seat, achieving unidirectional flow control of high-pressure water.
Applicable Location: Installed in the high-pressure check valve system of a waterjet intensifier.
Material: Constructed from high-strength alloy steel, precision machined and heat-treated, it offers high-pressure, erosion, and fatigue resistance.
Replacement Interval: As a core pressure-bearing component, it has a long lifespan. However, it should be replaced promptly if it experiences wear or cracks during extended operation to prevent system performance degradation.

The high-quality Valve Body Dual Core HT022033/591 significantly improves the sealing and operational stability of high-pressure valve systems and is a critical component for ensuring the safe and efficient operation of Water Jet Cutting Machines.
