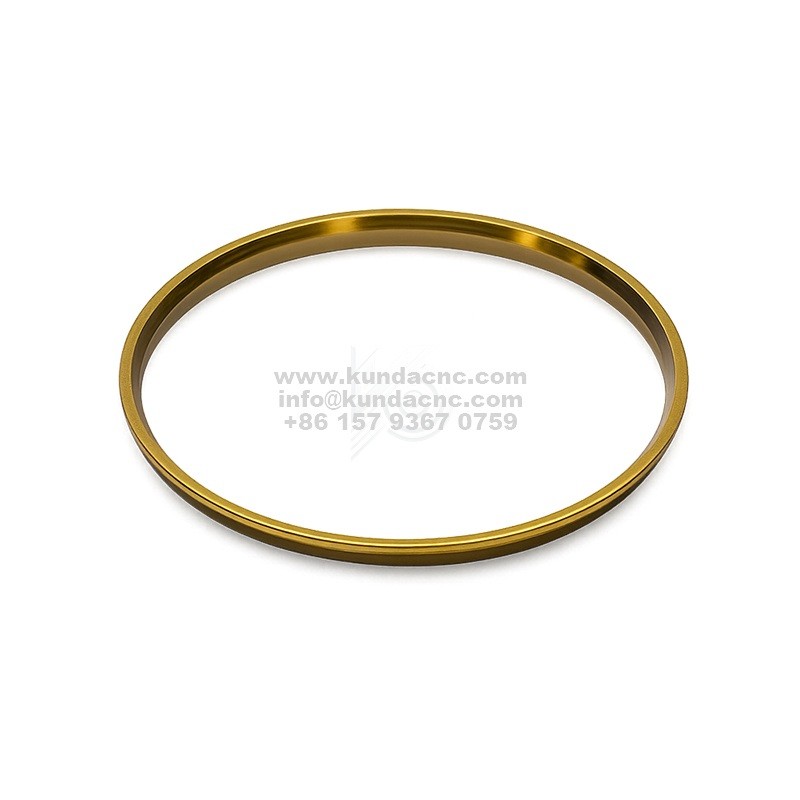

Back Ring HT022032/527 Abrasive Waterjet Cutting Machine Parts In Stock

Short Description:

Back Ring
5102040
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.001 kg
Working Pressure: 4137 bar
Material: Stainless Steel

INQUIRY

Details

Back Ring HT022032/527 Abrasive Water Jet Cutting Machine Parts In Stock

Part Number	Alternative models	Description
MJ0380264	EL130200	Sensor
4204812	F1000401-220	Spring

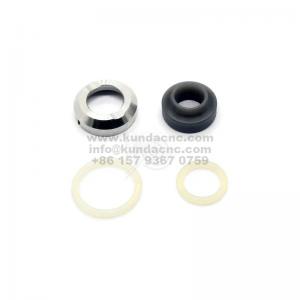

900630	HD210200	Seal Kit for Cutting Head
	HD230700	Protective Cap
4100108	HPU1329/220	Center Ring
106644	HT022004/473	Piston
	HT022006/563	Flange
106568	HT022008/172	Connection Flange
5100117	HT022009/172	Connection Flange
5300115	HT022026/255	Сup spring
5102235	HT022027/527	Bearing Bush
5102040	HT022032/527	Back Ring
5300123	HT022033/591	Valve Body Dual Core

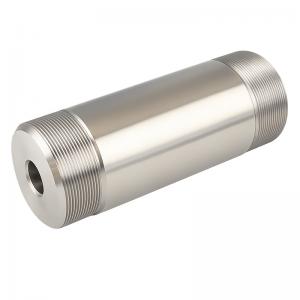

MJ0040236	HT022040/779	Hp Cylinder
4100731	HT022044/103	Retaining Ring
	HT022051/461	Spacer Ring
5102078	HT022061/337	Mounting Tool Nut
107138	HT022070/220	Hp Seal Assembly Dual Core

The HT022032/527 back ring is a critical support component in the high-pressure sealing system of a waterjet intensifier. It is primarily used in conjunction with an O-ring or sealing ring to provide additional support under high-pressure conditions, preventing seal extrusion or deformation. It enhances the stability and durability of the sealing system, thereby extending the service life of the seal and plunger assembly.

Function: Provides support and protection for the seal, preventing failure under high pressure.
Applicable Location: Installed within the intensifier's high-pressure sealing assembly, in conjunction with the sealing ring or O-ring.
Material: Typically made of a high-pressure, wear-resistant polymer or engineering plastic with excellent extrusion resistance.
Replacement Period: This is a typical consumable part and should be inspected and replaced regularly based on operating time and maintenance schedule to maintain the reliability of the sealing system.

The high-quality HT022032/527 back ring effectively improves the operating stability of the sealing system and is a critical component for ensuring the long-term safe and efficient operation of the waterjet cutting machine.
