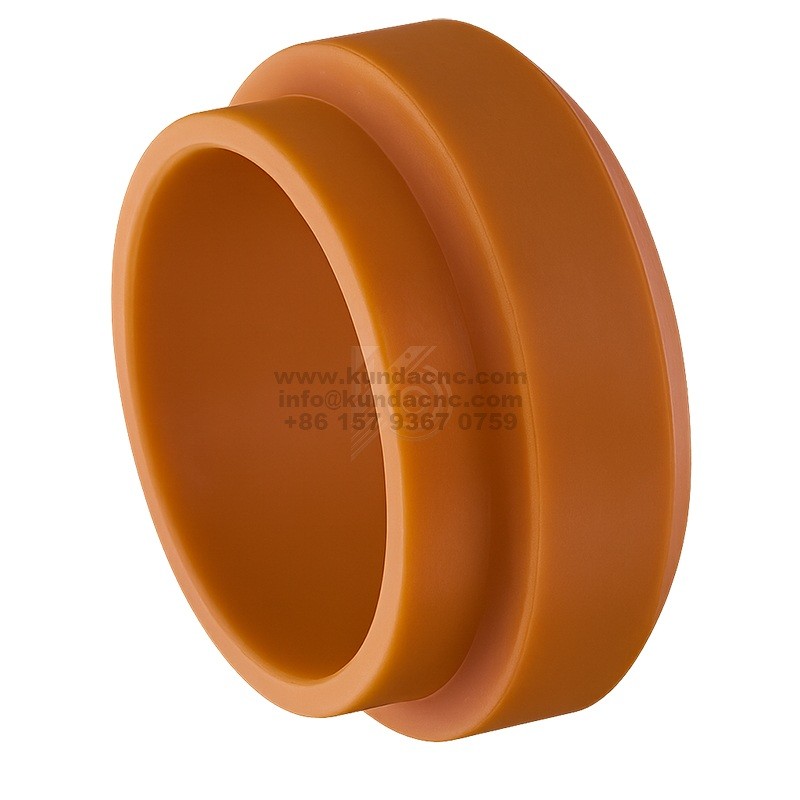

Sealing Ring CP020011/150 Abrasive Water Jet Parts In Stock

Short Description:

Sealing Ring
4101364
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 0.001 kg
Working Pressure: 4137 bar
Material: Plastic

INQUIRY

Details

Sealing Ring CP020011/150 Abrasive Water Jet Parts In Stock

Part Number	Alternative models	Description
1-18268	CP020052/220	Safety Bolt
1-16394	CP022045/775	Valve Insert
1-16396	WJ055003/168	Valve Seat
1-18265	WJ055023/527	Guide Bushing
1-18262	WJ070005/551	Valve Stem
4100392	003001008/220	Gear Ring

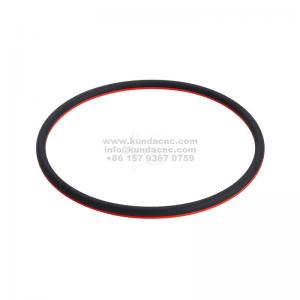

1-18276	034858/220	Protective O-Ring
	137701/220	Compact Sealing Set
106808	315163080/255	Disc Spring
4100248	34203002/220	Ball
4100021	5219303-220	Spring
107070	560285150/255	Cup Spring
	AB080300	Tee abrasive
4101364	CP020011/150	Sealing Ring
5100025	CP020012/591	Backup Ring
5102089	CP020023/593	Valve Insert
MJ0040080	CP020030/562	Books
106646	CP020031/473	Guiding
106663	CP020032/562	Support Ring
106778	CP020033/255	Compression Spring
106777	CP020034/255	Compression Spring
5102171	CP020066/527	Backup Ring
5102203	CP020071/593	Sealing Cone
5102091	CP020074/593	Sealing Cone
106565	CP022002/190	Cylinder
1-16392	CP022011/150	Sealing Ring
1200395	CP022013/014	Distance Bushing
5100114	CP022016/172	Connection Flange
	CP022017/172	Connection Flange
106564	CP022018/563	Flange

The CP020011/150 Sealing Ring is a key component in the high-pressure sealing system of a waterjet intensifier, ensuring a reliable seal between the plunger and the high-pressure cylinder. Operating in ultra-high-pressure environments, this sealing ring effectively prevents high-pressure water leakage, ensuring stable and efficient intensifier operation.

Function: Provides a sealing barrier between the high-pressure plunger and cylinder, preventing high-pressure water leakage during operation.
Applicable Location: Installed in the high-pressure cylinder seal assembly of a waterjet intensifier.
Material: Manufactured from high-performance polymers or composite materials, it offers high-pressure, wear, and erosion resistance.
Replacement Period: This is a typical consumable part and should be replaced regularly based on operating time and maintenance schedule to maintain sealing performance.

The high-quality CP020011/150 Sealing Ring significantly improves intensifier reliability, reduces downtime and maintenance costs, and is a critical component for the long-term, stable operation of Water Jet Cutting Machines.
