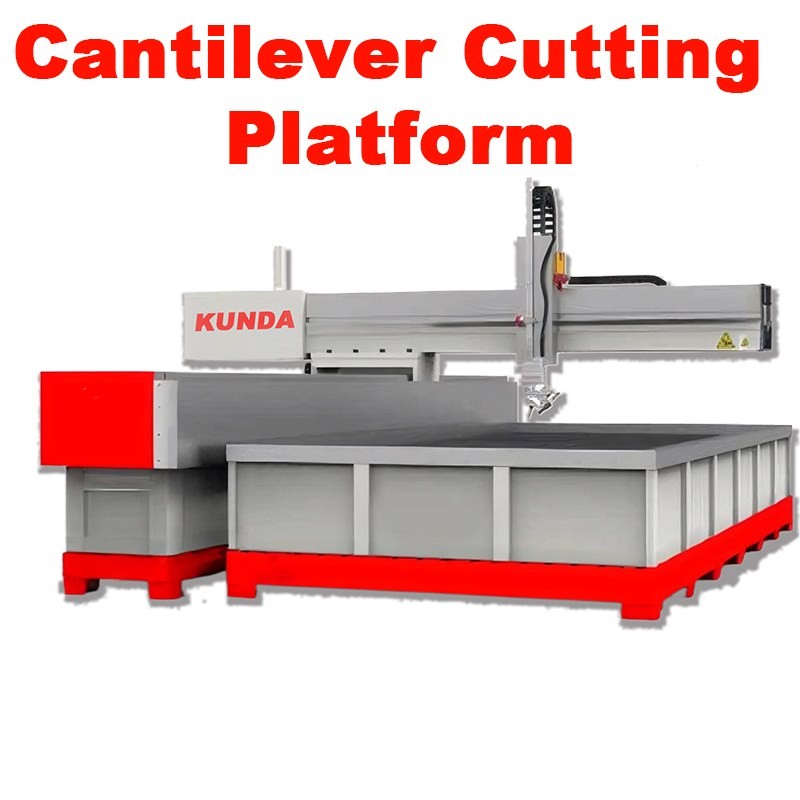

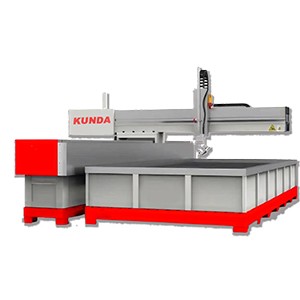

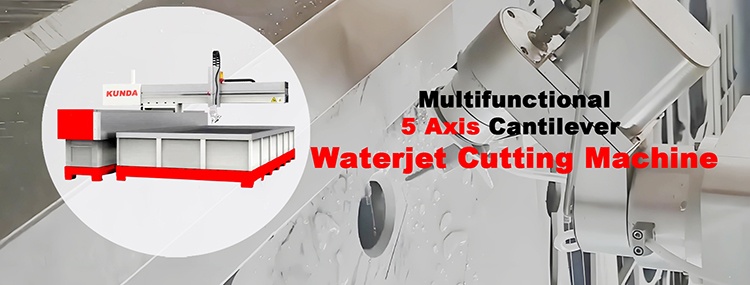

Cantilever Water Jet Cutting Machine refers to a high-pressure Water Jet Cutting Technology that uses a cantilever mechanical structure and combines abrasives. This equipment combines the kinetic energy of high-pressure Water Jets and the grinding effect of abrasives, and can efficiently cut a variety of hard materials (such as metals, stones, composite materials, etc.).
| Model | KD1015 | KD2015 | KD3015 | KD3020 | KD4018 | |
| Structure | Cantilever | |||||
| Cutting Table Size | 1200*1700mm | 2200*1700mm | 3200*1700mm | 3200*2200mm | 4200*2000mm | |
| Stroke | X axis | 1000mm | 2000mm | 3000mm | 3000mm | 4000mm |
| Y axis | 1500mm | 1500mm | 1500mm | 2000mm | 1800mm | |
| Z axis | 130mm | 130mm | 130mm | 130mm | 130mm | |
| Accuracy | Cutting | ±0.1mm | ||||
| Repeatability | ±0.05mm | |||||
| Traverse Speed | 6000-15000mm/min | |||||
| Power Supply | 220v/380v/415v,50/60Hz | |||||
