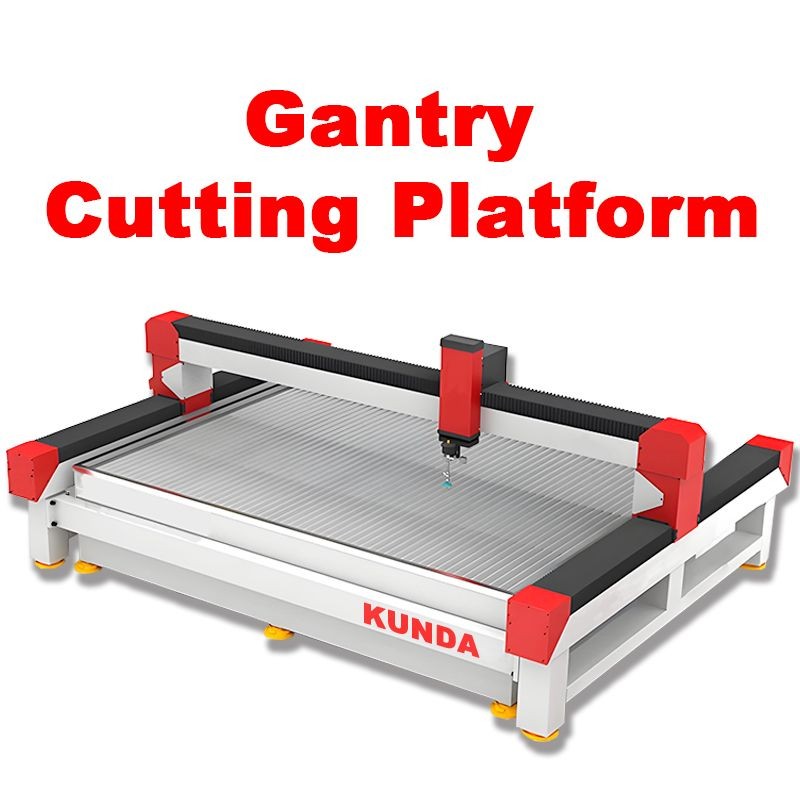

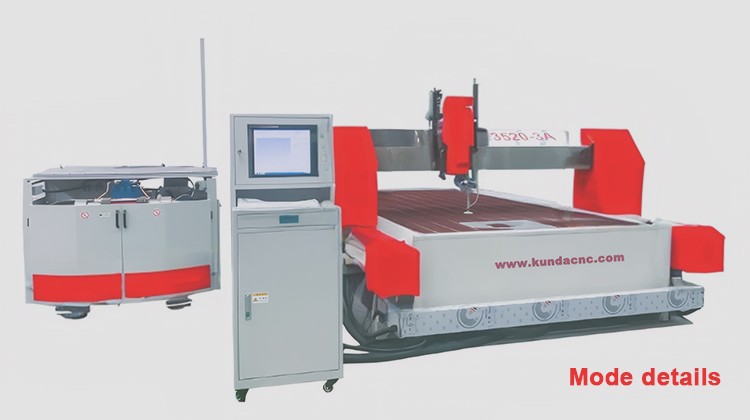

Gantry Water Jet Cutting Machine

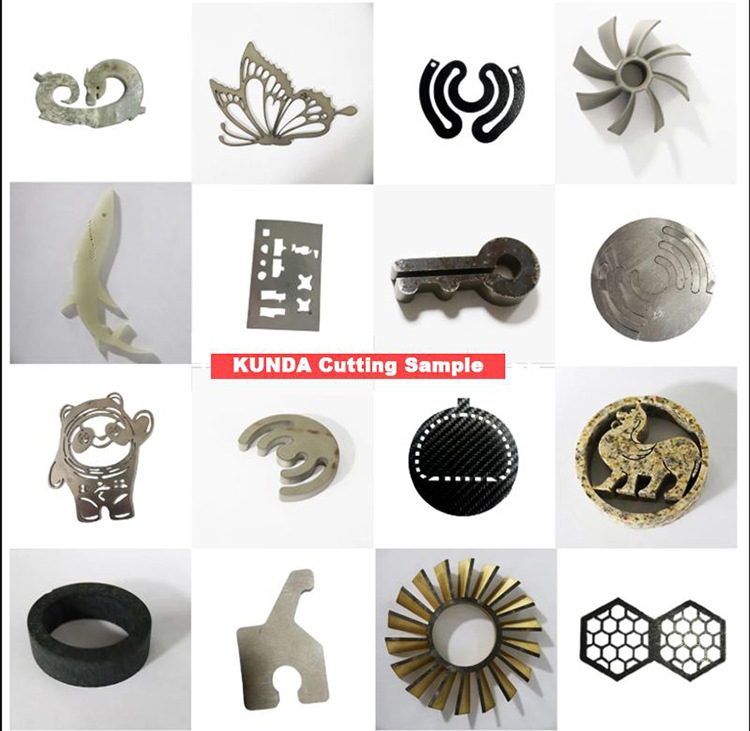

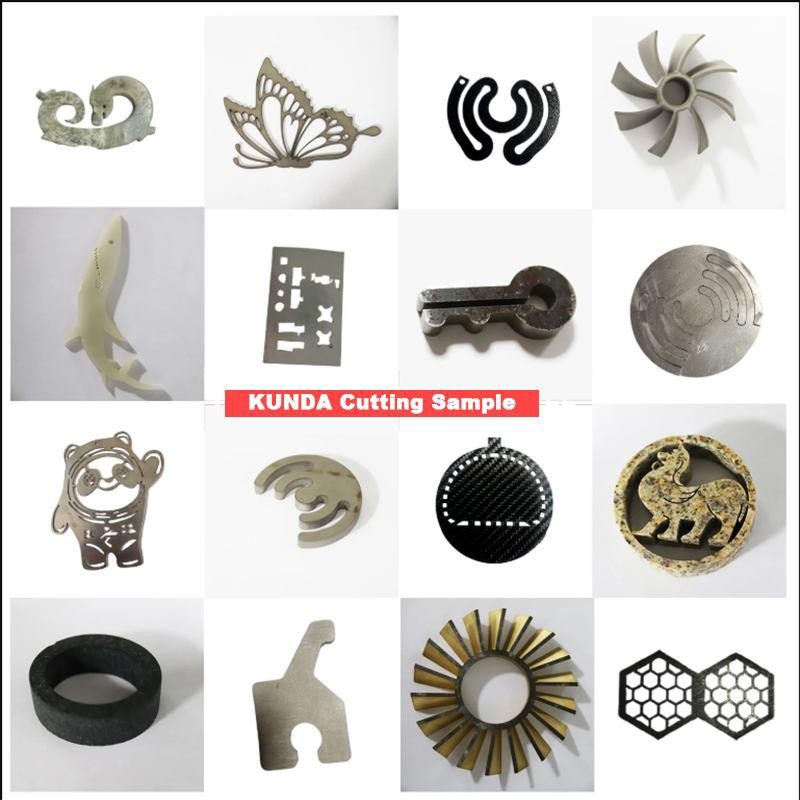

Gantry Water Jet Cutting Machine is a state-of-the-art solution designed to deliver precision cutting capabilities for a wide range of materials, making it an essential tool across industries such as aerospace, automotive, metal fabrication, and construction. Using ultra-high-pressure water—mixed with abrasive particles when needed—our Waterjet system can cut through metals, stone, glass, composites, and more with exceptional accuracy. The versatility and power of our Waterjet make it ideal for projects requiring both intricate detail and strength.
| Model | KD1015 | KD2015 | KD3015 | KD3020 | KD4020 | |
| Structure | Garnet | |||||
| Cutting Table Size | 1200*1700mm | 2200*1700mm | 3200*1700mm | 3200*2200mm | 4200*2200mm | |
| Stroke | X axis | 1000mm | 2000mm | 3000mm | 3000mm | 4000mm |
| Y axis | 1500mm | 1500mm | 1500mm | 2000mm | 2000mm | |
| Z axis | 130mm | 130mm | 130mm | 130mm | 130mm | |
| Accuracy | Cutting | ±0.1mm | ||||
| Repeatability | ±0.05mm | |||||
| Traverse Speed | 6000-15000mm/min | |||||
| Power Supply | 220v/380v/415v,50/60Hz | |||||
| Material | Thickness | Orifice | 320Mpa | 380Mpa | 420Mpa |
| Aluminum | 6mm | 0.33mm | 400-520mm/min | 460-590mm/min | 500-580mm/min |
| 13mm | 300-380mm/min | 350-420mm/min | 400-510mm/min | ||
| 19mm | 220-280mm/min | 260-380mm/min | 300-420mm/min | ||
| Stainless Steel | 6mm | 200-260mm/min | 240-310mm/min | 260-350mm/min | |
| 13mm | 80-120mm/min | 100-150mm/min | 125-180mm/min | ||
| 20mm | 50-65mm/min | 70-90mm/min | 100-120mm/min | ||
| 30mm | 15-25mm/min | 30-40mm/min | 40-50mm/min | ||
| Glass | 6mm | 1200-1400mm/min | 1600-1900mm/min | 2100-2300mm/min | |
| 10mm | 600-700mm/min | 700-800mm/min | 820-900mm/min | ||
| 20mm | 330-400mm/min | 400-500mm/min | 600-800mm/min | ||
| Marble | 10mm | 1000-1200mm/min | 1200-1400mm/min | 1350-1550mm/min | |
| 20mm | 400-500mm/min | 600-700mm/min | 750-850mm/min | ||
| 30mm | 220-300mm/min | 310-380mm/min | 400-480mm/min | ||
| 50mm | 70-90mm/min | 100-120mm/min | 130-150mm/min | ||
| Ceramic Tile | 15mm | 1200-1400mm/min | 1400-1500mm/min | 1600-1800mm/min | |
| Bronze | 5mm | 500-600mm/min | 700-800mm/min | 900-1000mm/min | |
| 15mm | 190-220mm/min | 220-300mm/min | 330-400mm/min | ||
| 30mm | 80-100mm/min | 100-120mm/min<PHOTO recommendationCONTACT US
|
