5 Axis Waterjet Head Micro Cutting Waterjet Head For Stone
5 Axis Waterjet Head Micro Cutting Waterjet Head For Stone

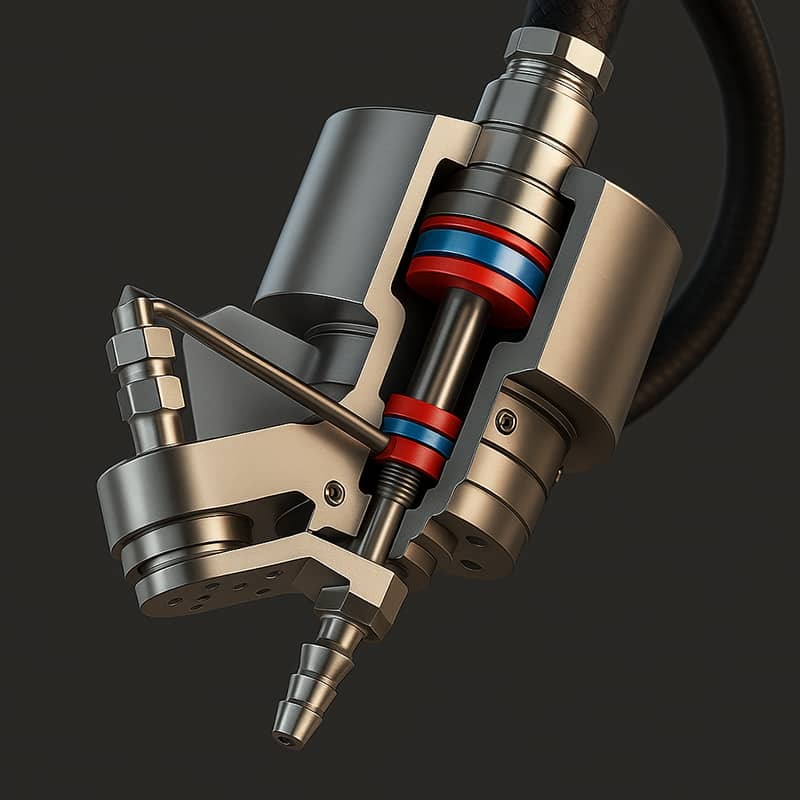

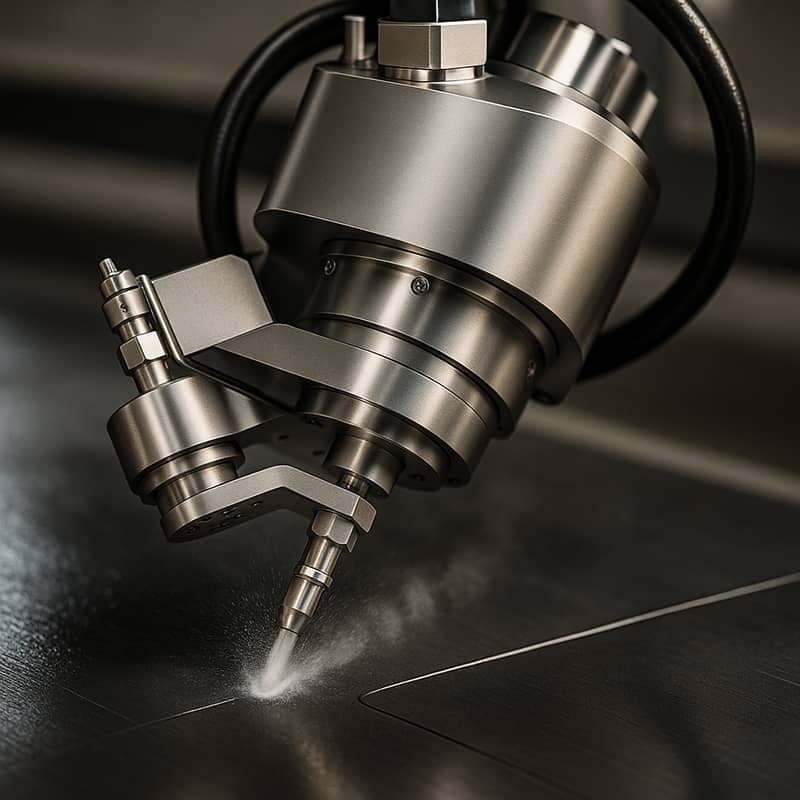

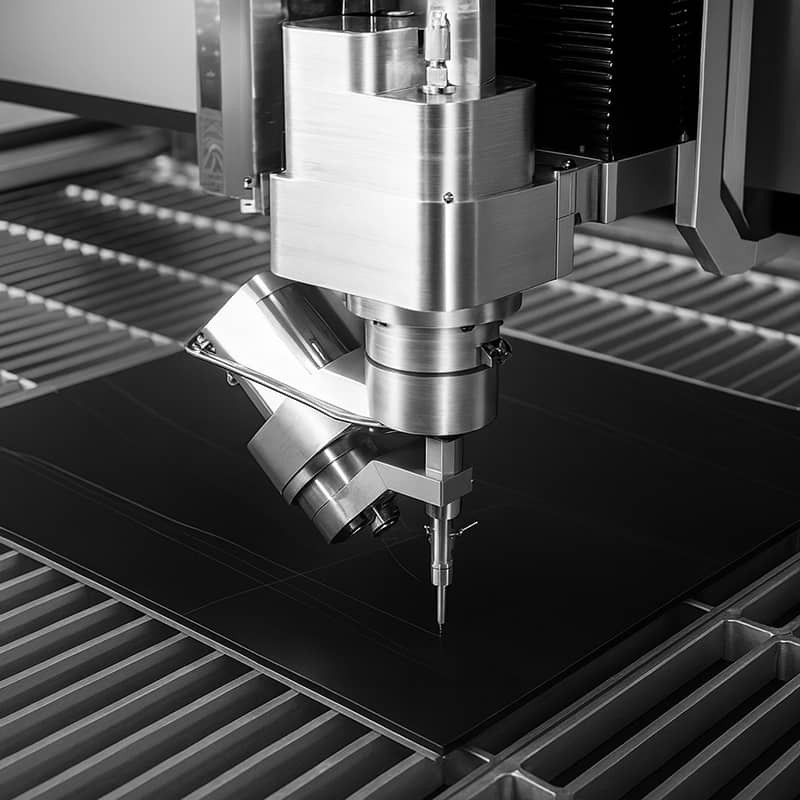

5 Axis Waterjet Head is one of the core components of the WaterJet Cutting Machine. Compared with the traditional three-axis cutting head (X, Y, Z directions), it has two more rotation axes (A axis and C axis), so it can achieve cutting of complex angles and curved surfaces.
|
A-axis Rotating Range |
±70° |
|
C-axis Rotating Range |
Infinite |
|
Positioning Precision |
1.5’ |
|
Max Rotational Speed |
50RPM |
|
Cutting precision at fixed point |
±0.05mm |
|
Rotating Radius |
261mm |
|
Automatic Heigh Measurement |
No(The automatic height measurement function requires an additional charge) |
|

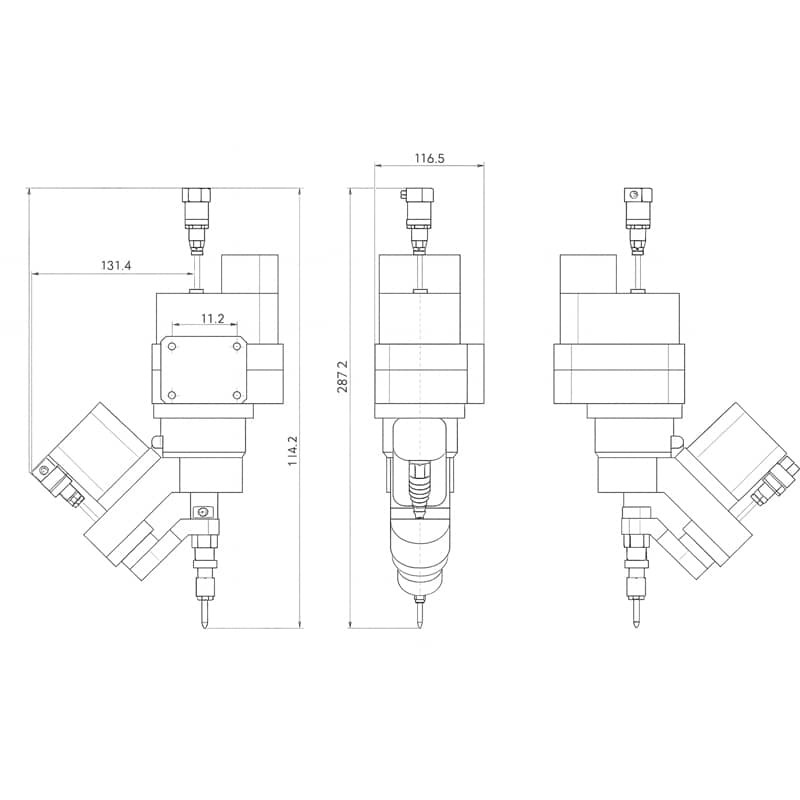

Main Measurement |
|
|
Max. Height |
607mm |
|
Max. Length |
376mm |
|
Max. Width |
161mm |
|
High Pressure Tube Inlet Threading |
1/4 Inch |
Key Features 5 Axis Waterjet Head:
Multi-Angle Cutting: By rotating the A- and C-axes, it can achieve angled cutting within a range of ±60° or even greater.3D/Bevel Cutting: Capable of not only flat cutting but also three-dimensional curves, bevels, and chamfers.
High Precision: When used with a CNC system, it achieves cutting accuracy of ±0.1 mm, making it particularly suitable for complex processes.
No Heat Affect: Unlike laser or plasma cutting, waterjet cutting creates no heat-affected zone, preventing material deformation.
Widely Applicable: It can cut a variety of materials, including metal, glass, stone, ceramics, and composites.
Applications 5 Axis Waterjet Head:
Chamfering stone mosaics and countertopsMachining complex contours of aerospace parts
Cutting special-shaped metal parts in the automotive industry
Precision machining of fragile materials such as glass and ceramics
