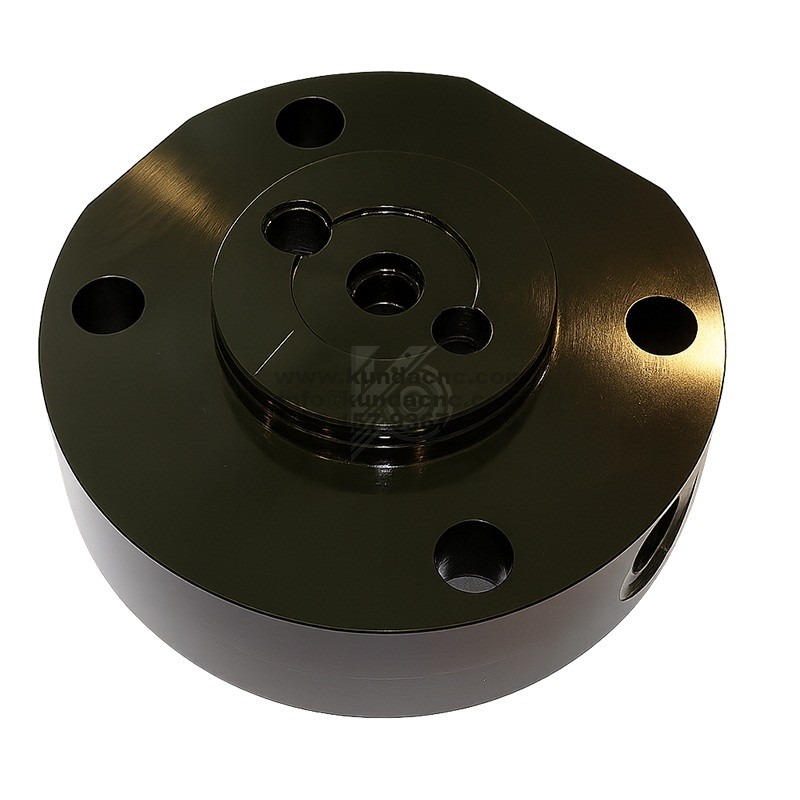

Connection Flange HT022009/172 Abrasive Waterjet Cutting Machine For Sale

Short Description:

Connection Flange
5100117
Minimum Order Quantity: 1
Availability: Yes
Supplier: KUNDA
Weight: 13.2 kg
Working Pressure: 4137 bar
Material: Stainless Steel

INQUIRY

Details

Connection Flange HT022009/172 Abrasive Water Jet Cutting Machine For Sale

Part Number	Alternative models	Description
MJ0380264	EL130200	Sensor
4204812	F1000401-220	Spring
900630	HD210200	Seal Kit for Cutting Head
	HD230700	Protective Cap
4100108	HPU1329/220	Center Ring
106644	HT022004/473	Piston
	HT022006/563	Flange
106568	HT022008/172	Connection Flange
5100117	HT022009/172	Connection Flange
5300115	HT022026/255	Сup spring
5102235	HT022027/527	Bearing Bush
5102040	HT022032/527	Back Ring
5300123	HT022033/591	Valve Body Dual Core
MJ0040236	HT022040/779	Hp Cylinder
4100731	HT022044/103	Retaining Ring
	HT022051/461	Spacer Ring
5102078	HT022061/337	Mounting Tool Nut
107138	HT022070/220	Hp Seal Assembly Dual Core

The Connection Flange HT022009/172 is a key connector in high-pressure waterjet systems, used to securely connect the high-pressure pipeline to the intensifier or valve body. It is designed to withstand the intense water flow and vibration in ultra-high-pressure environments while maintaining a reliable seal and preventing high-pressure water leakage.

Function: Securely connects the high-pressure pipeline to the intensifier or valve body, ensuring stable high-pressure water transmission.
Applicable Locations: Commonly used at the outlet of the intensifier, high-pressure pipeline interfaces, and valve body connections.
Material: Constructed of high-strength stainless steel or alloy steel, it offers high-pressure, erosion, and corrosion resistance.
Replacement Period: While a durable component, it should be replaced promptly if worn or corroded over time to maintain system safety and sealing performance.

The high-quality Connection Flange HT022009/172 effectively improves the stability and sealing performance of the high-pressure system and is a critical component for the long-term safe operation of Waterjet Cutting Equipment.
