Subplate Adapter Assembly 012402-1 Good Price Waterjet Parts Supplier

Part Number	Replaces Number	Description
1-11076	004406-1 | TL-001015-1 | 35373	Seal, 7/8 in
1-11077	004407-1 | TL-001014-1	60K Hoop
1-11115	004383-3 / TL-001003-3	Check Valve Body

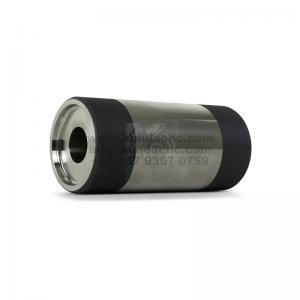

1-11117	007038-3 | TL-001002-3	60K High-pressure Cylinder
1-11134	B-1465-1 | TL-001019-1	Bronze Seal Backup
1-11135	001198-1 | TL-001001-1	60K Seal Repair Kit
1-11136	A-4689	High-vacuum Grease, 5.3 oz
011561-1		60K HP Tube; 3/8"; 26.5" Long
011562-1		60K HP Tube; 3/8"
011564-1		3/8" 60K HP Interconnect Pump Assembly Tube
011565-1		60K HP Tube; 3/8"
011742-1		87K Bleed-down Valve Body
011899-1		Direct Drive End Cap
011901-1		Electronic Control Valve Seat
012005-1		100K 3/8" Coupling
012400-1		Direct Drive Manifold Insert; 1.130"
012402-1		Subplate Adapter Assembly
012506-1		On/Off Valve II; Subassembly
012576-1		60K 3/8" Elbow 5.25" X 18.5"
012578-1		60K 1/4" HP Tube For Transducer
012931-1		Attenuator Outlet Adaptor
012952-1		3/8" Double Cone High-pressure Insert

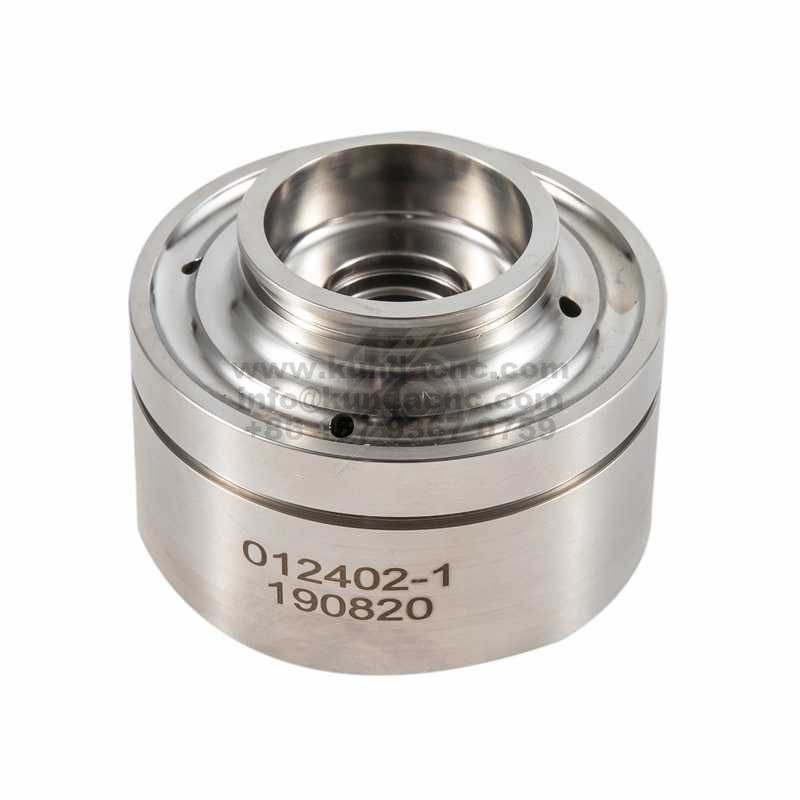

The Subplate Adapter Assembly 012402-1 is a precision-engineered component designed to connect and support high-pressure assemblies in WaterJet Cutting Machines, direct drive pumps, and industrial hydraulic systems. Built from premium, corrosion- and wear-resistant alloys, this adapter assembly ensures stable alignment, leak-free performance, and long service life under demanding operating conditions.
The 1-12402-1 subplate adapter assembly provides a secure interface between subplates and adjoining components, maintaining system integrity and reliable fluid transfer in ultra-high-pressure environments. Its OEM-level precision guarantees a perfect fit, simple installation, and dependable operation in high-production applications.
Widely used in OEM waterjet systems, the Subplate Adapter Assembly 012402-1 is an essential replacement part that supports cutting accuracy, equipment reliability, and long-term operational efficiency.

KUNDA is committed to supplying reliable and durable waterjet cutting parts to customers worldwide. Every component, from orifices and focusing tubes to intensifier parts and filters, is manufactured with strict quality standards and premium materials to ensure consistent performance under high pressure. With a full range of parts available, we provide solutions that keep your machines running smoothly and efficiently. At the same time, KUNDA offers competitive pricing without compromising on quality, making us a trusted partner for long-term cooperation in the waterjet industry.
