37Kw CNC Water Jet Cutter Pump Adjustable Pressure Pump
37Kw CNC Water Jet Cutter Pump Adjustable Pressure Pump
Product Introduction
The 37Kw Water Jet Cutter Pump is a high-performance CNC waterjet Intensifier Pump designed for stable and efficient high-pressure waterjet cutting. Equipped with an advanced hydraulic intensifier system and durable ceramic plungers, this Waterjet Pump provides continuous ultra-high pressure output for cutting metal, stone, glass, ceramics, composites, rubber, foam, and other industrial materials. The adjustable pressure system allows operators to control cutting pressure according to different material types and thickness requirements, helping improve cutting precision while reducing consumable wear.
Technical Specifications
| Rated Power | 37KW / 40HP |
| Max. Operating Pressure | 480MPa / 69000psi |
| Continuous Working Pressure | 380MPa - 420MPa |
| Max. Discharging Rate | 4.2L/min |
| Orifice Diameter | 0.33mm or others |
| Nozzle Diameter | 1.02mm or others |
| Tank Volume | 150L |
| Machine Size | 1800mm × 1100mm × 1300mm |
| Weight | 900KG |
| Ambient Operating Temperature | Min. 40°F / 5°C, Max. 104°F / 40°C |
| Max. Noise Level | 75 dB(A) |
| Attenuator Volume | 1L / 2L |
Stable High Pressure Cutting Performance
This CNC Waterjet Intensifier Pump adopts a professional high-pressure intensifier structure to provide stable water pressure for industrial cutting operations. Stable pressure transmission helps maintain smooth cutting edges and accurate cutting results during long working hours. The optimized hydraulic control system improves cutting efficiency while helping reduce pressure fluctuation and machine downtime.
Adjustable Pressure Control System
The adjustable pressure design allows operators to set the working pressure according to different processing materials and cutting thicknesses. This helps improve cutting quality and extend the service life of wear parts such as nozzles, seals, and orifices. The flexible pressure control system makes the pump suitable for various Cnc Waterjet Cutting Machines and customized industrial applications.

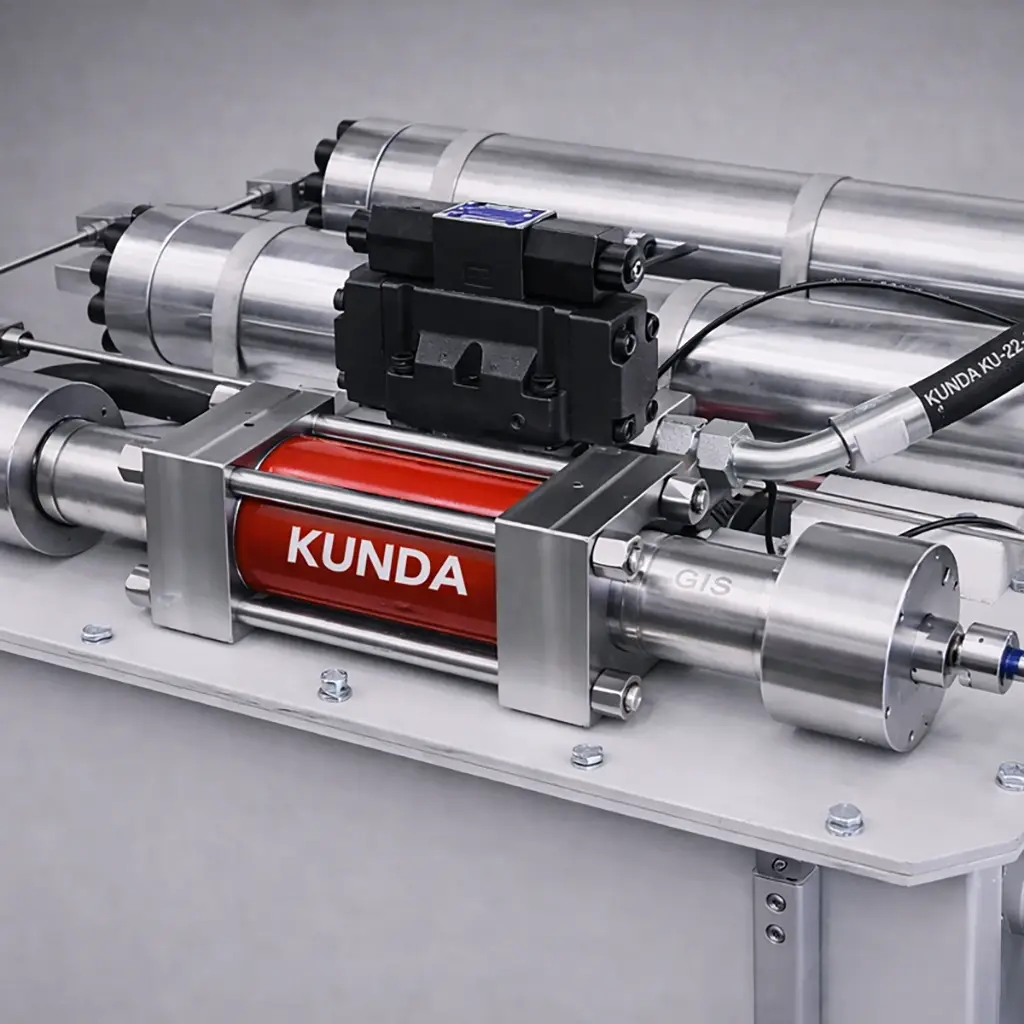

Durable Ceramic Plunger Structure
The ceramic plunger is a key component of this high-pressure waterjet pump. Compared with ordinary materials, ceramic plungers provide better wear resistance, corrosion resistance, and high-pressure durability under continuous working conditions. This helps reduce maintenance frequency, improve operational stability, and lower long-term maintenance costs.
Wide Range of Cutting Applications
The 37Kw waterjet intensifier pump can be used for cutting stainless steel, carbon steel, aluminum, copper, titanium, marble, granite, glass, ceramic tiles, rubber, foam, plastics, and composite materials. Because waterjet cutting does not generate heat during processing, it helps avoid thermal deformation, burning, cracking, and material damage.
High Efficiency and Low Maintenance
The 37Kw motor system provides strong power support for high-pressure cutting while maintaining efficient operation. The optimized internal structure and high-quality components help improve equipment stability and reduce unnecessary maintenance costs. The machine is designed for convenient maintenance and quick replacement of wear parts, helping users minimize downtime and improve production efficiency.
Why Choose KUNDA Waterjet Solutions
KUNDA provides professional Waterjet Cutting Equipment, high-pressure pumps, and waterjet spare parts for global customers. We can supply complete Waterjet Cutting Solutions including waterjet cutting machines, intensifier pumps, cutting heads, accumulators, high-pressure tubing, on/off valves, orifices, nozzles, and compatible replacement parts for major waterjet brands.
Contact Us
If you are looking for reliable Waterjet Cutting Pumps, waterjet spare parts, or customized waterjet solutions, please feel free to contact KUNDA for more information and professional support.
