60 Ksi 3-Way Valve A-0789-3 New Flow Waterjet Parts Supplier

Short Description:

60 Ksi 3-Way Valve
Minimum Order Quantity: 1
Availability: Yes
3/8"
Length:3inches,6inches,12inches,13.5inches

INQUIRY

Details

60 Ksi 3-Way Valve A-0789-3 New Flow Waterjet Parts Supplier

Part Number	Details
A-00257-10	5 Amp Pressure Switch 1/8 NPT
A-0264-112	60k Small Intensifier Snap Ring
A-0275-006	70 Durometer Black Nitrile rubber O-ring
A-0290-010	High Resiliency O-ring
A-00562-1	Water Filter Cartridge 20" Long
A-00592-12	Tube NPT Male Connector
A-00633-023	90 Durometer Nitrile O-ring
A-0689-1	60K Anti Vibration Gland Collar
A-00750-6	50 Micron Filter - 20" Long
A-0782-12	60K High-pressure Tubing 3/8" OD; STD
A-0789-3	Valve; 3-Way; 60 KSI; 3/8"; VEE
A-01023-04	Timing Belt; 5 mm; 25 mm
A-1456	80 KSI High-pressure Gauge; 80; 6"
A-1623	0-5000 psi Oil Pressure Gauge (Back Mount)
A-1902	600 Grit Sand Paper
A-1903	320 Grit Sand Paper
A-2122	In-Tank Filter 8" Long 2" NPT
A-2171	160 PSI Gauge; Back Mount
A-2237	Shaft Coupling Insert 2"
A-2409	Compression Spring 0.396" ID 0.48" OD
A-3478	Heat Exchanger; Shell/Tube; 500 psi
A-3582	100 Mesh In Tank Screen Filter 3.3" Long
A-4261	Shaft Coupling With Flange and Keyway
A-5404	Heat Exchanger; Single Pass
A-5713	60K Insert
A-6059	Filter Head 5" Long
A-6060	Filter Housing 10" Long
A-6069	Clear Tubing 1/4" ID 3/8" OD 50 PSI
A-7230	3-Way 1/2" NPT 75-150 PSI Valve
A-9566	Surface Prep; Seal Shaft

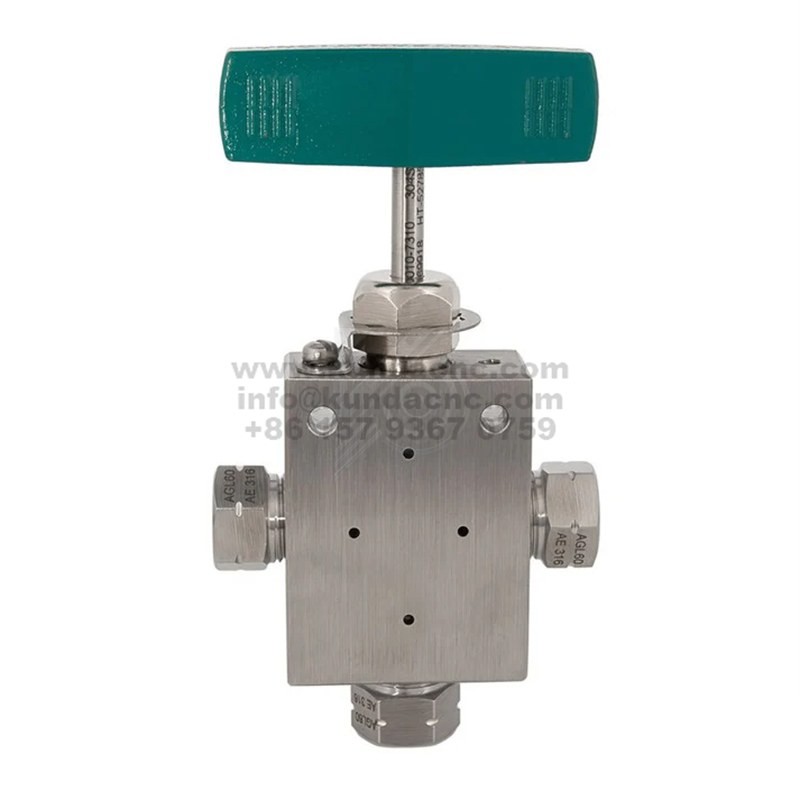

60 KSI 3-Way Valve A-0789-3 is a precision high-pressure flow control valve designed for 60,000 PSI Waterjet Cutting Systems. It is used to direct, switch, or divert ultra-high-pressure water between multiple flow paths, ensuring accurate fluid control and stable operation of the Intensifier Pump, accumulator, cutting head, and other high-pressure system components. The three-way valve plays a vital role in pressure regulation, system switching, and safe waterjet operation.

Manufactured from premium high-strength stainless steel and precision-machined to tight tolerances, 60 KSI 3-Way Valve A-0789-3 offers excellent pressure resistance, corrosion resistance, and reliable sealing performance under continuous ultra-high-pressure operating conditions.

Is It a Wear Part?

The valve body itself is not typically considered a consumable wear part. However, internal valve seats, seals, O-rings, poppets, and other moving components are subject to wear due to repeated switching cycles, high-pressure water erosion, and long-term operation. Routine inspection and maintenance are recommended.
