Blast Disk 048151-1 New Abrasive Waterjet Parts Supplier
Blast Disk 048151-1 New Abrasive Waterjet Parts Supplier
| Part Number | Replaces Parts | Details |
|
041336-1 |
|
Tube Assembly For 87K Attenuator U-Shape |
|
041403-203 |
|
Relief Valve Assembly Manifold |
|
042102-1 |
|
87K Intensifier Check Valve Outlet Spring Seat |
|
042145-1 |
|
Poppet/Seat Assembly |
|
042218-1 |
|
Hybrid Maintenance Kit |
|
042248-1 |
|
Tube Assembly For 87K Rear Base |
|
042921-1 |
|
87K 1/4" Bleed-down Coil; Right Hand |
|
044347-1 |
|
87K 1/4" Anti Vibration Gland |
|
044358-1 |
|
87K 1/4" Anti Vibration Collet |
|
044956-1 |
|
Mini Hopper Assembly; Metering Valve |
|
048149-1 |
|
Spray Shield |
|
048151-1 |
|
Blast Disk 25 MM OD |
|
049358-1 |
|
87K 1/4" 10 Degree Single Axis Swivel Assembly |
|
049745-1 |
|
87K 3/8" Cross |
|
050625-1 |
|
PCV Maintenance Kit |
|
052354-1 |
|
Laser Height Setter Spray Shield Yellow |
|
057203-1 |
|
Mini Hopper Abrasive Metering Assembly |
|
058033-1 |
|
Minor Maintenance Kit |
|
058277-1 |
|
60K Minor Intensifier Maintenance Kit |
|
303204-01 |
|
Surface Prep Swivel Seal Assembly |
|
710806-1 |
|
Precision Nozzle Body Collet 9/32" ID |
|
712101-1 |
|
Minor Maintenance Kit |
|
712101-2 |
|
Major Maintenance Kit |
|
712410-1 |
|
DWJ Modified Eyebolt |
|
713802-1 |
|
Double Ended 4-Pin Cable Assembly |
|
1000003-15-40 |
|
Waterjet Mixing Tube |
|
A-00144-1-10 |
|
60K High-pressure Tubing |
|
A-00250-240 |
|
Back-up Ring |
|
A-00251-22 |
|
T-Seal |
|
A-00256-12 |
|
3/4" 150 psi Braided Hose |

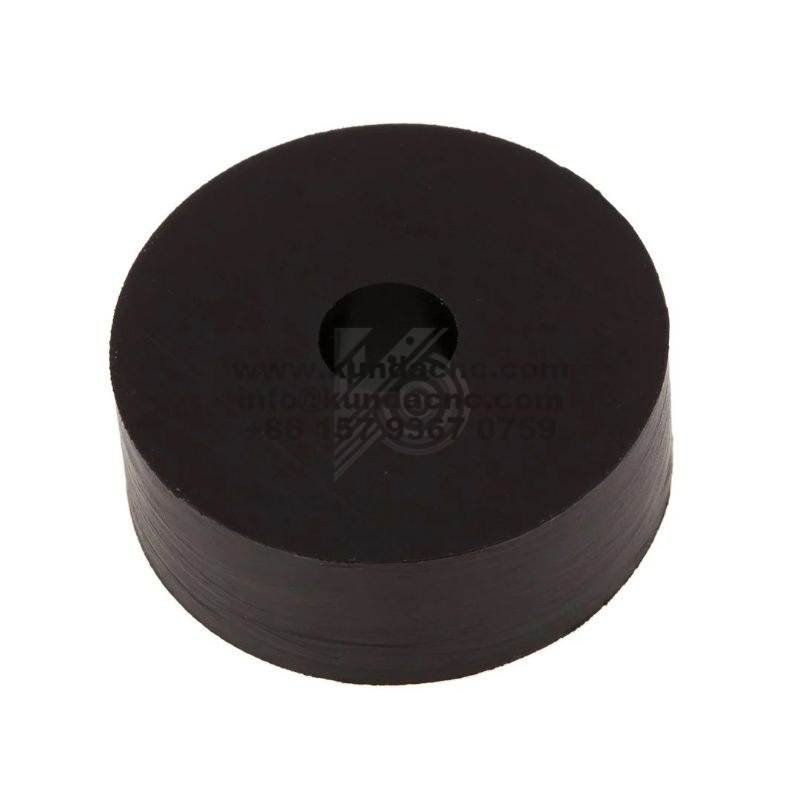

The Blast Disk 048151-1 is a critical safety component designed for Waterjet Intensifier Pumps and ultra-high-pressure systems operating at pressures up to 87,000 PSI. Commonly known as a burst or rupture disk, it provides overpressure protection by safely releasing excess pressure, preventing potential damage to the intensifier, manifold, or high-pressure tubing in WaterJet Cutting Machines.
Manufactured from high-strength stainless steel with precise pressure calibration, the 048151-1 waterjet blast disk ensures fast, reliable response and consistent performance under extreme operating conditions. Its robust design minimizes risk, enhances system safety, and complies with high-pressure safety standards.
KUNDA supplies the Blast Disk 048151-1 under strict quality control, ensuring compatibility with leading waterJet Pumps, manifolds, and safety valve assemblies. By choosing this blast disk, operators benefit from enhanced safety, reliable pressure protection, and long-term stability of their waterjet intensifier systems.
