Minor Maintenance Kit 712101-1 New Glass Waterjet Parts Supplier
Minor Maintenance Kit 712101-1 New Glass Waterjet Parts Supplier
|
Name |
Qty |
Description |
|
011051-1 |
3 |
SEAL;DYNAMIC;EAGLE;5/16 ID;HDS WHITE |
|
A-00621-33 |
3 |
SEAL;ROD;NA;DISOGRIN;7/16 ID;11/16 INCH OD;1/8 INCH |
|
011042-1 |
3 |
POPPET;INLET;CHECK VALVE;EAGLE;STAINLESS STEEL |
|
011040-1 |
3 |
GUIDE;NA;OUTLET POPPET;CHECK VALVE;EAGLE;NA |
|
011039-1 |
3 |
POPPET;OUTLET;CHECK VALVE;HYPLEX;STAINLESS STEEL |
|
011041-1 |
3 |
SEAT;OUTLET;POPPET;EAGLE;STAINLESS STEEL |
|
042145-1 |
1 |
POPPET/SEAT ASSEMBLY;PRESSURE CONTROL VALVE |
|
A-0275-033 |
3 |
O-RING;BUNA-N;70 (SHORE A);-033 |
|
A-0275-025 |
3 |
O-RING;BUNA-N;70 (SHORE A);-025 |
|
A-1903 |
1 |
EMERY PAPER;320 GRIT;WITH ADHESIVE BACK |
|
A-4689 |
1 |
GREASE;FOOD GRADE;1/4 OUNCE TUBE |
|
SB-0168 |
1 |
SB;INSTALLING HYPLEX MINOR MAINT. KIT |
|
A-9223 |
3 |
SPRING;COMPRESSION;STAINLESS STEEL;NONE;.27 ID;.322 OD;.40 INCH;4.0 LBS/IN;CLOSED & GROUND |
|
A-12219 |
3 |
SPRING;COMPRESSION;STAINLESS STEEL;NONE;.352 ID;.42 OD;.81 INCH;3.7 LBS/IN;CLOSED & GROUND |
|
011350-1 |
3 |
SLEEVE;NA;FILLER TUBE;EAGLE |
|
A-20386-1 |
2 |
LUBRICANT;ANTI-SEIZE;NA;5 GRAMS |
|
012306-DWG |
1 |
HIGH PRESSURE ASSEMBLY;55 KSI HYPLEX |
|
A-00720-31 |
3 |
SEAL;ROD;NA;NITRILE;5/16 ID;9/16 OD;1/8 INCH |
|
A-0275-119 |
1 |
O-RING;BUNA-N;70 (SHORE A);-119 |
|
A-0275-120 |
1 |
O-RING;BUNA-N;70 (SHORE A);-120 |

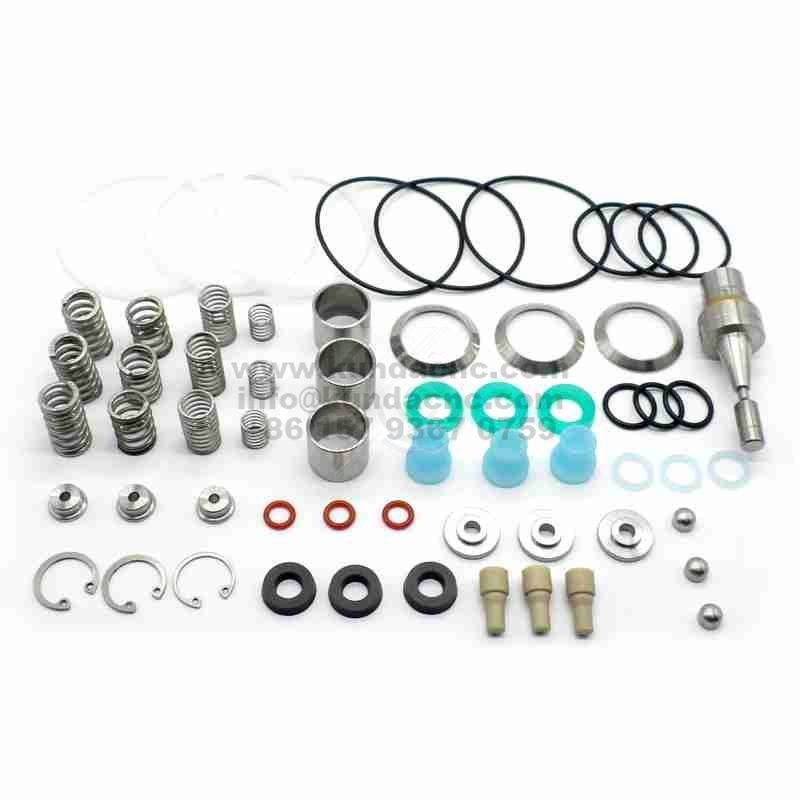

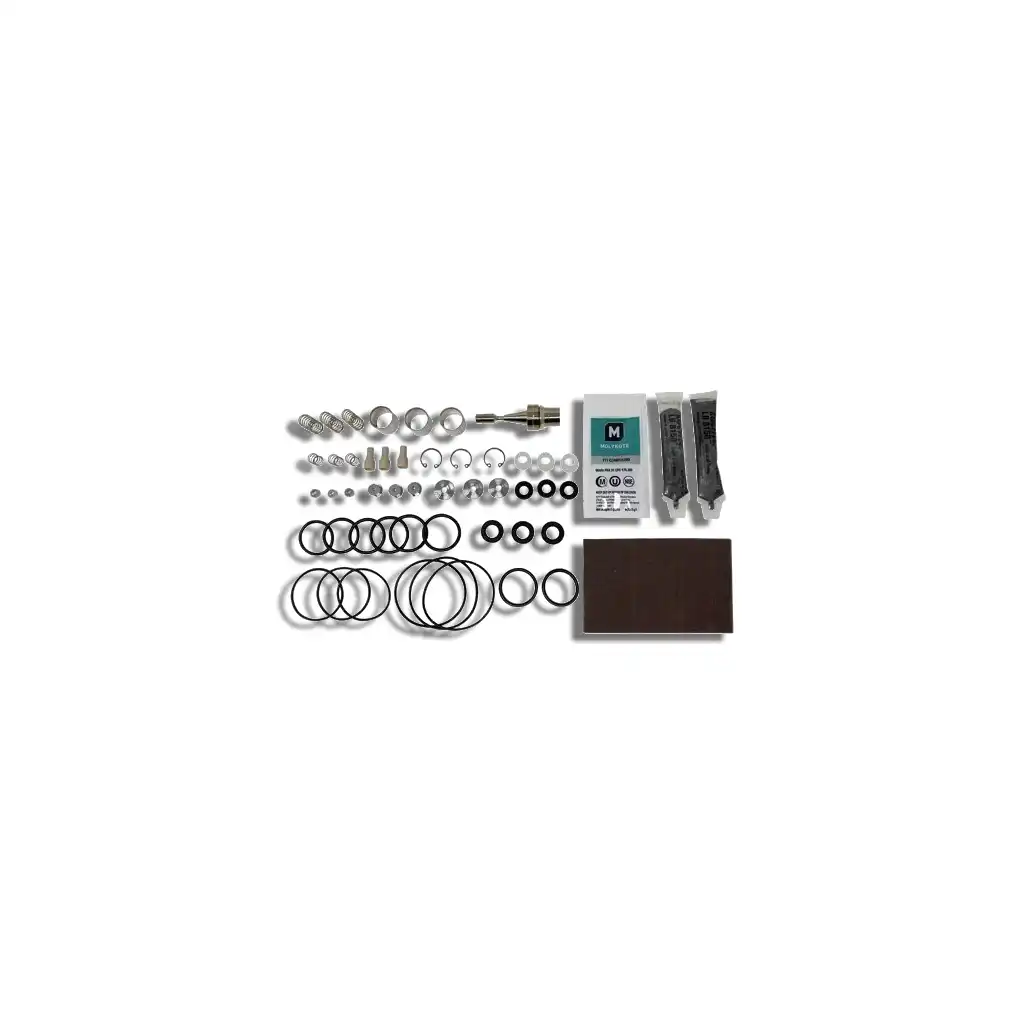

The Minor Maintenance Kit 712101-1 is a complete service package designed for performing scheduled maintenance on Waterjet Intensifier Pumps and high-pressure systems. This kit contains all key seals, wear rings, and small replacement components necessary to maintain consistent sealing performance, hydraulic balance, and efficient operation in WaterJet Cutting Machines.
Manufactured from premium, wear- and temperature-resistant materials, the 712101-1 waterjet minor maintenance kit ensures long-lasting durability, leak-free performance, and excellent reliability under continuous ultra-high-pressure operation. Routine maintenance with this kit helps prevent costly downtime, extend pump lifespan, and maintain precise cutting performance.
KUNDA supplies the Minor Maintenance Kit 712101-1 under strict quality control standards, ensuring full compatibility with leading waterJet Pumps, intensifier assemblies, and seal carrier components. By choosing this kit, operators benefit from dependable maintenance results, reduced service costs, and consistent system efficiency.
