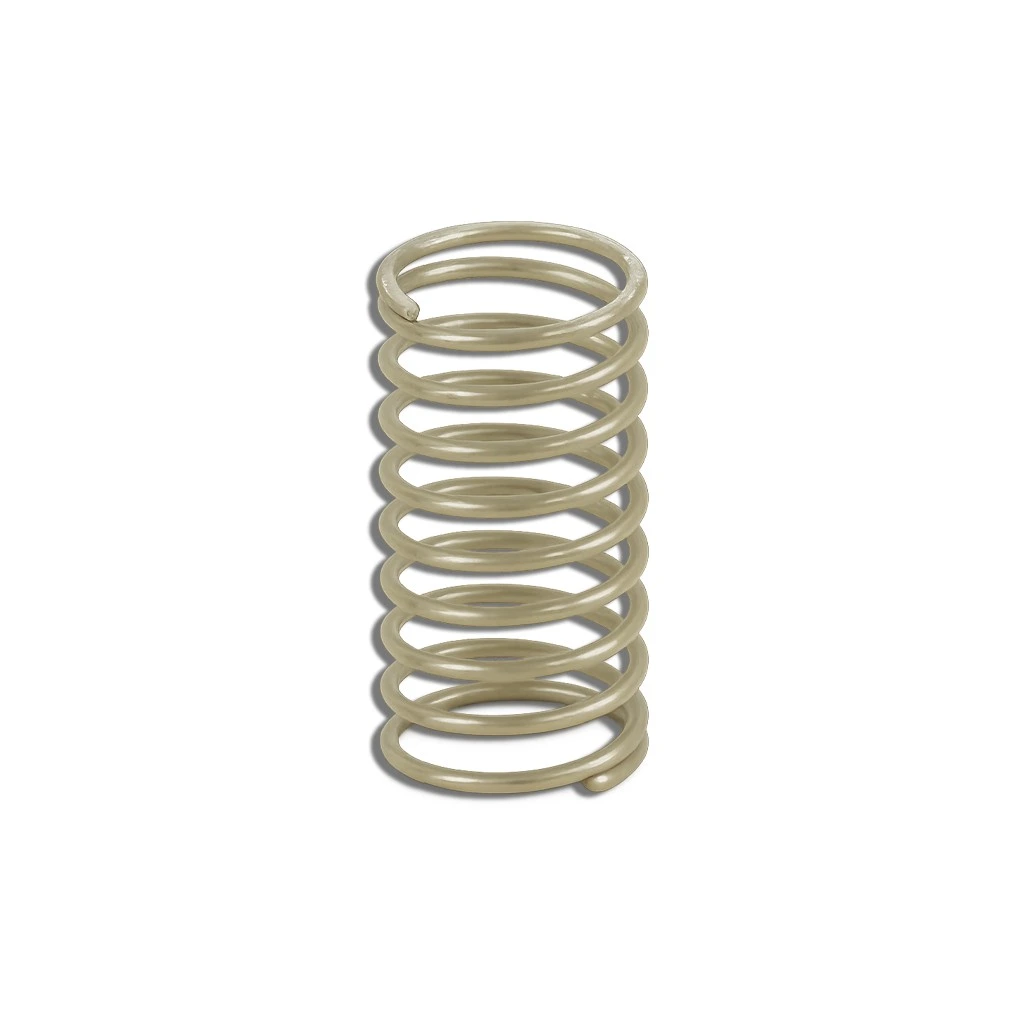

Spring 1-18747 Used For Water Jet Cutter Machine

Short Description:

Spring
Minimum Order Quantity: 1
Availability: Yes
352 ID
More Questions Contact Us: 86 157 9367 0759 or info@kundacnc.com

INQUIRY

Details

Spring 1-18747 Used For Water Jet Cutter Machine

Part Number	Replaces Number	Description
1-14178	014388-1	Poppet Seat
1-14179	042101-1	Output Adapter- 90k Check Valve
1-14185	011290-1 \| 019975-1	Low Pressure Hydraulic Cylinder
1-14222		Swivel Adapter Assembly, 4.330 in
1-14444	014922-1	90° Swivel Assembly, 1/4 in., 100k
1-14446-010	041759-10	Ruby Orifice
1-14448	100037-1	H2O Nozzle Body, 5.505 in
1-14493	015093-1	90° Swivel Repair Kit, 1/4 in., 100k
1-14516	B-5330-1	H2O Orifice Retainer
1-14519	014884-1	Inlet Repair Kit (94K)
1-14521	014885-1	Outlet Repair Kit (94K)
1-14522	012035-1	Check Valve Repair Kit (94K)
1-14523	013157-1	Low-pressure Seal Repair Kit (94K)
1-14524	015084-1	Bleed-down Repair Kit, (90K)
1-14525	041136-1	Cutting Head Assembly
1-14540	014559-1	Universal Actuator Assembly
1-14592	B-5910-1	90° Swivel Repair Kit, 1/4 in
1-17528	048198-1	On/off Valve Body (60K)
1-18717	711621-1 \| 040411-1	Nozzle Splash Guard
1-18747	A-12219 \| 72185141	Spring, 352 ID
1-18748	A-12217 \| 72186948	Spring, 362 ID
1-18749	A-00621-33 \| 72185125	Rod Seal
1-18752	A-9223 \| 72185200	Spring, 322 OD
1-18862	011051-1 \| 72185177	Dynamic Seal
1-18865	011042-1 \| 72185133	Inlet Poppet
1-18867	011041-1 \| 72185192	Outlet Poppet Seat
1-18868	011040-1 \| 72185167	Outlet Poppet Guide
1-18869	011039-1 \| 72185185	Outlet Poppet
1-18875	044099-1 \| 72185291	Seal Carrier Assembly
1-18883	011045-1 \| 72186914	Plunger

The Spring 1-18747 is a precision-engineered component commonly used in waterjet on/off valves and check valve assemblies. It provides the necessary tension to ensure proper seating of the poppet or needle, allowing for accurate control of high-pressure water flow in demanding Water Jet Cutting Machines.
Made from high-strength, wear-resistant materials, the 1-18747 waterjet spring delivers consistent performance and long service life under continuous ultra-high-pressure operation. Its precise design minimizes fatigue, maintains stable pressure control, and reduces downtime caused by valve malfunctions.
KUNDA supplies the Spring 1-18747 under strict quality standards, ensuring compatibility with leading waterJet Pumps, intensifier systems, and valve bodies. By choosing this spring, operators can maintain reliable valve operation, extend component lifespan, and ensure consistent efficiency in their Waterjet Cutting Systems.
