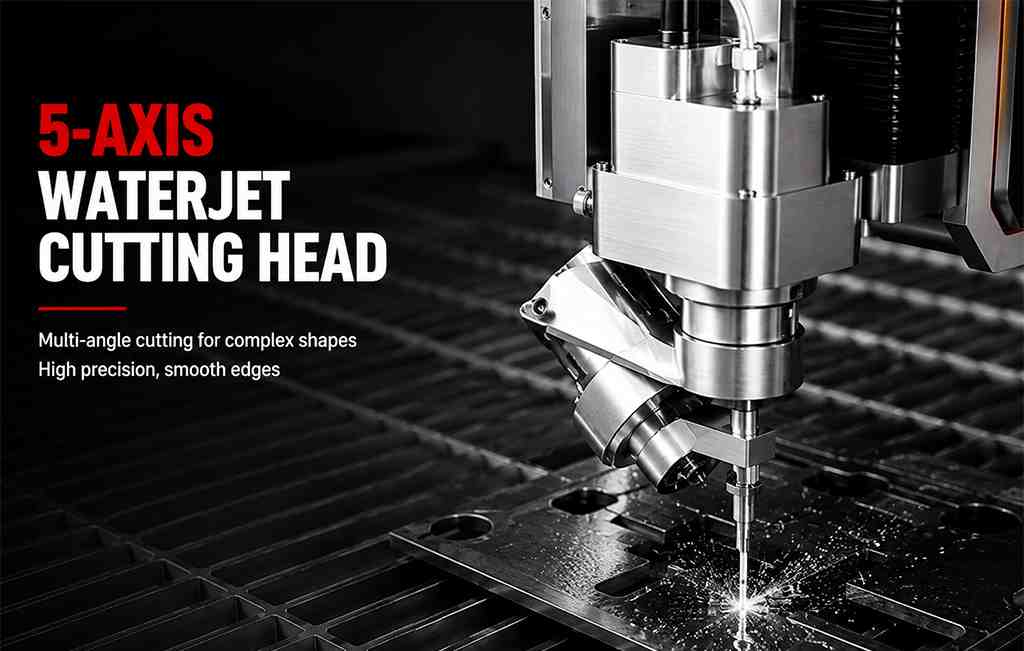

Waterjet Tile Cutting Head For Stainless Steel And Stone Slabs
Waterjet Tile Cutting Head For Stainless Steel And Stone Slabs
Product Introduction
The Waterjet Tile Cutting Head is a high-precision tilt cutting solution designed for stainless steel fabrication, stone slab processing, ceramic tile cutting, and advanced CNC waterjet applications.
Equipped with intelligent tilt-angle control technology and ultra-high pressure abrasive cutting capability, this waterjet cutting head allows manufacturers to perform bevel cutting, chamfering, angle compensation, and complex contour processing with exceptional accuracy.
Suitable for stainless steel, marble, granite, quartz stone, ceramic tiles, porcelain slabs, glass, and composite materials, this cutting head helps improve cutting quality, reduce taper, and enhance production efficiency.
As a professional Waterjet Cutting Head Supplier, KUNDA provides durable cutting solutions, OEM customization services, and technical support for global waterjet users.

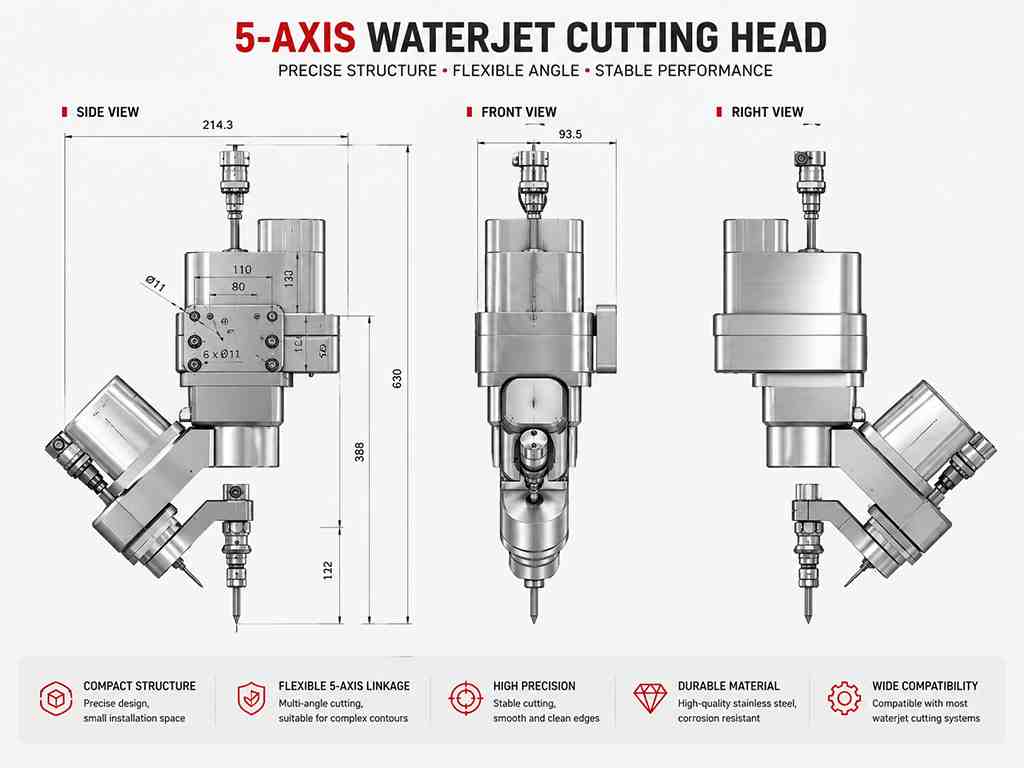

Technical Specifications
| A-axis Rotating Range | ±70° |
| C-axis Rotating Range | Infinite |
| Positioning Precision | 1.5' |
| Max Rotational Speed | 50 RPM |
| Cutting Precision at Fixed Point | ±0.05mm |
| Rotating Radius | 261mm |
| Automatic Height Measurement | Optional |
| Max Height | 607mm |
| Max Length | 376mm |
| Max Width | 161mm |
| High Pressure Tube Inlet Thread | 1/4 Inch |
Advanced Tilt Angle Cutting Technology
This Waterjet Tilt Cutting Head is designed with advanced angle adjustment capability, allowing the cutting head to automatically tilt during operation for precise bevel cutting and angled cutting applications.
Compared with standard vertical cutting heads, the tilt cutting design offers greater flexibility when processing complex shapes, decorative edges, miter cuts, and customized components.
The intelligent angle control system helps improve cutting precision while reducing secondary machining operations and material waste.
Professional Stainless Steel Cutting Performance
This Stainless Steel Waterjet Cutting head is specially designed for precision metal fabrication applications.
When combined with ultra-high pressure Abrasive Waterjet Systems, the cutting head can efficiently process stainless steel sheets, decorative panels, industrial components, and fabricated metal products while maintaining smooth cutting edges and accurate dimensions.
Since waterjet cutting is a cold-cutting process, it prevents thermal distortion, oxidation, and heat-affected zones, preserving the original material properties of stainless steel.
Ideal For Stone Slab and Ceramic Tile Processing
This waterjet cutting head for stone slabs is highly suitable for processing marble, granite, quartz stone, engineered stone, ceramic tiles, porcelain slabs, and decorative stone materials.
The tilt cutting capability allows manufacturers to create beveled edges, decorative profiles, miter cuts, countertop joints, and customized stone designs with excellent precision.
The Waterjet Cutting Process minimizes edge chipping and material damage, helping achieve high-quality finished products for architectural and interior decoration applications.
Superior Edge Quality and Taper Reduction
The advanced tilt compensation design helps reduce taper and improve edge quality during cutting operations.
By maintaining optimal cutting angles throughout the process, the cutting head delivers cleaner edges, smoother surfaces, and more accurate dimensions.
This reduces secondary finishing requirements such as grinding and polishing, helping manufacturers improve productivity and lower production costs.
Ultra High Pressure Abrasive Cutting Capability
Designed for ultra-high pressure abrasive waterjet systems, this cutting head provides stable cutting performance across a wide range of materials.
- Stainless Steel
- Carbon Steel
- Aluminum
- Marble
- Granite
- Quartz Stone
- Ceramic Tiles
- Porcelain Slabs
- Glass
- Composite Materials
The optimized internal flow structure helps maintain a consistent abrasive stream, ensuring reliable cutting quality and excellent production efficiency.
Applications of Waterjet Tile Cutting Heads
- Ceramic Tile Processing
- Porcelain Slab Fabrication
- Stone Countertop Manufacturing
- Marble and Granite Processing
- Architectural Decoration Projects
- Stainless Steel Fabrication
- Decorative Metal Panels
- Glass Processing
- Custom Interior Design Components
- Industrial Manufacturing
Durable Construction and Long Service Life
Manufactured using premium-grade materials and precision-engineered components, this waterjet tilt cutting head is built for long-term industrial operation.
The wear-resistant design helps minimize component wear during continuous cutting, extending service life and reducing maintenance requirements.
The robust structure ensures stable performance under ultra-high pressure working conditions while maintaining consistent cutting accuracy.
OEM Customization and System Compatibility
KUNDA can provide OEM customization services according to customer requirements, machine brands, and production applications.
This waterjet cutting head can be integrated with various CNC Waterjet Cutting Systems, multi-axis machines, and automated production lines.
Professional technical support and integration services are available to help customers optimize equipment performance and production efficiency.
Frequently Asked Questions
What is a waterjet tile cutting head?
A waterjet tile cutting head is a multi-angle cutting head designed for ceramic tile, porcelain slab, and stone processing applications, allowing bevel cutting and precise angle adjustment.
Can this cutting head process stainless steel?
Yes. It is suitable for stainless steel sheets, decorative panels, fabricated components, and various industrial metal processing applications.
What are the advantages of waterjet cutting for stone slabs?
Waterjet cutting provides smooth edges, high accuracy, no heat damage, and minimal edge chipping, making it ideal for marble, granite, quartz stone, and porcelain slab fabrication.
Can this cutting head be installed on existing CNC Waterjet Machines?
Yes. The cutting head can be integrated with many CNC waterjet systems and ultra-High Pressure Pump configurations.
Related Waterjet Products
5 Axis Waterjet Cutting Head | 3D Waterjet Cutting Head | Ceramic Waterjet Cutting Machine | Stone Waterjet Cutting Machine | High Pressure Waterjet Pump | Waterjet Spare Parts
Why Choose KUNDA Waterjet Components
KUNDA specializes in providing professional Waterjet Cutting Solutions and high-quality spare parts for global customers.
We can supply waterjet tile cutting heads, stainless steel cutting heads, bevel cutting systems, 5-axis Waterjet Heads, dynamic taper compensation systems, high-pressure Intensifier Pumps, Cnc Waterjet Machines, Robotic Waterjet systems, accumulators, high-pressure tubing, spare parts, and customized automation solutions.
With professional technical support, OEM customization services, strict quality control, and fast global delivery, KUNDA helps customers improve cutting precision, reduce operating costs, and maximize production efficiency.
Contact Us
If you are looking for reliable waterjet tile cutting heads, stainless steel waterjet cutting solutions, or customized stone slab processing equipment, please feel free to contact KUNDA for more information and professional support.
