100k Swivel Assembly 1-14444 New Abrasive Waterjet Parts Supplier

Short Description:

100k Swivel Assembly
Minimum Order Quantity: 1
Availability: Yes
90° , 1/4 in
More Questions Contact Us: 86 157 9367 0759 or info@kundacnc.com

INQUIRY

Details

100k Swivel Assembly 1-14444 New Abrasive Waterjet Parts Supplier

Part Number	Replaces Number	Description
1-14178	014388-1	Poppet Seat
1-14179	042101-1	Output Adapter- 90k Check Valve
1-14185	011290-1 \| 019975-1	Low Pressure Hydraulic Cylinder
1-14222		Swivel Adapter Assembly, 4.330 in
1-14444	014922-1	90° Swivel Assembly, 1/4 in., 100k
1-14446-010	041759-10	Ruby Orifice
1-14448	100037-1	H2O Nozzle Body, 5.505 in
1-14493	015093-1	90° Swivel Repair Kit, 1/4 in., 100k
1-14516	B-5330-1	H2O Orifice Retainer
1-14519	014884-1	Inlet Repair Kit (94K)
1-14521	014885-1	Outlet Repair Kit (94K)
1-14522	012035-1	Check Valve Repair Kit (94K)
1-14523	013157-1	Low-pressure Seal Repair Kit (94K)
1-14524	015084-1	Bleed-down Repair Kit, (90K)
1-14525	041136-1	Cutting Head Assembly
1-14540	014559-1	Universal Actuator Assembly
1-14592	B-5910-1	90° Swivel Repair Kit, 1/4 in
1-17528	048198-1	On/off Valve Body (60K)
1-18717	711621-1 \| 040411-1	Nozzle Splash Guard
1-18747	A-12219 \| 72185141	Spring, 352 ID
1-18748	A-12217 \| 72186948	Spring, 362 ID
1-18749	A-00621-33 \| 72185125	Rod Seal
1-18752	A-9223 \| 72185200	Spring, 322 OD
1-18862	011051-1 \| 72185177	Dynamic Seal
1-18865	011042-1 \| 72185133	Inlet Poppet
1-18867	011041-1 \| 72185192	Outlet Poppet Seat
1-18868	011040-1 \| 72185167	Outlet Poppet Guide
1-18869	011039-1 \| 72185185	Outlet Poppet
1-18875	044099-1 \| 72185291	Seal Carrier Assembly
1-18883	011045-1 \| 72186914	Plunger

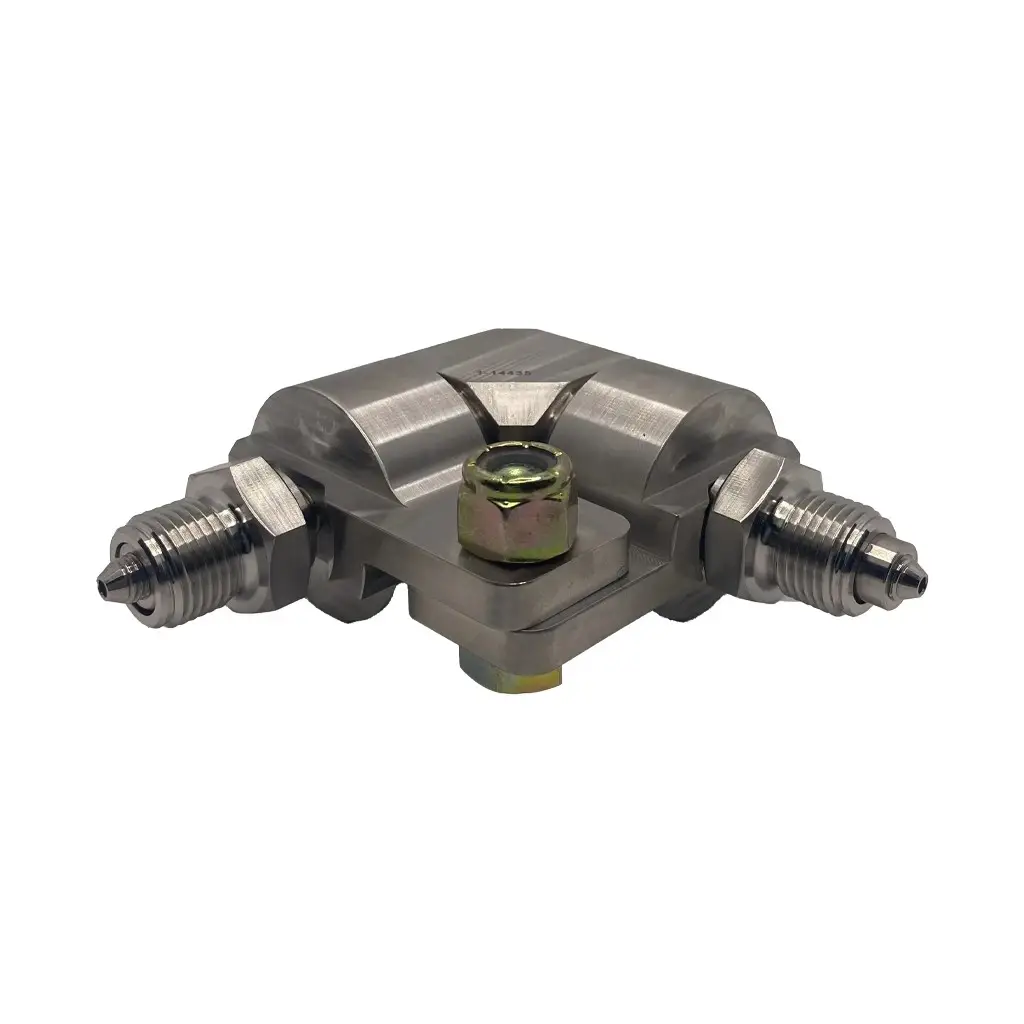

The 100k Swivel Assembly 1-14444 is a precision-engineered component designed for ultra high-pressure Waterjet Cutting Systems operating at pressures up to 100,000 PSI. This swivel assembly provides a secure and flexible connection, allowing the cutting head to rotate smoothly while maintaining a leak-free seal under extreme operating conditions.
Manufactured from premium wear- and corrosion-resistant materials, the 1-14444 waterjet swivel assembly ensures exceptional durability, long service life, and reliable performance. Its robust design minimizes stress on high-pressure tubing, reduces downtime, and helps maintain cutting accuracy in demanding industrial applications.
KUNDA supplies the 100k Swivel Assembly 1-14444 under strict quality standards, guaranteeing compatibility with leading waterJet Pumps, intensifier systems, and cutting heads. By choosing this swivel assembly, operators benefit from enhanced flexibility, consistent water flow, and long-term reliability in ultra high-pressure environments.
