3D Waterjet Cutting Head with Dynamic Taper Compensation

Short Description:

3D Waterjet Cutting Head
A-axis Rotating Range：±70。
C-axis Rotating Range：Infinite
Positioning Precision：1.5’
Max Rotational Speed：50RPM
Cutting precision at fixed point：±0.05mm
Rotating Radius：261mm
Max. Height：607mm
Max. Length：376mm
Max. Width：161mm
High Pressure Tube Inlet Threading：1/4 Inch

INQUIRY

Details

3D Waterjet Cutting Head with Dynamic Taper Compensation

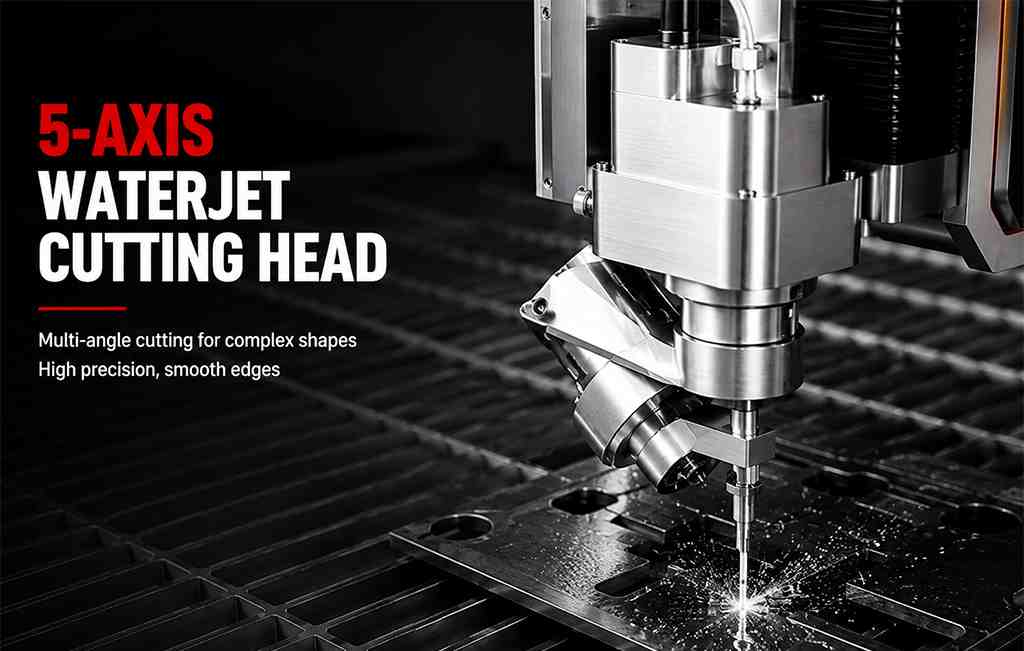

3D Waterjet Cutting Head Ultra High Pressure <a href=https://www.kundacnc.com/3D-Waterjet-Cutting-Head-Ultra-High-Pressure-Dynamic-Taper-Compensation-Waterjet-Cutting-Head-p.html target='_blank'>Dynamic Taper Compensation Waterjet</a> Cutting Head

Product Introduction

The 3D Waterjet Cutting Head is an advanced ultra-high pressure cutting solution designed for precision waterjet cutting applications requiring bevel cutting, angle cutting, complex contour processing, and dynamic taper compensation. Equipped with intelligent multi-axis control technology, this 3D Waterjet Head helps improve cutting accuracy, reduce taper errors, and achieve better edge quality on metal, stone, glass, ceramics, composites, and engineering plastics.

Technical Specifications

A-axis Rotating Range	±70°
C-axis Rotating Range	Infinite
Positioning Precision	1.5'
Max Rotational Speed	50 RPM
Cutting Precision at Fixed Point	±0.05mm
Rotating Radius	261mm
Automatic Height Measurement	Optional
Max. Height	607mm
Max. Length	376mm
Max. Width	161mm
High Pressure Tube Inlet Threading	1/4 Inch

3D Waterjet Cutting Head for Bevel and Angle Cutting

This 3D waterjet cutting head is designed to perform complex three-dimensional cutting tasks that are difficult to achieve with traditional vertical cutting systems. The cutting head can automatically adjust cutting angles during operation, allowing it to process bevels, chamfers, inclined surfaces, and complex contours with high precision.

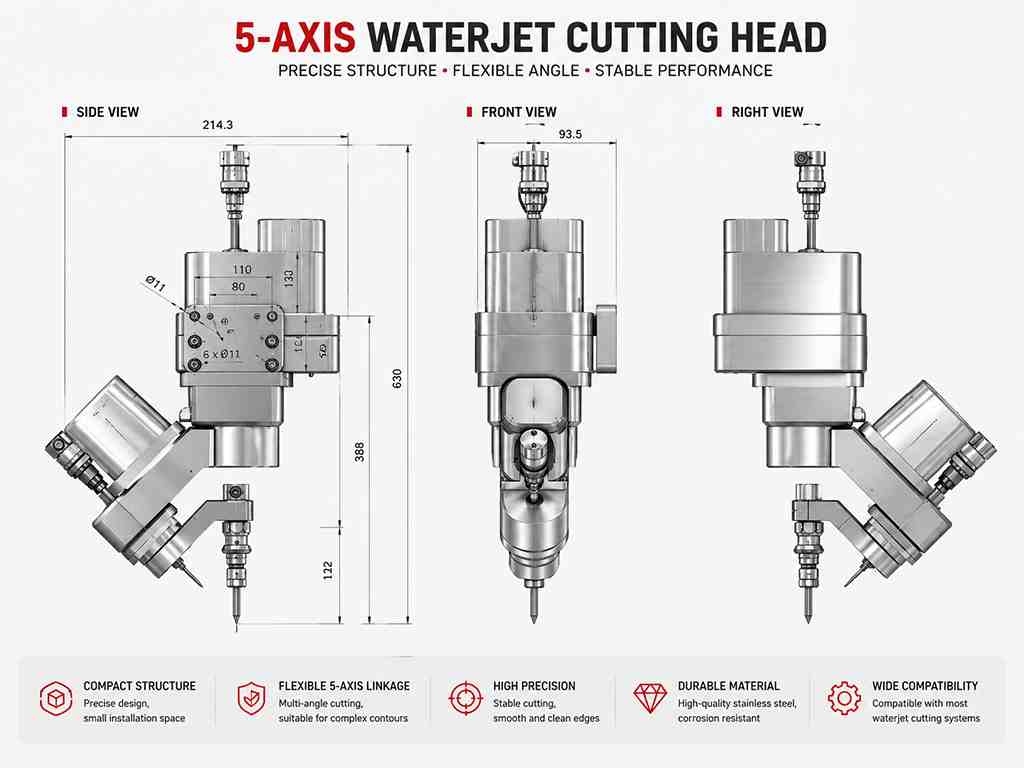

3D Waterjet Cutting Head Ultra High Pressure Dynamic Taper Compensation Waterjet Cutting Head

Dynamic Taper Compensation Waterjet Technology

Dynamic taper compensation is one of the key advantages of this waterjet cutting head. During conventional waterjet cutting, taper can occur as the high-pressure water stream passes through thick materials. This dynamic taper compensation system automatically adjusts the cutting angle to reduce taper effects and produce more accurate edges.

Ultra High Pressure Waterjet Cutting Performance

The Ultra High Pressure Waterjet Cutting Head is designed to work with advanced Waterjet Intensifier pump systems. Combined with abrasive garnet materials, it can efficiently process stainless steel, carbon steel, aluminum, titanium, marble, granite, glass, ceramic tiles, composite materials, and many other industrial materials.

High Precision Multi-Axis Control

This dynamic taper compensation waterjet cutting head can be integrated with 5-axis CNC waterjet systems to achieve highly accurate motion control and flexible cutting performance. The advanced multi-axis capability allows manufacturers to process complex geometries, precision bevels, and customized industrial components with improved cutting accuracy and reduced material waste.

Durable Industrial Design

The 3D waterjet cutting head is manufactured with high-quality components and durable materials to ensure reliable operation under demanding industrial conditions. The robust structure is designed to withstand ultra-high pressure working environments while maintaining stable performance during continuous production.

Applications of 3D Waterjet Cutting Heads

Metal fabrication
Aerospace components
Automotive parts
Stone and marble processing
Glass cutting
Ceramic tile cutting
Composite material manufacturing
Industrial custom fabrication

Compatible with Multiple Waterjet Systems

This ultra high pressure waterjet cutting head can be integrated with various Cnc Waterjet Cutting Machines and high-pressure pump systems. It is suitable for new waterjet installations, equipment upgrades, and customized automation projects. KUNDA can provide integration support, technical guidance, and customized solutions according to different customer requirements.

Frequently Asked Questions

What is a 3D waterjet cutting head?

A 3D waterjet cutting head allows the nozzle to tilt and rotate, enabling bevel cutting, chamfer cutting, angle cutting, and complex 3D contour processing.

What is dynamic taper compensation?

Dynamic taper compensation automatically adjusts the cutting angle to reduce taper and improve edge accuracy during waterjet cutting.

Can this cutting head be installed on existing Waterjet Machines?

Yes. The 3D cutting head can be integrated with many CNC Waterjet Cutting Systems and high-pressure pump systems.

What materials can be cut with a 3D waterjet head?

It can cut stainless steel, aluminum, titanium, stone, marble, granite, glass, ceramic, composites, rubber, and engineering plastics.

Why Choose KUNDA Waterjet Components

KUNDA provides professional Waterjet Cutting Solutions and high-quality waterjet components for global customers. We can supply 3D waterjet cutting heads, dynamic taper compensation systems, high-pressure Intensifier Pumps, abrasive cutting heads, Cnc Waterjet Machines, Robotic Waterjet systems, accumulators, high-pressure tubing, spare parts, and customized automation solutions.

Contact Us

If you are looking for reliable 3D waterjet cutting heads, dynamic taper compensation systems, or customized waterjet cutting solutions, please feel free to contact KUNDA for more information and professional support.
