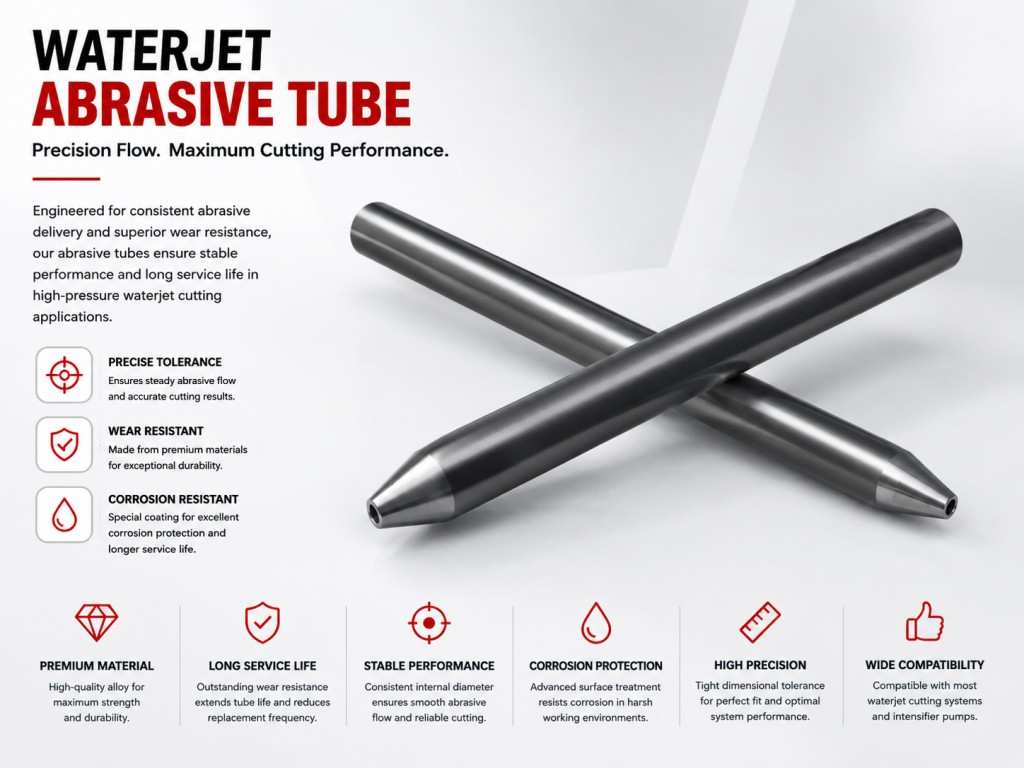

Focusing Nozzle High Efficiency Waterjet Nozzle Mixing Tube Price For Cnc Cutting Machine

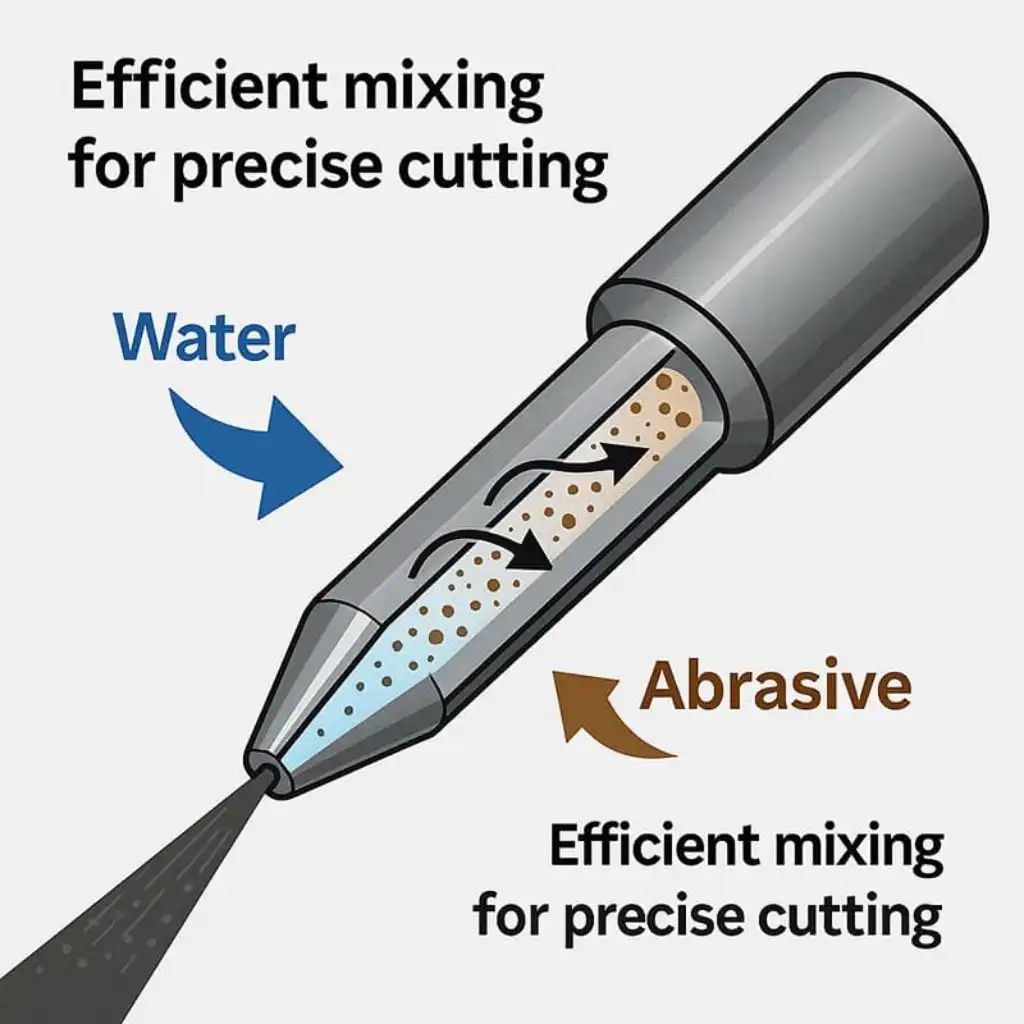

1.02Mm 101.6Mm Focusing Tube (sometimes also called abrasive tube or abrasive tube) is a key consumable component of a Waterjet Cutting Machine. Located within the nozzle assembly, its primary function is to thoroughly mix the high-pressure water flow with the emery and precisely direct the resulting high-speed Abrasive Water Jet to complete the material cutting process.

Outer diameter	Inner diameter	Length
6.35	0.76	76.2
6.35	1.02	76.2
6.35	1.02	101.6
7.14	0.76	76.2
7.14	1.02	76.2
7.14	0.76	101.6
7.14	1.02	101.6
9.47	0.76	76.2
9.47	0.76	101.6

Part Number	Deatils
20457255	Mixing Tube 0.030"
20457256	Mixing Tube 0.040"
20457257	Mixing Tube 0.050"
20457258	Mixing Tube 0.060"
20457259	Mixing Tube 0.070"
100000-1	Mixing Tube 0.030"
100001-1	Mixing Tube 0.040"
100002-1	Mixing Tube 0.050"
100003-1	Mixing Tube 0.060"
303287	Mixing Tube 0.030"
303288	Mixing Tube 0.040"
303289	Mixing Tube 0.050"
303290	Mixing Tube 0.060"
4100601	Mixing Tube 0.030"
4100602	Mixing Tube 0.040"
4100603	Mixing Tube 0.050"
5200601	Mixing Tube
5200602	Mixing Tube
5200603	Mixing Tube

The 1.02Mm Mixing Tube—also known as a focusing tube—is a critical component in abrasive Waterjet Cutting Systems, directly influencing the stability and precision of the cutting process. Its primary function is to uniformly mix the high-pressure water stream with abrasives (such as garnet) and then precisely direct this mixture toward the cutting head to achieve efficient material removal.
These Waterjet Nozzle Tube Price are specifically engineered to withstand extremely high pressures (reaching up to 90,000 PSI) and continuous abrasive erosion, ensuring consistent performance throughout prolonged cutting operations. We utilize high-performance materials—such as tungsten carbide, boron carbide, or zirconium oxide—in their manufacture; this not only enhances wear resistance but also extends service life, thereby reducing the frequency of replacements.
To accommodate diverse brands and application requirements, our Waterjet Tube For Cnc Cutting Machine are compatible with industry-leading Waterjet Equipment from manufacturers such as KMT, FLOW, and OMAX. Available in a wide range of sizes and specifications, they are suitable for diverse cutting environments—including metals, stone, and glass—and are designed to meet the multifaceted processing demands of our users.

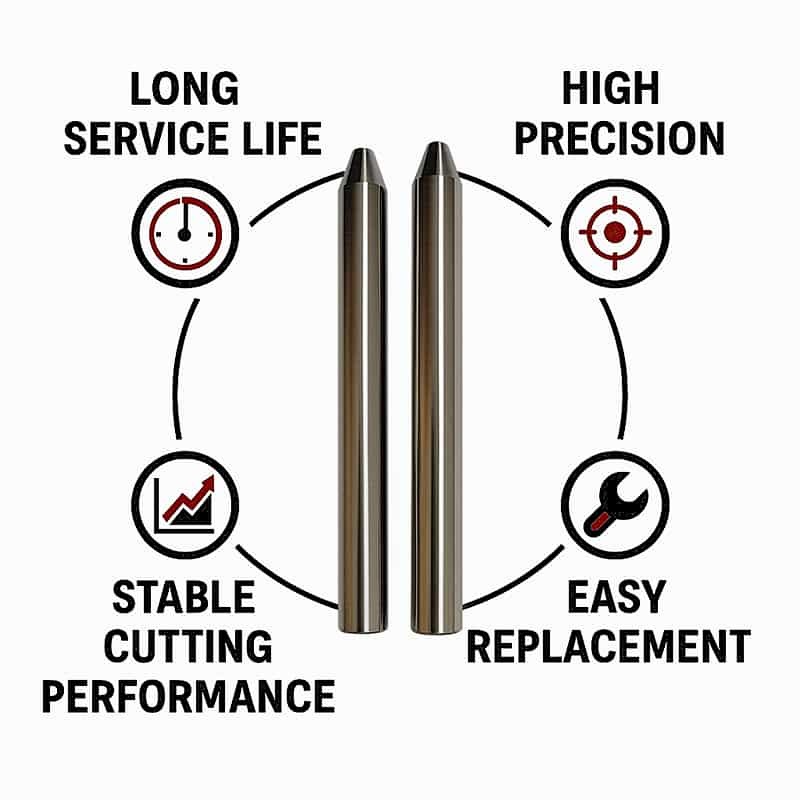

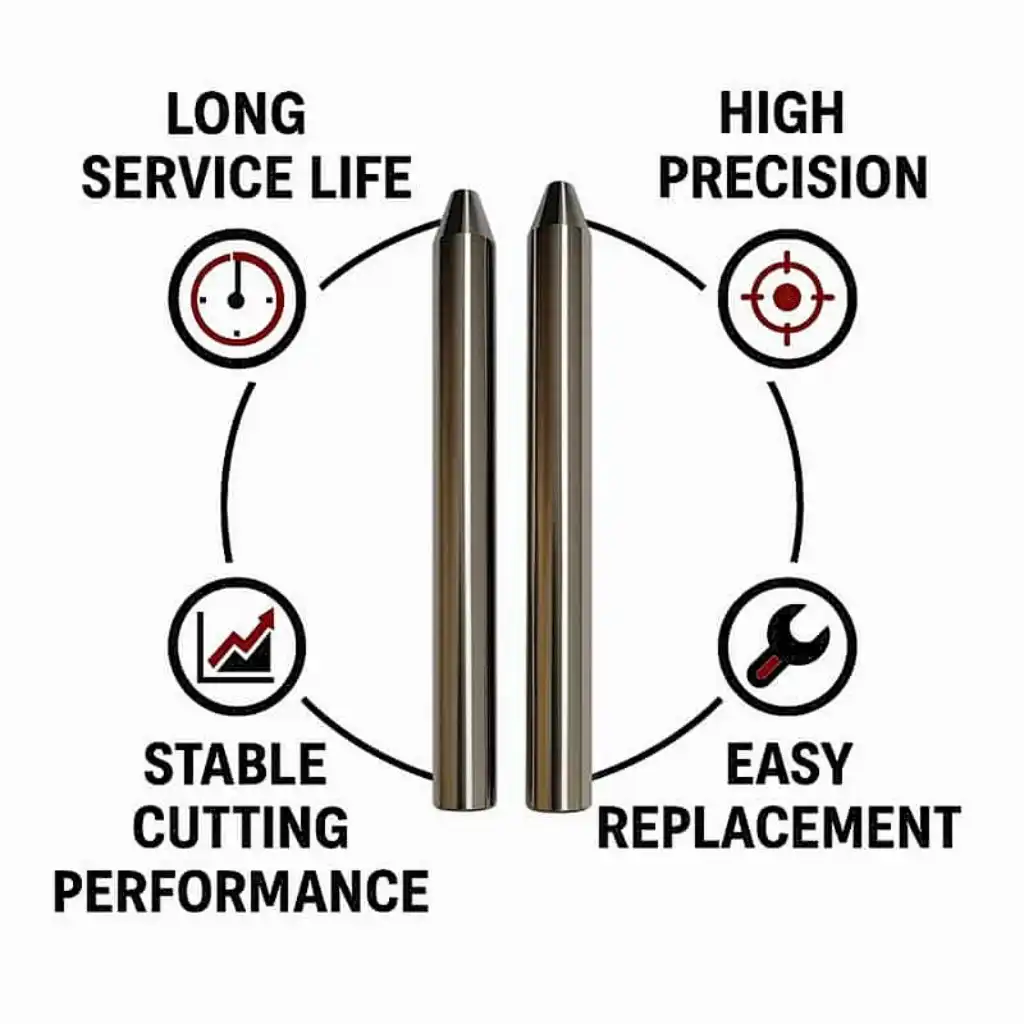

Key Features of Flow Waterjet Focusing Tube:

Precise and Stable Performance
Manufactured to strict tolerance standards, these mixing tubes ensure an accurate and stable mixing ratio between the water stream and abrasives, thereby facilitating finer and more intricate cutting results.

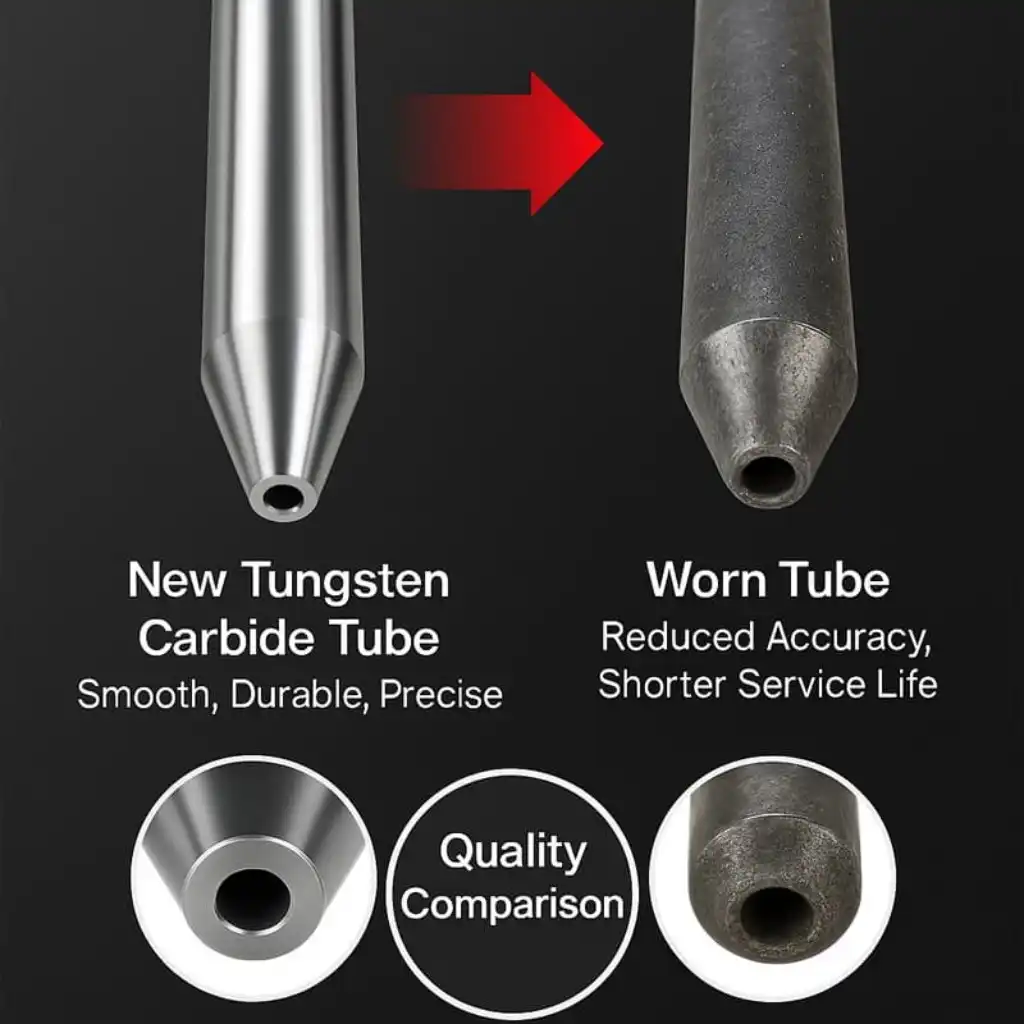

Exceptional Durability via Wear-Resistant Materials
Constructed from highly wear-resistant materials—such as tungsten carbide and boron carbide—the tubes effectively withstand the friction generated by high-pressure water flow and continuous abrasive erosion. This extends the actual service life of the Durable Waterjet Focusing Tube For Stone Cutting and minimizes maintenance requirements.
Broad Equipment Compatibility
Designed with the parameters of mainstream market equipment in mind, these tubes integrate seamlessly with a wide variety of waterjet cutting systems across multiple brands. Users can select from a range of specifications to best suit their specific equipment models and cutting requirements.
Optimized Design for Enhanced Cutting Efficiency
The internal flow channel structure of the mixing tube has been optimized to ensure smooth flow of the water-abrasive mixture, thereby reducing resistance. This not only boosts cutting speed but also helps to minimize material waste.
An Economical and Practical Alternative
Compared to original equipment manufacturer (OEM) parts, our mixing tubes offer a superior value proposition. While priced more affordably, they maintain comparable levels of quality and performance, providing users with a reliable avenue for reducing procurement costs.
Overall, while guaranteeing cutting precision and equipment compatibility, this High Efficiency Abrasive Nozzle leverages wear-resistant materials and an optimized design to provide stable and efficient support for a wide range of cutting operations. It stands as a trustworthy product for professional waterjet application environments.
