Ruby Orifice 1-11238-010 Good Quality Waterjet Cutting Head Parts

Part Number	Replaces Number	Description
1-11228	005917-1 / TL-001016-1	Check Valve Outlet Poppet
1-11229	015384-1 / 010011-1	Inlet Poppet
1-11230	004382-1 / TL-001017-1	Check Valve Insert
1-11231	C-1313-1 / TL-001007-1	Outlet Body
1-11232	010564-1 / TL-001022-1	Inlet Poppet Housing
1-11233	004380-1	Retaining Screw
1-11234	WA1029	Check Valve Spring
1-11238-004	004519-04	Ruby Orifice
1-11238-010	004519-10	Ruby Orifice
1-11238D-010	D-5071-10	Diamond Orifice
1-11281	010641-1 | TL-001006-1	Low-pressure Seal Repair Kit
1-11282	015866-1 | 010642-1 | TL-001004-1 _302003-1	40K, 50K, 60K Check Valve Repair Kit
1-11299	B-1041-1 | TL-002002-1	Nozzle Nut Retainer
1-11309	010253-1 | TL-001005-1 | 100013-1	Ceramic Plunger, .875 in. (60K & 94K)
1-11331	004694-1 | TL-001009-1	Bleed-down Valve Repair Kit
1-11357	009941-1	Retainer Collet
1-11358-4	001995-1 TL-002001-1	Adapter, DiaLine to Flow
1-11358-8	001995-2 / TL-002001-2	Long Nozzle Body, 8.110 in.
1-11365	B-1002-2 | TL-001018-1	60K Backup Seal Sleeve
1-11390	A-1555	Water Filter Cartridge, 1.0 micron, 10 in.
1-11402	A-1449	Water Filter Cartridge, 0.45 micron, 10 in.
1-11420	321276-1 / TL-001010-1	High-pressure End Cap
1-11421	010559-3	Check Valve Assembly
1-11432	007303-1 / TL-001008-1	End Bell, Right
1-11433	007303-2 | TL-001008-2	End Bell, Left
1-11438	007026-1 / TL-001013-1	Hydraulic Piston
1-11447	200006	Food-grade Grease, 5 oz.

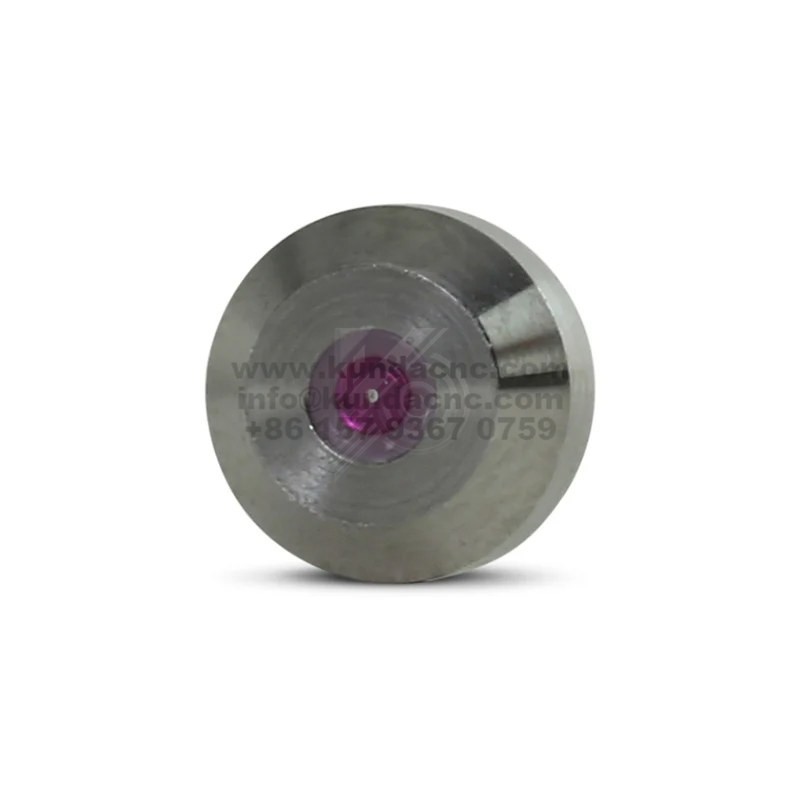

The Ruby Orifice 1-11238-010 is a precision cutting component designed for WaterJet Cutting Machines, high-pressure pumps, and abrasive jet systems. Made from high-grade synthetic ruby, this orifice offers excellent wear resistance, long service life, and consistent jet stream performance under continuous ultra-high-pressure operation.
The 1-11238-010 ruby orifice produces a highly focused water jet stream that ensures precise cutting, stable performance, and efficient use of abrasive materials. Its OEM-level accuracy guarantees a perfect fit, easy installation, and dependable performance in demanding production environments.
Widely used in OEM waterjet assemblies, the Ruby Orifice 1-11238-010 is an essential replacement part that supports cutting precision, system efficiency, and reduced operating costs.

KUNDA is committed to supplying reliable and durable waterjet cutting parts to customers worldwide. Every component, from orifices and focusing tubes to intensifier parts and filters, is manufactured with strict quality standards and premium materials to ensure consistent performance under high pressure. With a full range of parts available, we provide solutions that keep your machines running smoothly and efficiently. At the same time, KUNDA offers competitive pricing without compromising on quality, making us a trusted partner for long-term cooperation in the waterjet industry.
