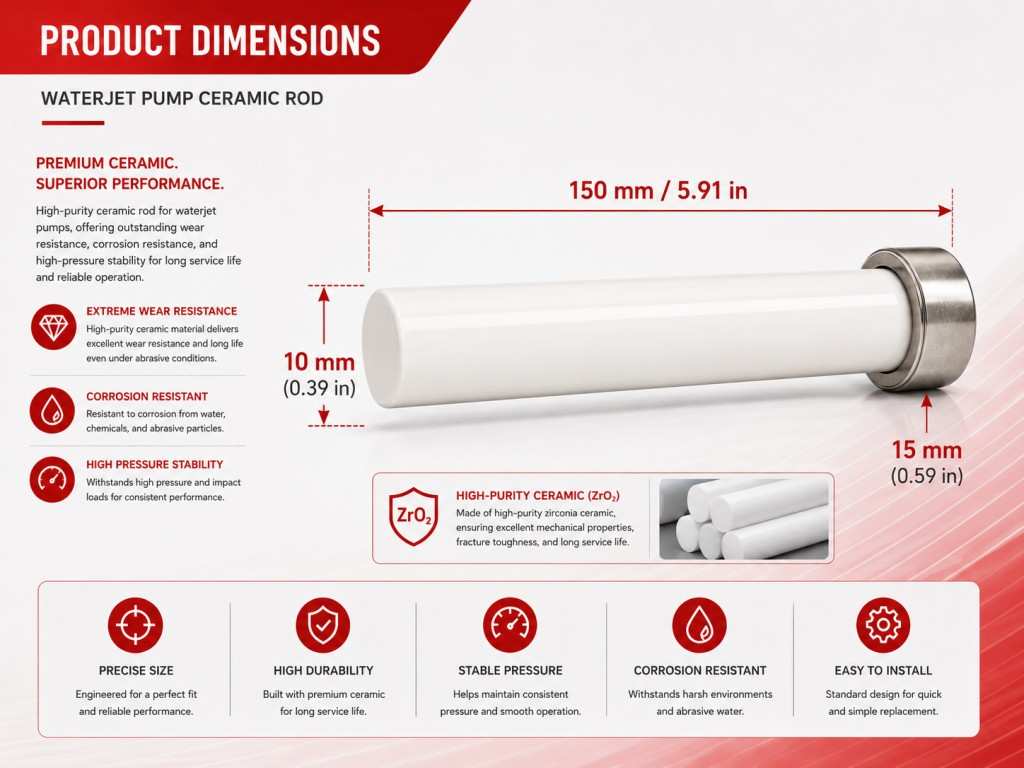

Ceramic Piston Rod Waterjet Pump Ceramic Plunger For Waterjet Machine

Short Description:

Ceramic Piston Rod Waterjet
Diameter: Approximately 6.35 mm to 312.5 mm
Length: Commonly ranges from 10 mm to 200 mm
Tolerance: 0.01 mm to 0.002 mm
Surface Roughness: Ra 0.2 to 0.05 μm
Applicable Pressure: 60,000 psi/90,000 psi
Minimum Order Quantity: 1 piece
Manufacturer: Kunda

INQUIRY

Details

Ceramic Piston Rod And Ceramic Plunger For Waterjet Pump

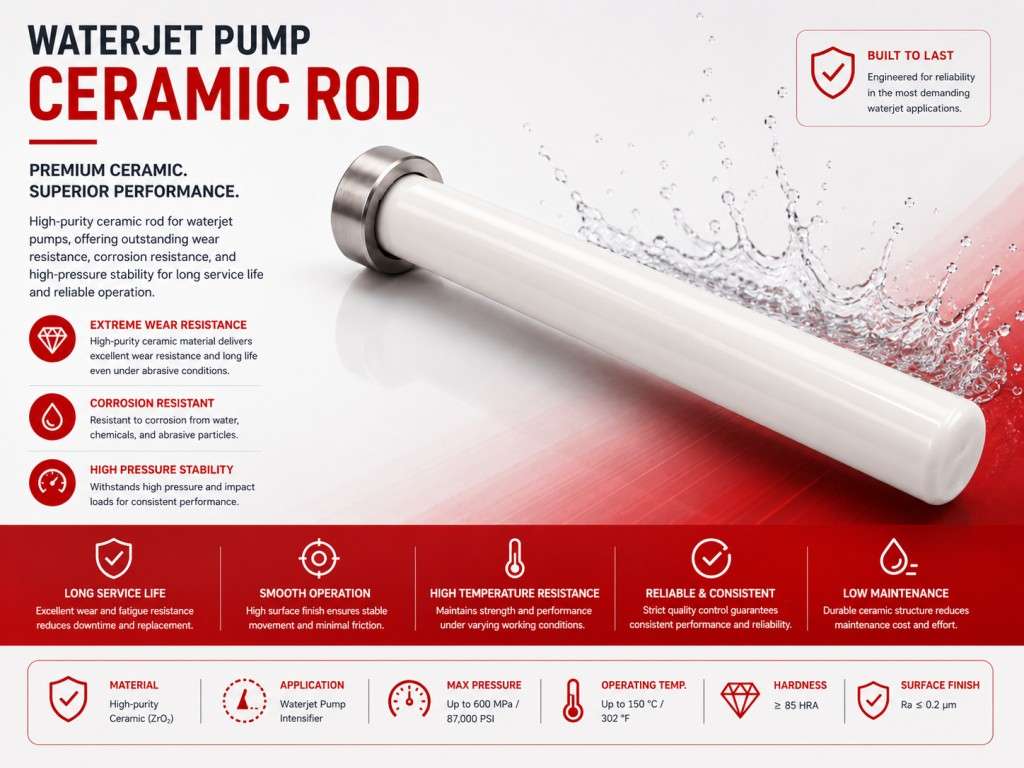

Ceramic Piston Rod Waterjet Pump Ceramic Plunger For <a href=https://www.kundacnc.com/Waterjet-Cutting-System-Granite-Waterjet-Glass-Foam-Cutting-Machine-For-Sale-p.html target='_blank'>Waterjet Machine</a>

Product Introduction

The ceramic piston rod, also called a ceramic plunger, is an important wear part used in Waterjet Intensifier pumps. It moves inside the pump assembly to help generate stable high-pressure water for cutting. A precise ceramic plunger helps improve sealing performance, reduce leakage risk, and support stable pump operation.

KUNDA supplies ceramic plungers, ceramic piston rods, hydraulic cylinders, seal kits, and other Intensifier Pump replacement parts for waterjet machines. Custom dimensions, OEM supply, private label service, and bulk orders are available.

Technical Parameters

Parameter	Typical Range / Value	Description
Material	Al₂O₃, ZrO₂, Si₃N₄, SiC	Different ceramic materials are available
Density	5.9–6.05 g/cm³	Depends on material type
Hardness	15–19 GPa / Mohs 8–9	High wear resistance
Compressive Strength	1500–4000 MPa	Suitable for high-pressure applications
Flexural Strength	About 1200 MPa for ZrO₂	Helps resist mechanical stress
Fracture Toughness	About 10 MPa·m¹ᐟ² for ZrO₂	Helps resist cracking
Thermal Expansion	7–10.5 × 10⁻⁶/K	Good thermal stability
Surface Roughness	Ra 0.05–0.2 μm	Supports sealing performance
Dimensional Accuracy	Accuracy up to 0.001 mm; tolerance 0.01–0.002 mm	For matching with pump cylinders
Size Range	6.35–312.5 mm diameter; 10–200 mm length	Custom sizes available
Working Pressure	55,000–90,000 psi	Suitable for high-pressure Waterjet Pumps

For Water Jet Pump Systems

This ceramic plunger is suitable for ultra-High Pressure Waterjet Pump systems. Accurate grinding and polishing help the plunger move smoothly, reduce friction with seals, and maintain stable pressure output during continuous cutting work.

Ceramic Material Advantage

Ceramic material offers strong wear resistance and good corrosion resistance. Compared with some metal components, a ceramic plunger can keep a smoother surface for longer use, helping reduce seal wear and maintenance frequency.

Precision Surface Finish

Surface finish is important for sealing performance. A smooth ceramic surface helps reduce leakage risk, improves hydraulic efficiency, and supports longer service life for both the plunger and the related sealing parts.

Replacement And Maintenance Use

These ceramic piston rods can be used for routine maintenance, pump rebuilding, emergency replacement, OEM production, and equipment repair. Customers can send machine model, pump type, current part number, sample, or drawing for replacement confirmation.

OEM And Custom Supply

KUNDA can provide different ceramic materials, dimensions, surface finishes, and specifications according to customer requirements. Custom packaging, private label service, OEM manufacturing, and bulk supply are available.

Ceramic Piston Rod Waterjet Pump Ceramic Plunger For Waterjet Machine

Why Choose KUNDA

KUNDA supplies Waterjet Cutting Machines, intensifier pump parts, ceramic plungers, ceramic piston rods, hydraulic cylinders, seal kits, accumulators, cutting head parts, orifices, Mixing Tubes, Focusing Tubes, high-pressure tubing, and other waterjet spare parts. We help customers choose suitable replacement parts, reduce downtime, and keep waterjet systems running smoothly.
