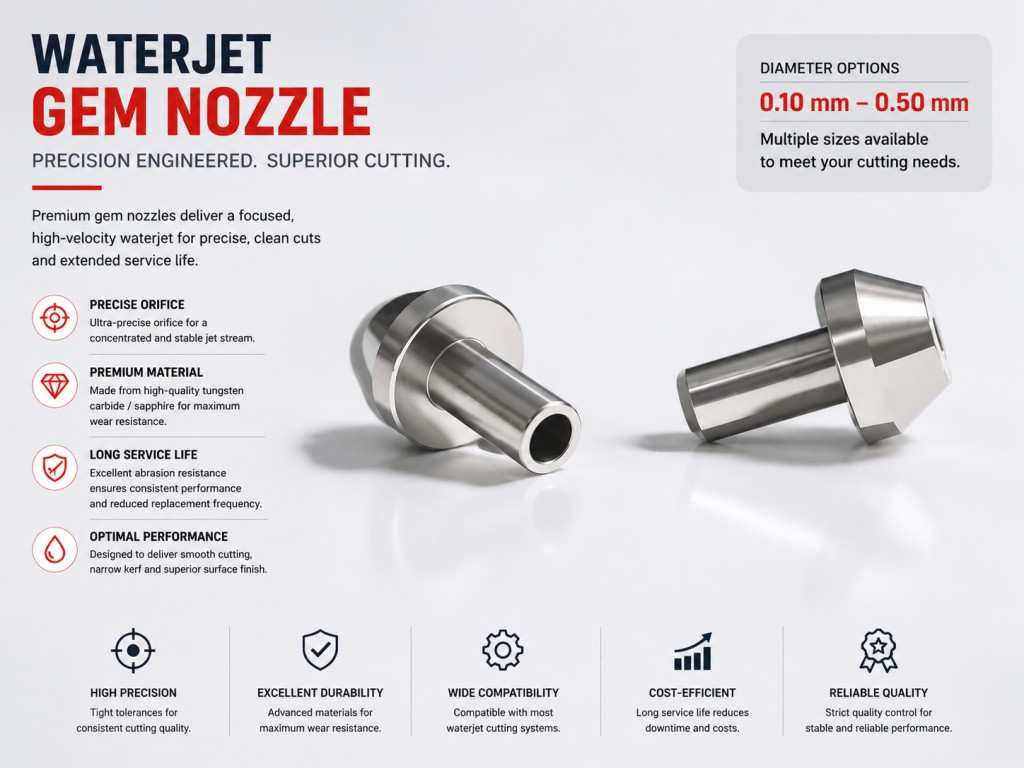

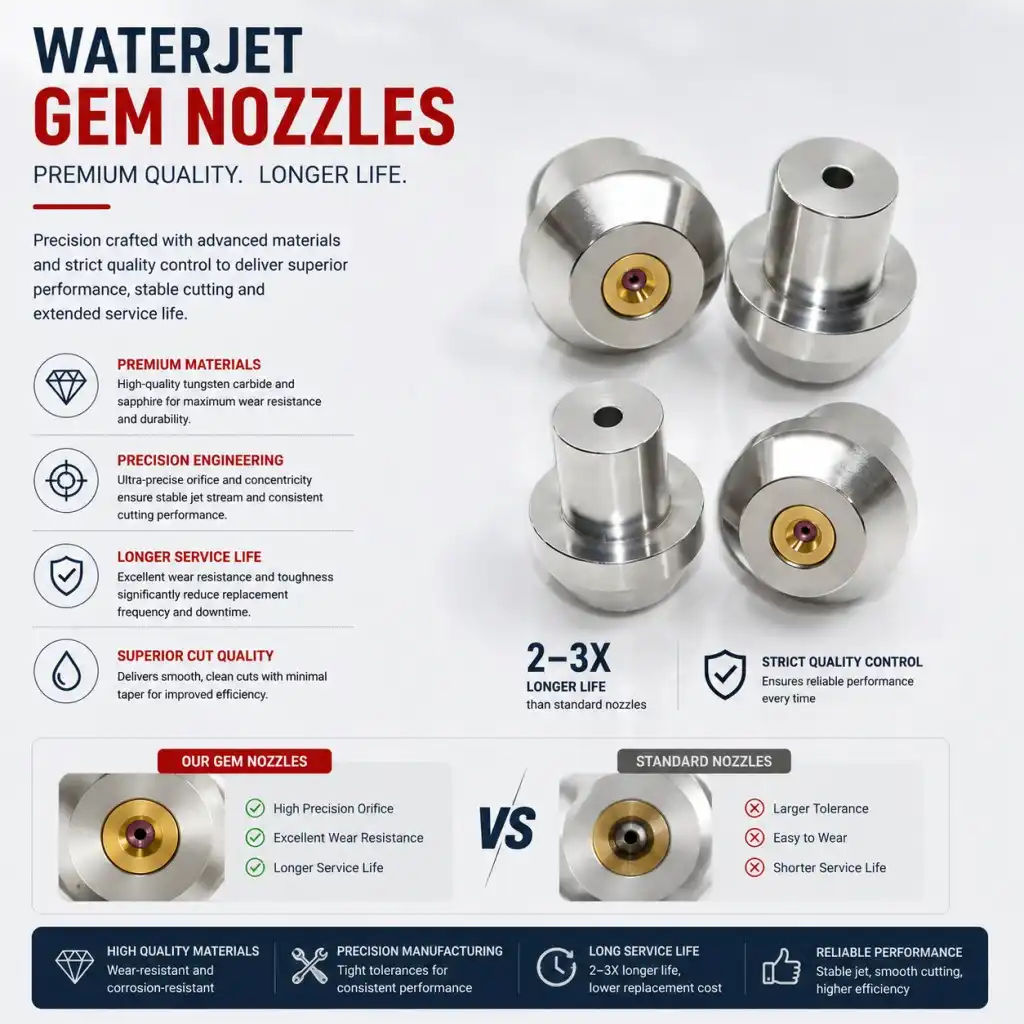

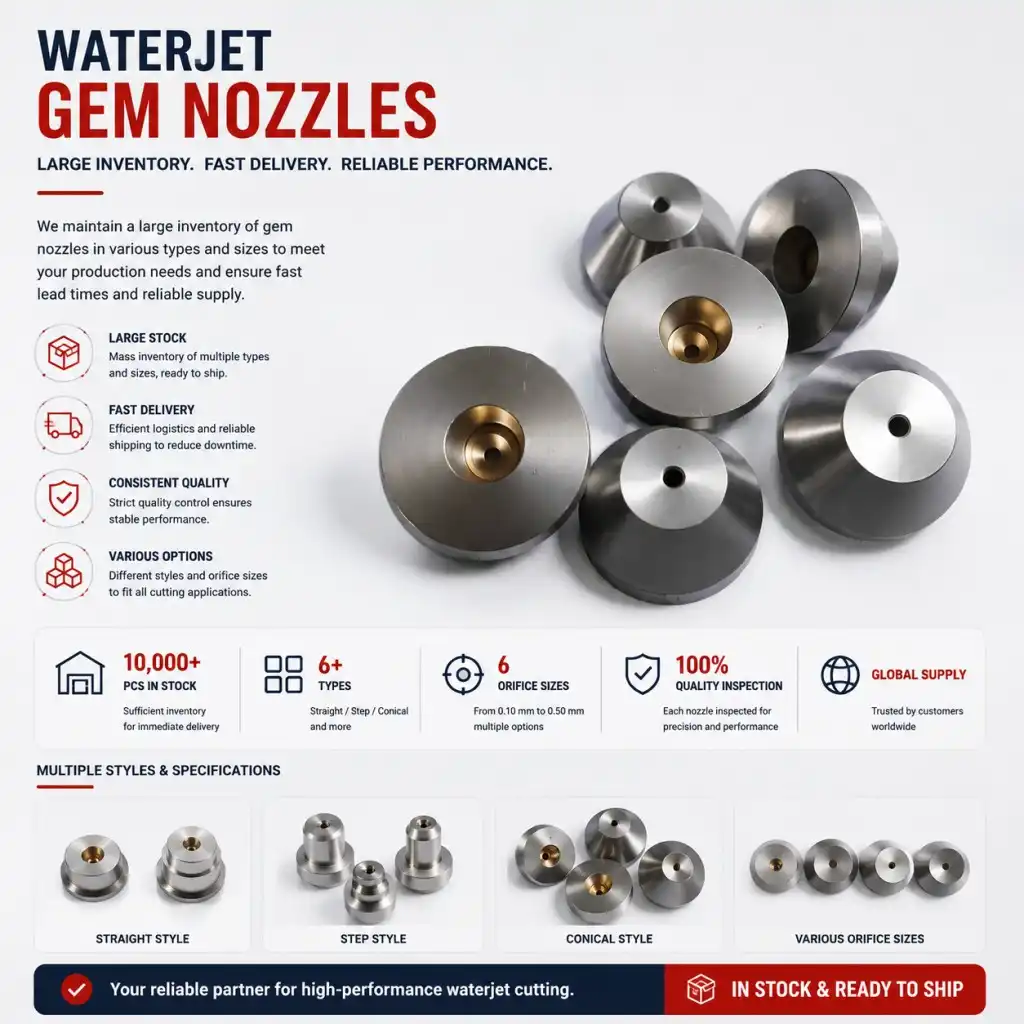

Ceramic Waterjet Orifice Waterjet Jewel Orifice For Glass Cutting Machine

Product Introduction

The Ceramic Waterjet Orifice is a precision waterjet jewel component designed for ultra-high pressure Waterjet Cutting Systems and glass cutting machines.

It converts ultra-high pressure water into a focused cutting stream, helping improve cutting accuracy, edge quality, and overall waterjet system performance.

KUNDA supplies sapphire, ruby, and Diamond Waterjet Orifices in multiple sizes for glass cutting, ceramic processing, stone fabrication, metal cutting, and Industrial Waterjet applications.

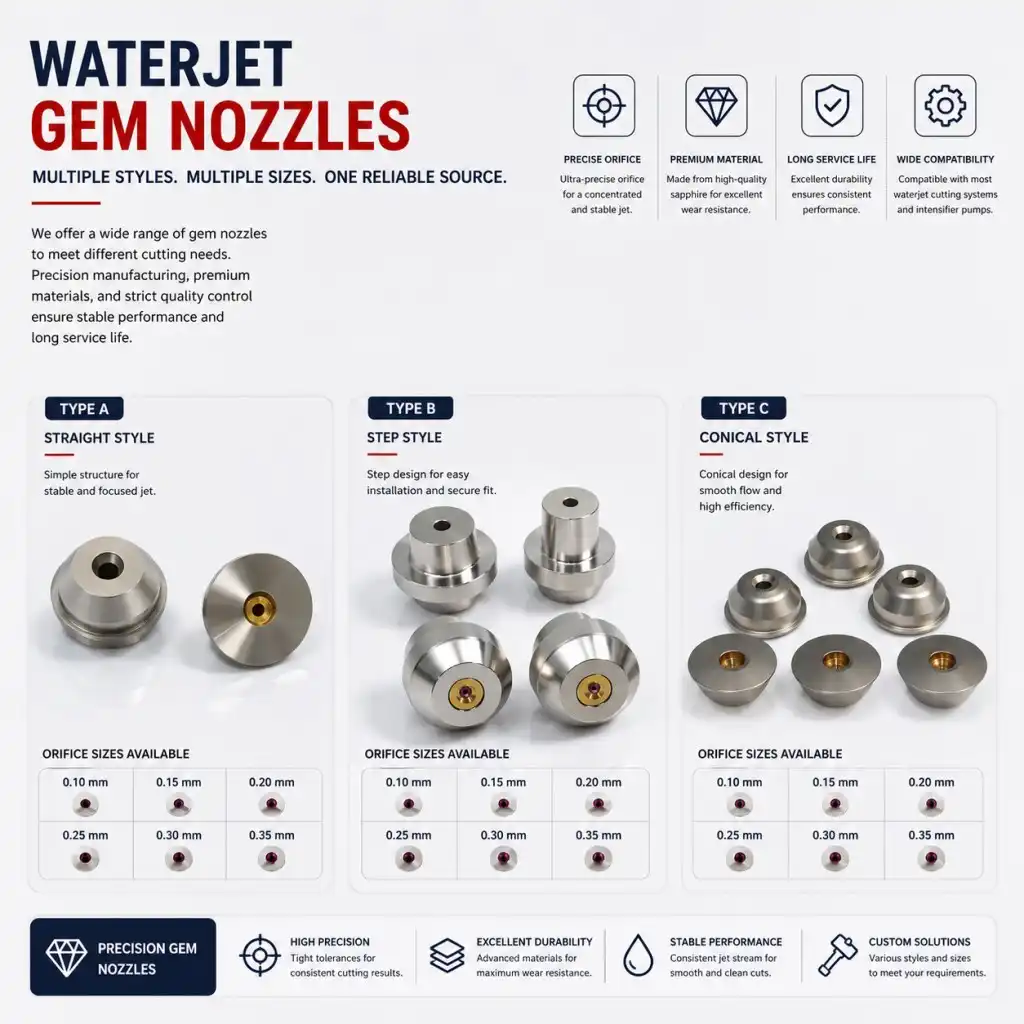

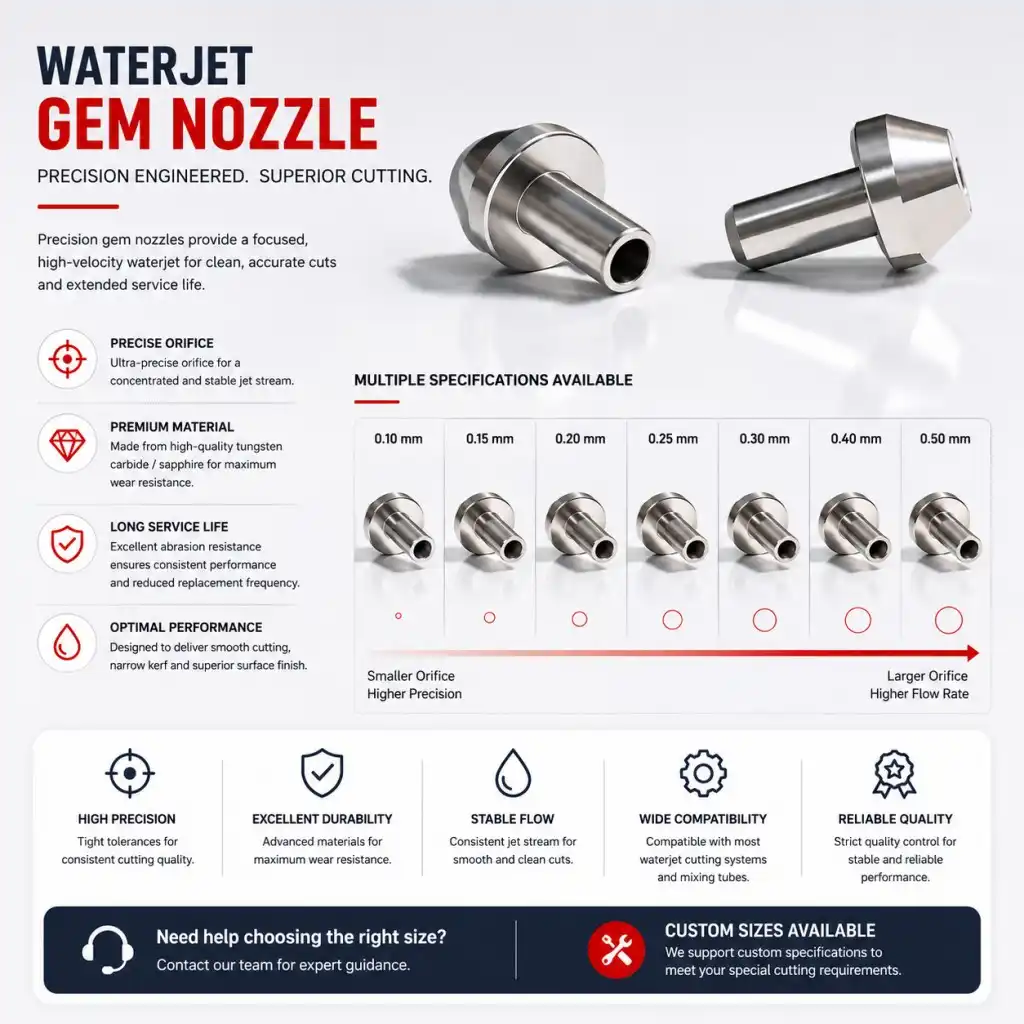

Waterjet Orifice Size And Part Number Options

Part Number	Material	Orifice Size (mm)	Part Number	Material	Orifice Size (mm)	Part Number	Material	Orifice Size (mm)
A2260003	Sapphire	0.076	A2260004	Sapphire	0.102	015849-5	Diamond	0.127
A2260005	Sapphire	0.127	A2260006	Sapphire	0.152	003788-007	Sapphire	0.178
A2260007	Sapphire	0.178	A2260008	Sapphire	0.203	003788-008	Sapphire	0.203
A2260010	Sapphire	0.254	A2260011	Sapphire	0.279	304352-05	Sapphire	0.127
A2260012	Sapphire	0.305	A2260015	Sapphire	0.381	305322-13	Sapphire	0.330
A2260016	Sapphire	0.406	A2260020	Sapphire	0.508	305322-14	Sapphire	0.356
49888852	Diamond	0.076	49888860	Diamond	0.102	305322-15	Diamond	0.381
49888878	Diamond	0.127	49888886	Diamond	0.152	304352-16	Sapphire	0.406
49888894	Diamond	0.178	49888902	Diamond	0.203	304352-20	Sapphire	0.508
49888910	Diamond	0.229	49888928	Diamond	0.254	305322-07	Diamond	0.178
49888936	Diamond	0.305	49888951	Diamond	0.381	305322-10	Diamond	0.254
49836786	Diamond	0.330	49888969	Diamond	0.406	305322-12	Diamond	0.305
49888944	Diamond	0.356	49888977	Diamond	0.457	305322-20	Diamond	0.508
49888985	Diamond	0.508	05112537	Diamond	0.203	305322-22	Diamond	0.559
49888993	Diamond	0.559	05084504	Diamond	0.229	014201-013	Ruby	0.330
20448625	Diamond	0.102	05077029	Diamond	0.254	014201-010	Ruby	0.254
05063847	Diamond	0.178	05101753	Diamond	0.279	015849-10	Diamond	0.254
05077300	Diamond	0.305	05114897	Diamond	0.508	015849-13	Diamond	0.330
05136098	Diamond	0.330	20481407	Diamond	0.170	015849-14	Diamond	0.356
05077037	Diamond	0.356	20481408	Diamond	0.200	015849-15	Diamond	0.381
05121512	Diamond	0.406	20481409	Diamond	0.230	304352-10	Sapphire	0.254
05114905	Diamond	0.457	20481410	Diamond	0.250	304352-11	Sapphire	0.279
80086663	Diamond	0.482	20481411	Diamond	0.280	304352-12	Sapphire	0.305
20481413	Diamond	0.330	20481412	Diamond	0.300	304352-13	Sapphire	0.330
20481414	Diamond	0.350	20477959007	Diamond	0.170	304352-14	Sapphire	0.356
20481415	Diamond	0.380	20477959008	Diamond	0.200	304352-15	Sapphire	0.381
20481416	Diamond	0.400	20477959009	Diamond	0.230	20477959013	Diamond	0.330
20481418	Diamond	0.460	20477959010	Diamond	0.250	20477959014	Diamond	0.350
20477959011	Diamond	0.280	20477950008	Diamond	0.200	20477959016	Diamond	0.400
20477959012	Diamond	0.300	20477950009	Diamond	0.230	20477959018	Diamond	0.460
20477950010	Diamond	0.250	20477950013	Diamond	0.330	20477950007	Diamond	0.170
20477950011	Diamond	0.280	20477950014	Diamond	0.350	20477950016	Diamond	0.400
20477950012	Diamond	0.300	041759-010	Ruby	0.254	20477950018	Diamond	0.460
041759-012	Ruby	0.305	304352-07	Sapphire	0.178	041759-013	Ruby	0.330

Precision Water Flow Technology

The ceramic waterjet orifice is designed to precisely focus and control ultra-high pressure water before it enters the mixing chamber or cutting nozzle.

The accuracy of the orifice directly affects cutting quality, water stream stability, abrasive mixing efficiency, and overall system performance.

Ideal For Glass Cutting Applications

This waterjet jewel orifice is suitable for glass cutting machines and precision glass processing applications.

It helps process architectural glass, decorative glass, laminated glass, automotive glass, and specialty glass products with smooth edges and accurate cutting results.

Because waterjet cutting is a cold-cutting process, it helps prevent cracks, edge chipping, thermal stress, and material deformation.

High Wear Resistance And Long Service Life

Manufactured using premium jewel materials, including sapphire, ruby, and diamond, the ceramic waterjet orifice offers excellent wear resistance under continuous ultra-high pressure operation.

Longer service life reduces replacement frequency, minimizes machine downtime, and lowers overall maintenance costs for waterjet system operators.

Cost-Effective Replacement Solution

As a professional Waterjet Orifice Supplier, KUNDA provides high-quality replacement orifices with stable performance and competitive pricing.

These ceramic waterjet orifices are suitable for routine replacement, inventory stocking, OEM projects, and large-volume industrial use.

Compatible With Various Waterjet Systems

This waterjet jewel orifice can be used with Abrasive Waterjet Cutting Machines, pure waterjet systems, glass cutting equipment, stone processing machines, ceramic cutting systems, and industrial manufacturing applications.

KUNDA can provide multiple specifications and customized solutions according to customer requirements, machine models, and cutting applications.

Applications

• Glass Cutting
• Architectural Glass Processing
• Decorative Glass Manufacturing
• Ceramic Tile Cutting
• Stone Processing
• Composite Material Cutting
• Metal Fabrication
• Industrial Waterjet Cutting

Frequently Asked Questions

What is a ceramic waterjet orifice?

A ceramic waterjet orifice is a precision jewel component that converts ultra-high pressure water into a concentrated cutting stream used in waterjet cutting systems.

What materials are available for waterjet orifices?

KUNDA supplies sapphire, ruby, and diamond waterjet orifices to meet different cutting requirements, operating pressures, and service life expectations.

Why is the waterjet orifice important?

The waterjet orifice directly affects water stream quality, cutting accuracy, abrasive efficiency, and overall cutting performance.

How long does a waterjet jewel orifice last?

Service life depends on water quality, operating pressure, usage frequency, and material type. Diamond orifices generally provide the longest service life.

Can you provide Oem Waterjet Orifices?

Yes. KUNDA provides OEM and aftermarket Replacement Waterjet Orifices compatible with many major waterjet cutting systems.

Related Waterjet Parts

Waterjet Mixing Tube | Waterjet Nozzle Tube | Waterjet Cutting Head | Waterjet Intensifier Parts | Waterjet Pump Parts | Waterjet Spare Parts

Why Choose KUNDA Waterjet Parts

KUNDA supplies ceramic waterjet orifices, ruby orifices, sapphire orifices, diamond orifices, mixing tubes, Focusing Tubes, cutting heads, high-pressure pump parts, accumulators, high-pressure tubing, and complete waterjet system components.

With professional technical support, OEM customization services, strict quality control, and fast global delivery, KUNDA helps customers improve cutting performance, reduce maintenance costs, and maximize production efficiency.

Contact Us

If you are looking for reliable ceramic waterjet orifices, waterjet jewel components, or wholesale waterjet consumables, please contact KUNDA for product details and quotation support.
