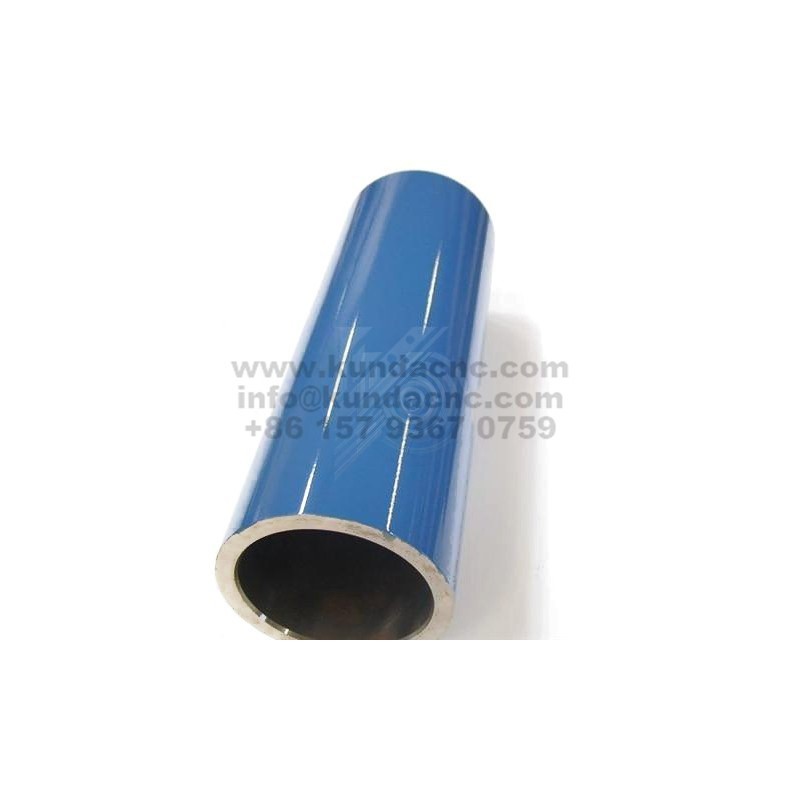

Hydraulic Cylinder WS1002 Waterjet WS Intensifier Parts

The Hydraulic Cylinder WS1002 is a core structural component of high-pressure Waterjet Intensifier Pumps, responsible for converting hydraulic energy into mechanical motion that drives the high-pressure plunger. As part of the intensifier’s hydraulic assembly, this cylinder houses the hydraulic piston (WS1031) and ensures smooth, controlled reciprocating movement under extreme operating pressures up to 94,000 psi (6,480 bar).

Manufactured from high-strength alloy steel or hardened stainless steel, the WS1002 hydraulic cylinder delivers outstanding resistance to fatigue, corrosion, and pressure-induced deformation. Each unit is CNC-machined to micron-level tolerances, ensuring perfect alignment with the piston, seals, and bushings. The cylinder’s internal bore is precision-honed and polished to provide a low-friction surface, improving sealing performance and extending the life of components such as the Hydraulic Seal WS1009, Cylinder Seal WS1012, and Wear Band WS1004.

The Hydraulic Cylinder WS1002 is fully compatible with major waterjet systems, including KMT, FLOW, OMAX, WSI, BFT, and BHDT, offering OEM-level quality and direct interchangeability. Its robust construction and precise engineering guarantee stable hydraulic pressure, smooth intensifier motion, and reliable long-term performance in demanding industrial cutting environments.
